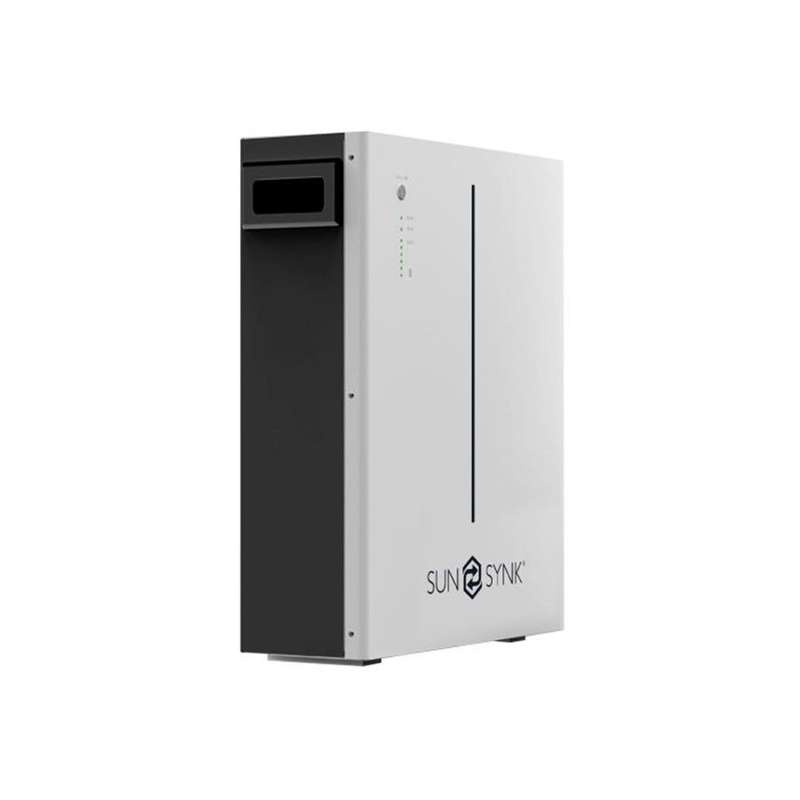

The Sunsynk Battery LFP 10.65kWh 51.2V is made up of Lithium Ion phosphate rechargeable batteries rated at 51.2V with 10.65kWh capacity. In addition, the unit has a built-in battery management system to ensure optimal performance at all times.
Colour: | White |
Mounting Type: | Floor stand or Wall mounted |
Battery Scalability: | Max 8 batteries in parallel |
Battery Type: | LiFePO4Lithium Iron Phosphate |
Battery Capacity: | 208Ah |
Battery Energy: | 10650Wh |
Cycle Life @ 100% / 80% / 50% DoD: | 6000 Cycles @ 80% DOD / 25 / 0.5C60% EOL |
Display: |
|
Communication Method: |
|
Charge Power (Max.): | 10000W |
Charge Voltage: | 55.68~56.16Vdc |
Discharge Voltage: | 45.6-56.16 Vdc |
Charge Current (Max.): | 200A |
Discharge Current (Max.): | 200A |
Nominal Voltage: | 51.2 Vdc |
Short Circuit Current: | 540A |
Height: | 836mm |
Width: | 550mm |
Depth: | 160mm |
Operating Temperature: | -20 ~ 60 |
Storage Temperature: |
|
IP Rating: | IP20 |
Weight: | 90kg |
Technical Document: | Download |
