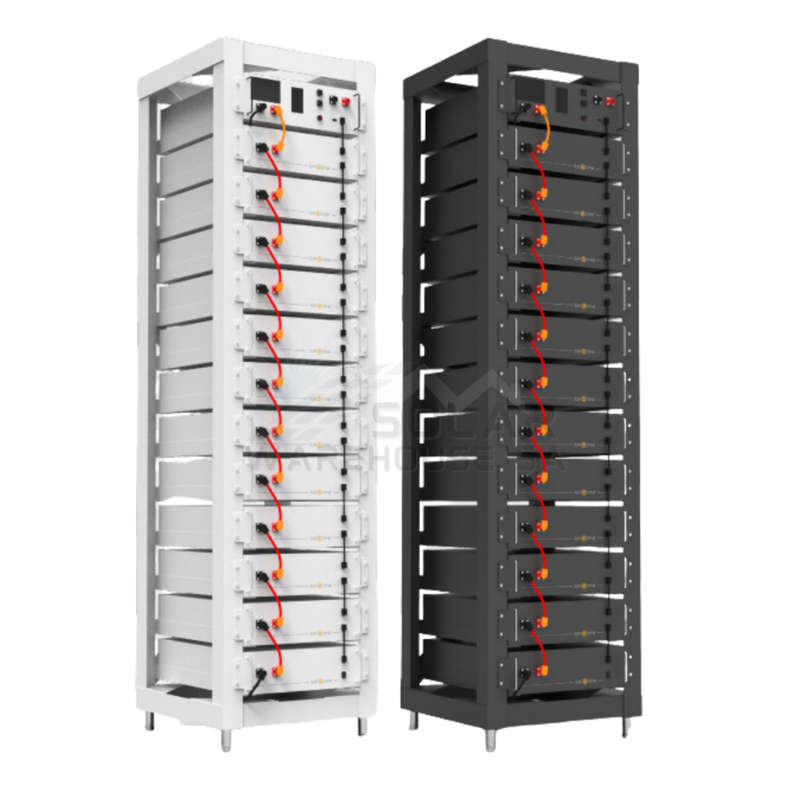

SunSynk HV Battery 61,4kWh (12x units + Cabinet+BMS)
ONLINE DEAL ONLY CAN BE ORDERED FOR IN STORE COLLECTION IF NEEDED
High Voltage Series Battery is a high-voltage lithium-ion battery system. It provides a reliable backup power supply for supermarkets, banks, schools, farms and small factories to smooth the load curve and achieve peak load transfer. It can also improve the stability of renewable systems and promote the application of renewable energy.
It is characterized by high integration, good reliability, long service life, wide working temperature range, etc. The battery energy storage system is modular. Each battery module boasts a capacity of 5.12 kWh. The complete system supports 12 battery modules in series, Its total energy can be expanded from 15.36 kWh to 61.44 kWh.

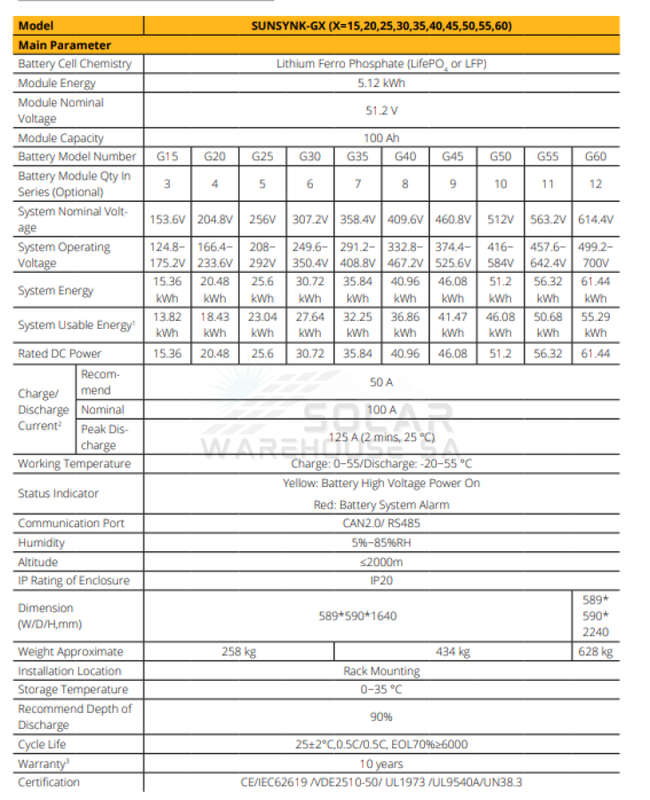

Perfomance
| Battery System Energy (3~12 batt modules) | 15.36~61.44 kWh |
| Charge/Discharge Rate (Max) | 1C |
| Max Charge / Discharge Current | 100A |
| Module Capacity | 100Ah |
| Working Voltage | 538~691 V |
| Working Temperature | Charge: 0~55 ºC / Discharge: -20~55 ºC |
Compatible Inverter Brand:
50K-SG01HP3-EU-BM4
