DUE TO THE WEIGHT AND SIZE OF THE PRODUCTS WE ARE GOING TO SEND YOU A QUOTE ON SHIPPING BASED ON YOUR AREA AND SIZE OF THE ORDER

A fully plug-and-play system that simplifies and speeds up the installation, allowing for more efficient planning and implementation on large volume rollouts in new house builds or retrofits.

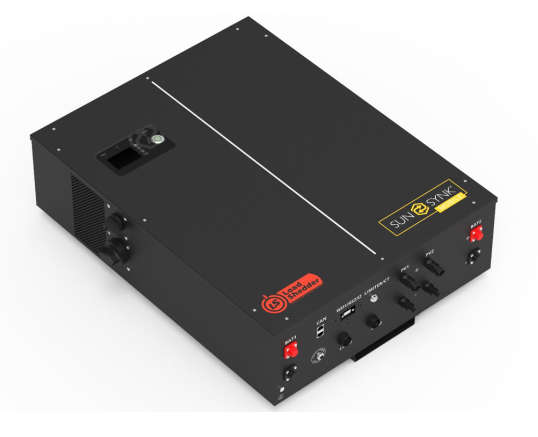

The Loadshedder 4 houses a 3.6kW hybrid inverter, 3.6kWh LiFePO4 battery and a 4.5kW MPPT whereas the meet most energy requirements.

Unlock the full potential with our dedicated Sunsynk Connect platform which enables full control, visibility, and access to the system, making site-specific customization simple.

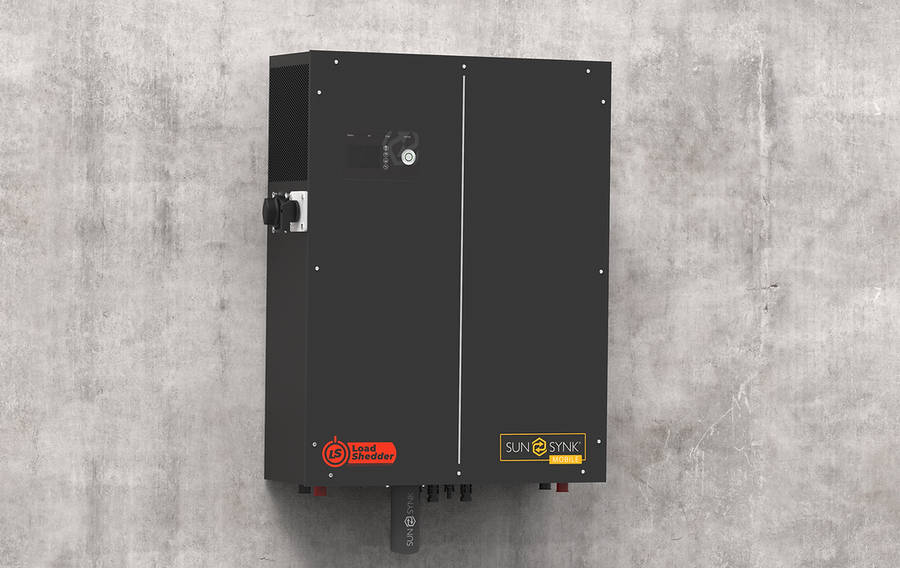

The Loadshedder comes complete with everything you need to install this cutting-edge storage solution. In-built connection points on the bottom of the Loadshedder give access to the Load, Grid, CT, and Wi-Fi Data logger ports, making it a true "plug and play" system, the simple wall mount bracket makes for easy installation. From the pre-set factory settings to the in-built connection ports, the Loadshedder has been designed with convenience and hassle-free installation in mind.

Model:

• Loadshedder 2

Battery Input Parameters:

• Supported Battery Type: LiFePO4
• Nominal Battery Voltage (V): 51.2
• Battery Input Voltage Range (V): 43.2-57.6
• Max. Charge Voltage (V): 60 (Configurable)
• Max. Charge Current (A): 42 (Configurable)
• Max Discharge Current (A): 56 (Configurable)
• Battery Capacity (Wh): 2000

PV String Input Parameters:

• Max. DC Input Power (W): 3000

• Max. DC Input Voltage (V): 500

• MPPT Voltage Range (V): 120-450
• Start-Up Voltage (V): 150
• Max. Input Current (A): 12 x 2

AC Output Parameters (Back-Up) (Feed to Essential Load)

• Max. Output Power (W): 2500
• Max. Output Apparent Power (VA): 2500
• Peak Output Apparent Power (VA): 5000
• Max. Output Current (A): 11
• Nominal Output Voltage (Vac): 230
• Nominal Output Frenquency (Hz): 50
• Max. Bypass Current (A): 20
• Shift Time (Bypass and Inverter) (ms): 10
• Output THD (Resistor Load): <3%

AC Input Parameter (On-Grid)

• Max. Input Power (W): 2500
• Max. Output Power (W) (Feed to Home Load): 2500
• Max. Apparent Input Power (VA): 2500
• Max. Apparent Output Power (VA): 2500
• Nominal Input / Output Voltage (Vac): 230
• Nominal Input / Output Frequency (Hz): 50
• Max. Bypass Current (A): 20
• Shift Time (Bypass and Inverter) (ms): 10

Dimensions:

• Size (Hx L x W mm): 700.6 x 543.6 x 100.7
• Net Weight: 36kg

Warranty:

5 Years T's & C's Apply.

DOWNLOAD THE SPEC SHEET HERE
