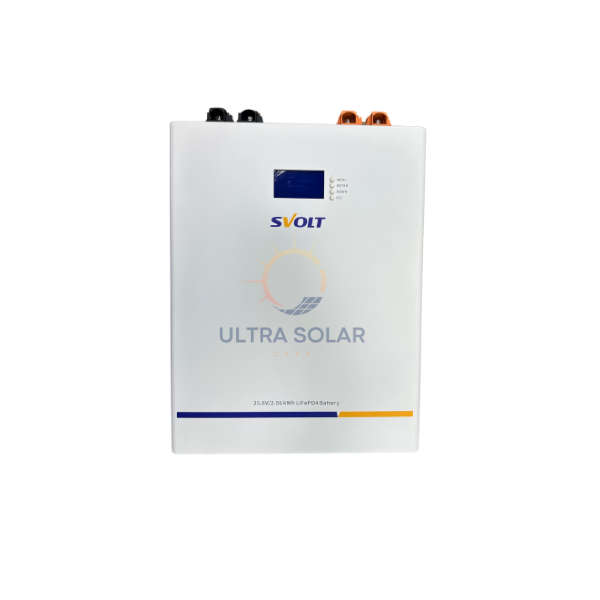

SVOLT 24V 100Ah 2.56 kWh A-Grade Lithium Battery With BMS SCNN256100 (XEA25B)

SVOLT 24V 100Ah Lithium Battery - 2.56kWh Energy Storage Solution with A-Grade LiFePO4 Cells

The Svolt 24V 100Ah Lithium Battery is an advanced 2.56kWh lithium battery engineered with A-Grade LiFePO4 cells for superior performance and longevity. This 24V 100Ah lithium battery is perfect for residential, commercial, and renewable energy applications, providing reliable and efficient energy storage for all your needs.

Built with cutting-edge SVOLT lithium battery technology, the SVOLT 24V 100Ah lithium battery offers enhanced safety features and a Battery Management System (BMS) for optimal energy control. Designed for environmentally sensitive areas, this lithium battery also supports sustainable and renewable energy practices, making it an eco-friendly power storage option.

Key Features:

• A-Grade Lithium Battery Cells for unmatched capacity and reliability
• 24V 100Ah configuration with 2.56kWh of energy storage
• Environmentally friendly, designed for renewable energy systems
• Maintenance-free operation with long-lasting durability
• 7 protection features and Built-in BMS for safety and performance
• Mountable design for easy installation in various setups
• 5-Year Warranty for peace of mind and long-term investment protection

Battery Specifications:

• Energy Capacity: 2.56kWh
• Battery Type: LiFePO4 (Lithium Iron Phosphate)
• Nominal Voltage: 25.6V
• Nominal Capacity: 100Ah
• Energy Density: 2560Wh
• Terminal Type: Fast Plug-In & Plug-Out
• Cycle Life: Over 6000 cycles (at 80% DOD)
• Discharge Temperature Range: -20°C to 65°C
• Charge Temperature Range: 0°C to 50°C
• Storage Temperature: -10°C to 30°C
• Max Parallel Connections: Up to 16 units

BMS (Battery Management System) Features:

• Overcharge and over-discharge protection
• High-temperature protection
• Communication Port: RS485, RS232, CAN, and Dryport
• Primary and secondary protection circuits for both charging and discharging

What's in the Box:

• 1 x SVOLT 24V 100Ah 2.56kWh Lithium Battery
• 1 x Red (Positive) Battery Cable
• 1 x Black (Negative) Battery Cable
• 1 x Ethernet Cable
• 1 x User Manual
• 1 x Wall Mount Bracket

Warranty and Installation: The SVOLT 24V 100Ah Lithium Battery comes with a 5-year warranty and a 10-year service warranty. Please ensure that the installation is performed by a qualified electrical wireman or Master electrician. A valid electrical certificate of compliance (COC) is required for warranty claims.
