SX1278 LoRa Kit with 0.96 Inch Blue OLED

1 available / new

Only 1 left – grab it before it’s gone!

R541.55

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

BotShop3156

97.99 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

DEV-007

Bob Shop ID

614718613

SX1278 LoRa Kit with 0.96 Inch Blue OLED.

Name: SX1278 LoRa Kit with 0.96 Inch Blue OLED
SKU: DEV-007
Price: 541.55 ZAR
Availability: InStock

WIFI Kit series is the new development of the cost-effective networking program, the main chip using ESP32, LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth-Compatible (traditional Bluetooth-Compatible and BLE low power Bluetooth-Compatible).

This product is based on the WIFI Kit 32 added SX1278 chip, that is, LoRa ™ remote modem, 433MHz frequency, about -148dBm high sensitivity, +20 dBm power output, high reliability, transmission distance (measured open area communication distance 2.6Km).

Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for Arduino development environment, can be very simple and fast for program verification and product development.

Operating voltage: 3.3V to 7V

Operating temperature range: -40 ° C to + 90 ° C

Frequency:433MHz

Supports Sniffer, Station, softAP and Wi-Fi Direct modes

Data rate: 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20,54 Mbps @ 11g, 11 Mbps @ 11b

Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n

Receiver sensitivity up to - 139 dBm

UDP continues to throughput by 135 Mbps

Package Including:

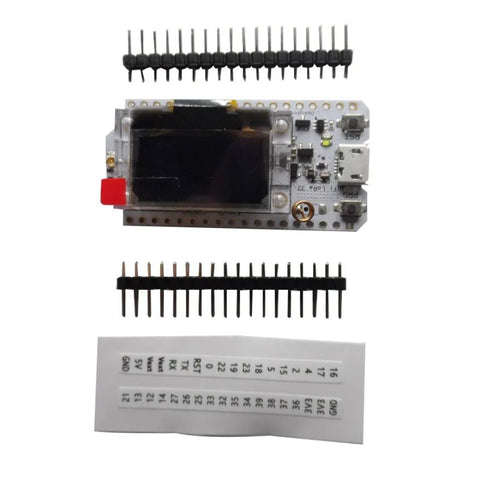

1*WIFI LoRa 32 board ( Not soldered pins+pin stickers) +1* Antenna

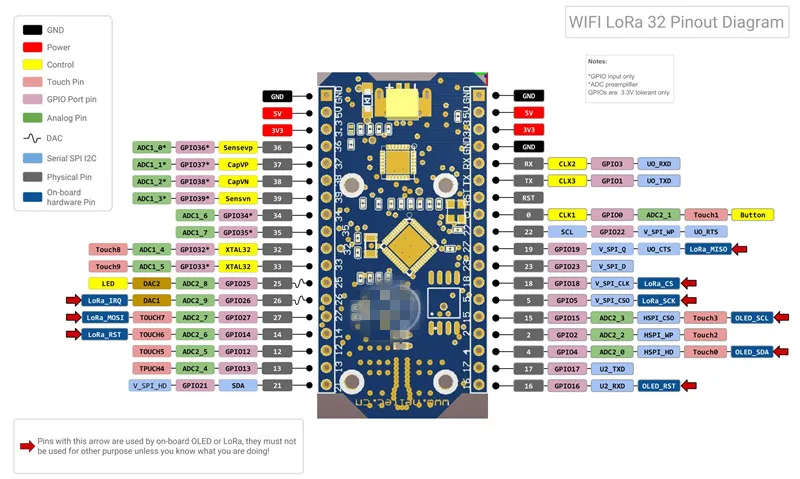

SX1278 LoRa Kit with 0.96 Inch Blue OLED pinout

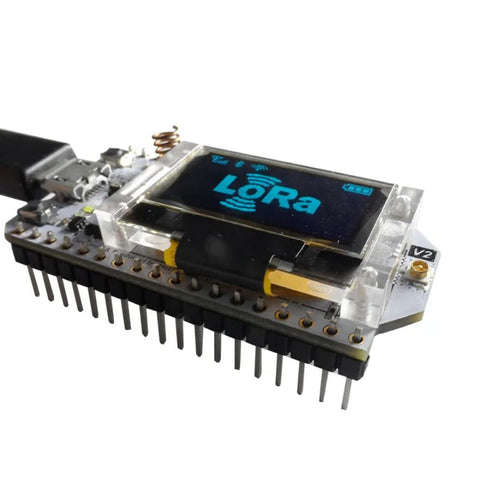

SX1278 LoRa Kit with 0.96 Inch Blue OLED

SX1278 LoRa Kit with 0.96 Inch Blue OLED pins
