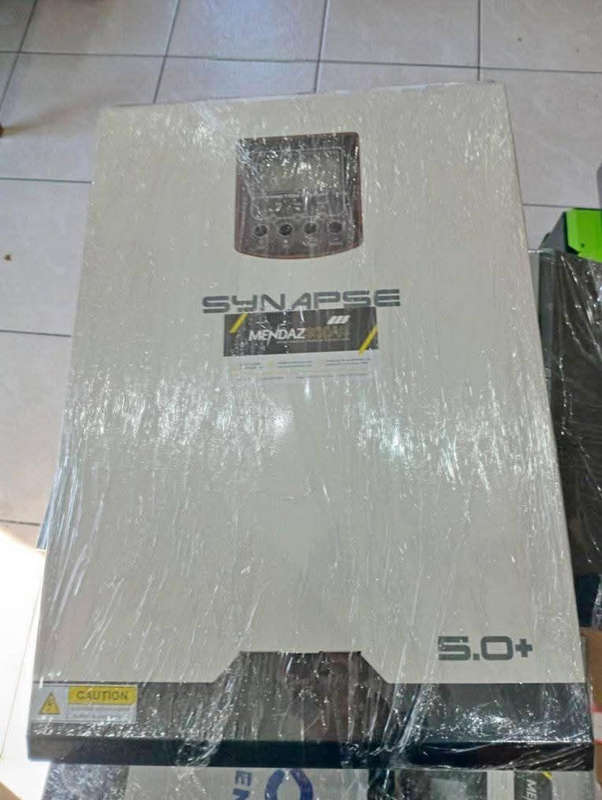

Synapse 5.0 48v refurbished Inverter

Technical Specifications:

Rated Power: 5000W

Voltage: 230V AC

Surge Power: 5000VA

Efficiency: 90-93%

Transfer Time: 10mS (for personal computers); 20mS (for home appliances)

Waveform: Pure sine wave

Battery:

Battery Voltage: 48VDC

Floating charge Voltage: 54V DC

Overcharge Protection: 63V DC

Important Note: When using this inverter with Lithium batteries, care should be taken to correctly size the bank, taking into account the maximum current which this inverter requires VS what the battery can deliver. Maximum continuous current per inverter = +-110A, max. peak current = +-220A (depending on battery SOC / terminal voltage).

Solar Charger & AC Charger:

Max PV Array Power: 4000W

Max PV Array VOC: 500V DC

MPPT Range @ Operating Voltage: 120 ~ 450V DC

Max Solar Charger Current: 80A

Max AC Charger: 60A

Max total charge current: 80A

Physical:

Dimensions: 100 x 300 x 440mm (D x W x H)

Weight: 10kgs

Communication Interface: USB / RS232

Environment:

Humidity: 5% to 95% Relative Humidity (Non-condensing)

Operating temperature: -10°C to 50°C

Storage Temperature: -15°C to 60°C

Great condition refurbished Inverter with 30 day warranty thereafter could be repaired at buyers expense if required.

Ships from Cape Town within 2 days
