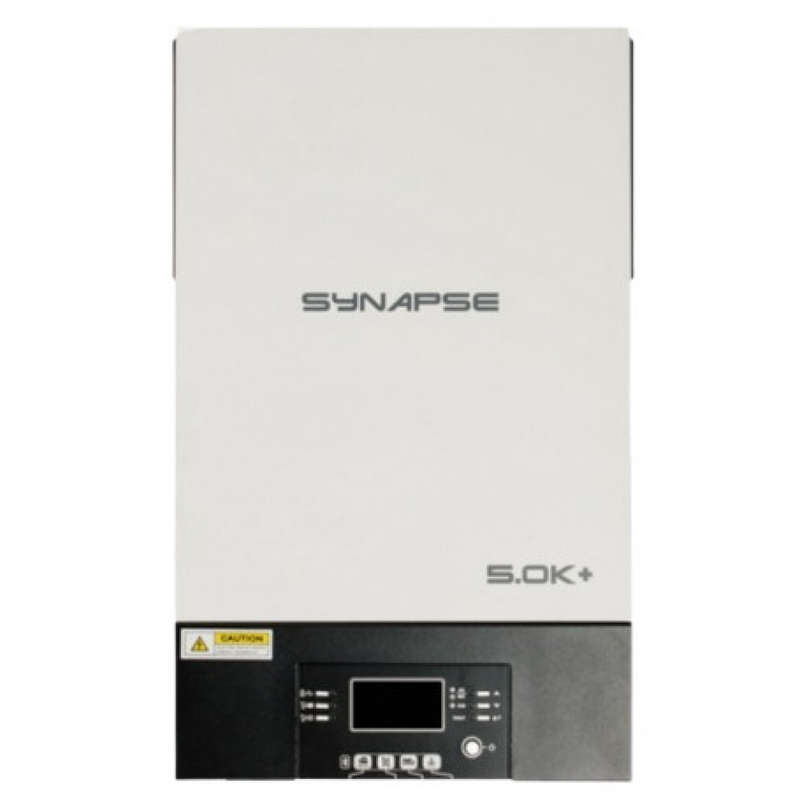

Synapse 5.0K+ Offgrid Inverter 5kW 48V DC, 4000W MPPT

Comes equipped with a unique operating system and a built-in MPPT for solar applications. In addition, there is an optional AC input that will allow a battery bank to be charged by a grid or generator connection.
These units are not capable of feeding back into the grid. Perfect for a start-up system to reduce the effects of load shedding. Another option is by reducing electricity bill when adding solar panels.
Pure Sine wave inverter
Battery equalization function to optimize battery performance

Technical Specifications:
- Rated Power: 5000W
- Voltage: 230V AC
- Surge Power: 5000VA
- Efficiency: 90-93%
- Transfer Time: 20ms for home appliances
- Waveform: Pure sine wave

Battery:
- Battery Voltage: 48V DC
- Floating charge Voltage: 5V DC
- Overcharge Protection: 66V DC

Solar Charger & AC Charger:
- Max PV Array Power: 4000W
- Max PV Array VOC: 145V DC
- MPPT Range @ Operating Voltage: 60 ~ 115V DC
- Max Solar Charger Current: 80A
- Max AC Charger: 60A

Physical:
- Dimensions(D x W x H): 100 x 300 x 440mm
- Weight: 13.5kgs
- Communication Interface: USB / RS232 / RS485 / Bluetooth / Dry-contact

Environment:
- 5% to 95% Relative Humidity (Non-condensing)
- Operating temperature:-10°C to 55°C
- Storage Temperature: -15°C to 60°C
