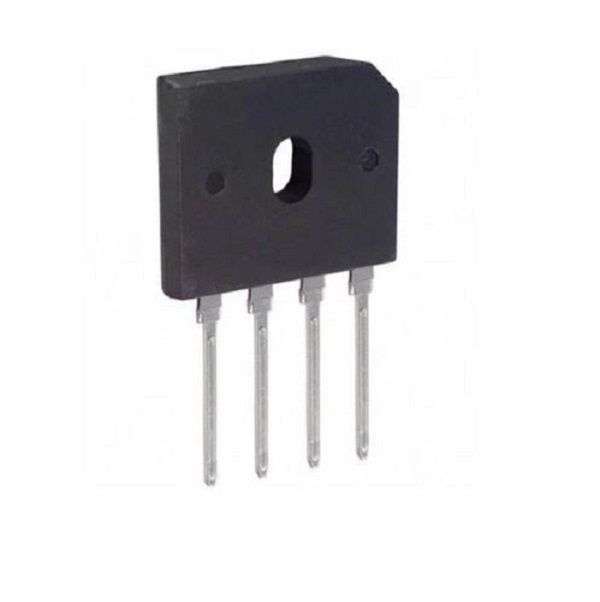

Taiwan Semiconduuctor (GBU806) Bridge Rectifier, Single Phase, 800 V, 8 A

Bridge Rectifier, Single Phase, 800 V, 8 A, SIP, 4 Pins, 1 VProduct OverviewThe GBU806 is a single-phase glass passivated Bridge Rectifier with mattetin-plated lead terminals and UL94V-0 GBU case. The bridge rectifier featureshigh case dielectric strength of 1500V, high surge current capability andpolarity as marked on the body.560V Maximum RMS voltage800V Maximum DC blocking voltage94pF Typical junction capacitance per legApplicationsMains RectificationProduct InformationNo. of Phases: Single PhaseRepetitive Peak Reverse Voltage: 800VAverage Forward Current: 8ABridge Rectifier Case Style: SIPForward Voltage Max: 1VNo. of Pins: 4PinsBridge Rectifier Mounting: Through HoleForward Surge Current: 200AOperating Temperature Max: 150°CProduct Range: GBU80
