TB6560 3A Single Axis Step Motor Controller

• A very basic driver, the TB6560 stepper motor driver is intended for use with 42,57,86 steppers operating between 3A and 5V.
• It features the new Toshiba TB6560AHQ chip with a 6N137 high-speed Optocoupler, which is intended to give high speed without step out and may be used with two or four-phase motors with four or six wires.
• This driver has a big heat sink, overheating protection, low-voltage and over-current protection, and both of these features are included even if it doesn't necessarily produce a lot of heat.
• These characteristics, which include built-in defenses against a range of common stepper motor driver issues, guarantee that the driver will continue to operate at peak efficiency.

Specification:

• Operating Voltage: 10V to 35V (Recommended Switch Power Supply DC24V)
• Rated Output: ± 3A ; Peak 3.5A
• Microchip: Original Toshiba TB6560AHQ
• Selectable Excitation Modes: 1/1  ;  1/2  ;  1/8  ;  1/16 Step
• Overheating Protection: Passive Heat Sink
• Short Circuit Protection: Over-current Protection with Low-voltage Shutdown

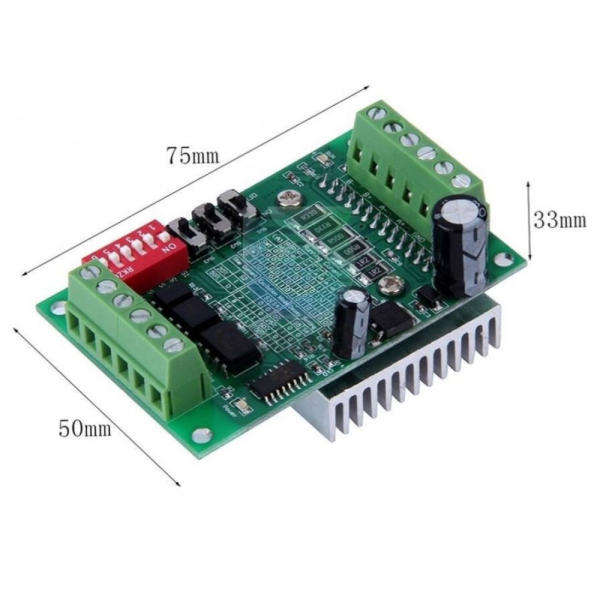

• Dimensions: 50 x 75 x 35 mm
• Additional Features: Automatic Half-Decay
• Adjustable Decay Settings (0%/25%/50%/100%)
• 6N137 High-Speed Optical Coupling
