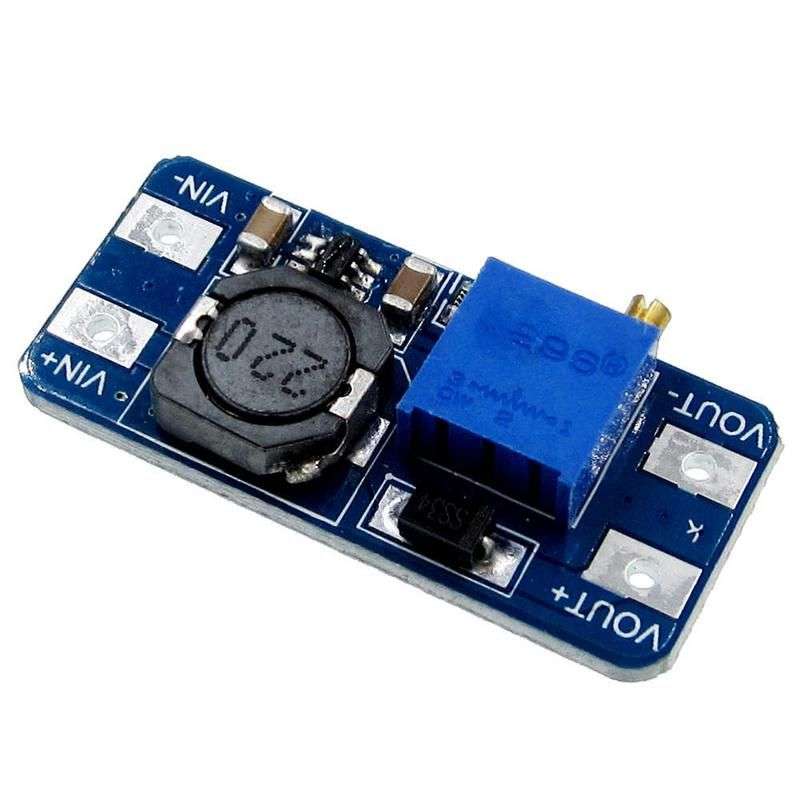

MT3608 Step Up Adjustable DC Boost Convertor. 2A Max Output 28V

This module features the MT3608 2 Amp step up (boost) converter, which can takeinput voltages as low as 2V and step up the output to as high as 28V. The MT3608features automatic shifting to pulse frequency modulation mode at light loads.It includes the under-voltage lockout, current limiting, and thermal overloadprotection.This module has a multi-turn trimpot (potentiometer) that you can use to adjustthe output voltage. Since the trimpot has 25 turns of adjustment you can easilyadjust the output of the module to exactly the voltage you need.Boost converters are a great way to easily increase a given voltage, but thatboost comes at the cost of less output current compared to the input current.Since this is a boost converter the output voltage has to be higher than thesupplied input voltage.Electrical characteristics1). The maximum output current: 2 a2). The input voltage: 2 v ~ 24 v3). The maximum output voltage: 28 v4). Efficiency: ?93%2.Mechanical properties1). Product size: 36 mm * 17 mm * 14 mm3.Method of useThe module of the IN+ and - after 2~24v, IN adjusting the potentiometer canadjust the output voltage, the output voltage is greater than the input voltage4.Matters needing attention1). The input voltage should not exceed the maximum input voltage2). The peak current output current is no more than a TV university
