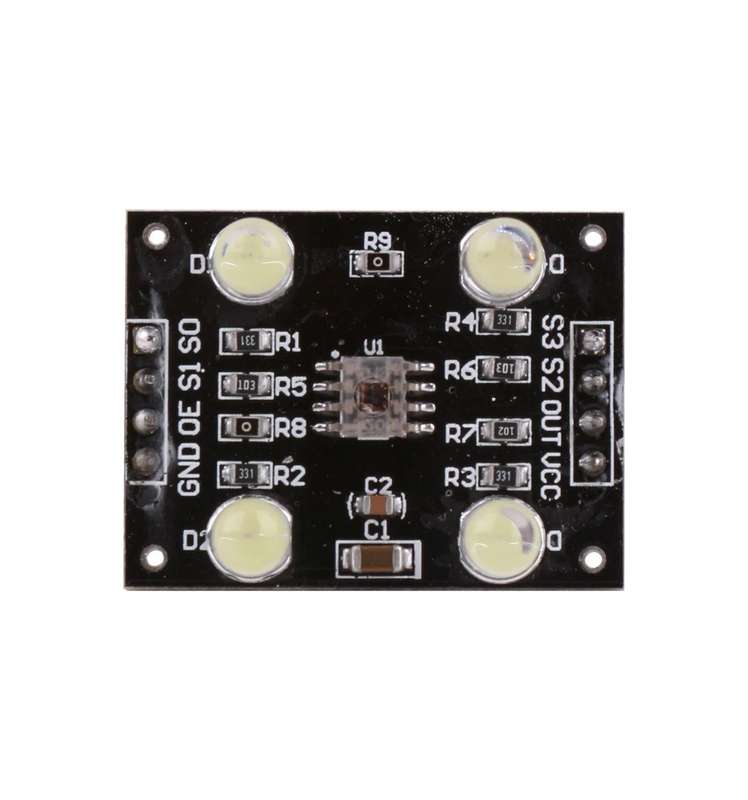

TCS3200D/TCS230 Colour Recognition Sensor Module

In the center of this module is the TCS230/TCS3200 Chip that will filter RGB light into a frequency that Is proportional to the intensity of the source light. S0 and S1 pins will act as the control to select the option of 2%, 20%, and 100% duty cycle for the frequency. S2 and S3 are used to control the RGB Filter. Pin Output Enable (OE) and Out pin will be connected to the microcontroller to enable the device.

• Input Voltage: 2.7v~5.5v
• Dimensions: 24 x 30 x 20 mm (L x W x H)
• Pinout:  S0-S1 Control for Frequency, S2-S3 Control for RGB Filter, OE Enable, an Output signal

• The Break-out board has a TCS3200 color sensor

• Support 3V-5V voltage input

• Four bright white LEDs, onboard, can illuminate the object which does not emit light itself. Controllable light-emitting tube.

• S1 S2 S3 S4 can be used as the pull-up or pull-down resistors on board.

DataSheet
