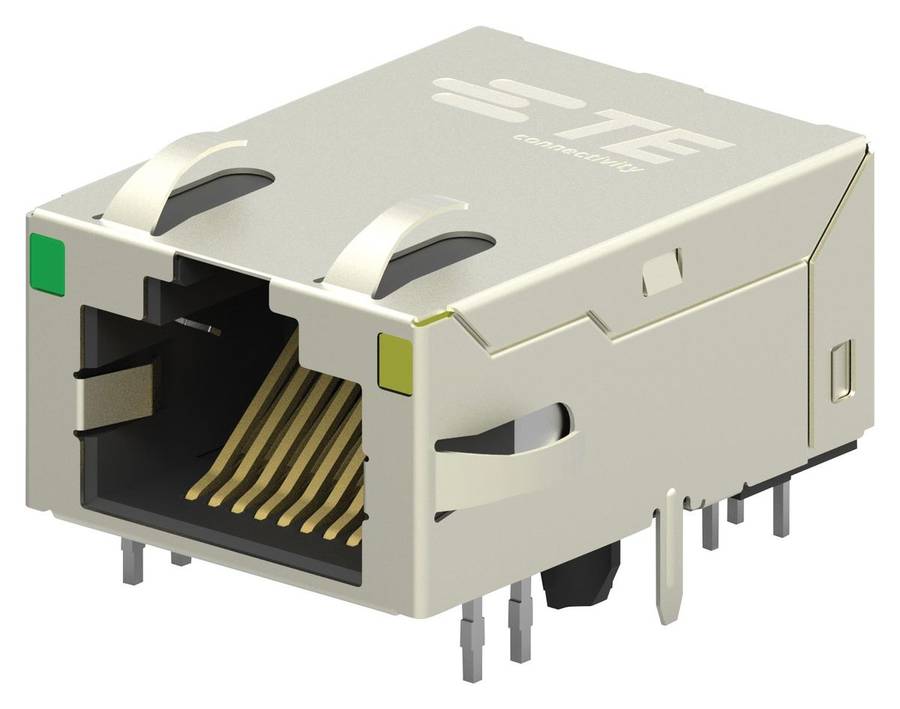

TE Connectivity (1-2301994-1) Modular Connector, Inverted, With LEDs,

Modular Connector, Inverted, With LEDs, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat6,Through Hole MountProduct OverviewThe 1-2301994-1 from TE Connectivity is an industrial RJ45 jack with integratedmagnetics. It offers a highly integrated connectivity solution from the cable tothe physical layer for industrial Ethernet. Integrating the magnetics into thejack allows for a much improved EMI noise shielding, enabling more reliableconnections. A standardized RJ45 (8P8C) portfolio with 1x1 right angle formfactor addresses many of the industrial applications. Specific industrialrequirements such as high reliability through improved corrosion resistance,extended temperature range from -40°C to +85°C and long product lifetime are alladdressed, including support of the latest reflow soldering productionprocesses.Supports 1Gbps data rate (IEC 60603-7-51), Cat 6 performance categoryBoth current and voltage mode PHY-chips supportedAvailable with inverted-latch up, LEDs optionsCopper alloy contacts with 0.76µm (30µ") gold over 1.27µm (50µ") nickel platingImproved EMI integrity and signal integrity performanceBrass shield with nickel plating, UL recognizedDielectric withstanding voltage of 2250VDC, through hole solder terminationMinimum 750 mating cycles, operating temperature range from -40°C to+85°CBlack colour high grade LCP (liquid crystal polymer material), UL94 V-0flammability ratingIntegrated magnetics reduces the (analogue) design efforts required by the userApplicationsIndustrialProduct InformationModular Connector Type: RJ45 JackPort Configuration: 1 x 1 (Port)Gender: JackNo. of Contacts: 8ContactsNo. of Positions / Loaded Contacts (per Port): 8P8CNo. of Positions: 8WaysLAN Category: Cat6Connector Mounting: Through Hole MountNo. of Ports: 1PortsConnector Orientation: Right AngleContact Termination Type: Through HoleShielding: ShieldedMagnetics: With MagneticsContact Plating: Gold Plated ContactsLEDs: With LEDContact Material: Copper AlloyLight Pipes: Without Light PipeProduct Range: MagJack
