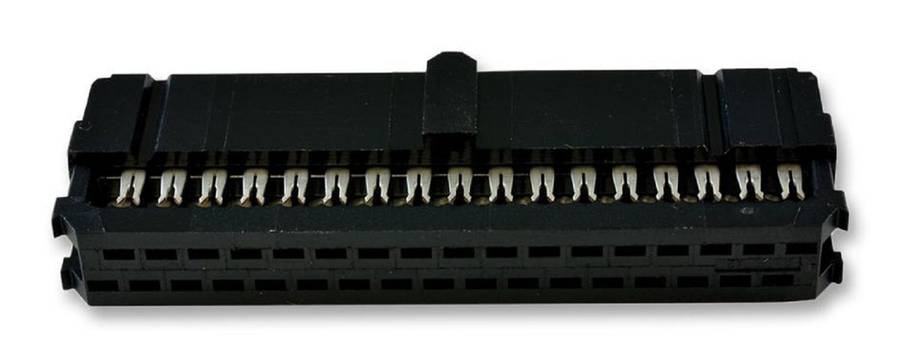

TE Connectivity (1658622-8) IDC Connector, IDC Receptacle, Female, 2.54 mm

IDC Connector, IDC Receptacle, Female, 2.54 mm, 2 Row, 34 Contacts, Cable MountProduct OverviewThe 1658622-8 is a 34-position 2-row vertical Wire-to-Board Ribbon Cable PinHeader with gold-plated phosphor bronze contacts and black UL94V-0 ratedthermoplastic housing. Novo receptacles offer a dual contact interface with allnormal force created by metal-to-metal contact. It provides a higher degree ofcontact reliability. The Novo tuning fork contact offers a military-approveddesign.Insulation displacement contacts for fast, economical mass terminationsContact design provides uniform latching of contacts and housing with connectorcoverAccepts wire size range 28 to 26AWG (0.08 to 0.15mm²), solid or strandedSnap-on strain reliefOne-step termination with Novo toolingApplicationsAerospace, Defence, MilitaryProduct InformationPitch Spacing: 2.54mmIDC Connector Type: IDC ReceptacleContact Gender: FemaleNo. of Contacts: 34ContactsNo. of Rows: 2 RowConnector Mounting: Cable MountContact Material: Phosphor BronzeContact Plating: Gold Plated ContactsProduct Range: AMP-LATCH Novo Series
