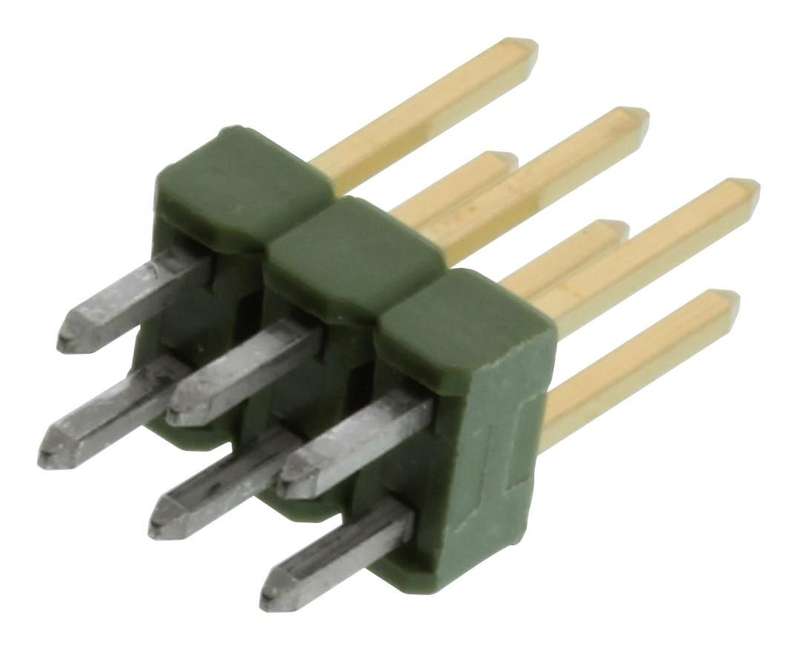

TE Connectivity (826632-3) Pin Header, Board-to-Board, 2.54 mm, 2 Rows

Pin Header, Board-to-Board, 2.54 mm, 2 Rows, 6 Contacts, Through Hole Straight,AMPMODU MOD IIProduct OverviewThe TE Connectivity AMPMODU Mod II breakaway pin headers provide a comprehensivesolution for popular connection standard. These headers can be convenientlybroken to any size to ensure maximum versatility and are available in straightand right angle. Mod II breakaway headers are compatible with mating receptaclesassured through a range of pin lengths and plating options. Pin headers areoffered for surface mount, press fit action pin and standard through hole soldertypes.Comprehensive single and double row connector systemCurrent rating 3A max per contactPitch size is 2.54mmOperating temperature range -55°C to +105°CContact resistance of 20mohmInsulation resistance of 1000MohmTin and gold plated contacts availableFeatures 0.63mm posts with mating receptaclesApplicationsIndustrialProduct InformationConnector Systems: Board-to-BoardPitch Spacing: 2.54mmNo. of Rows: 2RowsNo. of Contacts: 6ContactsContact Termination Type: Through Hole StraightProduct Range: AMPMODU MOD IIConnector Shroud: UnshroudedContact Material: BrassContact Plating: Gold Plated Contacts
