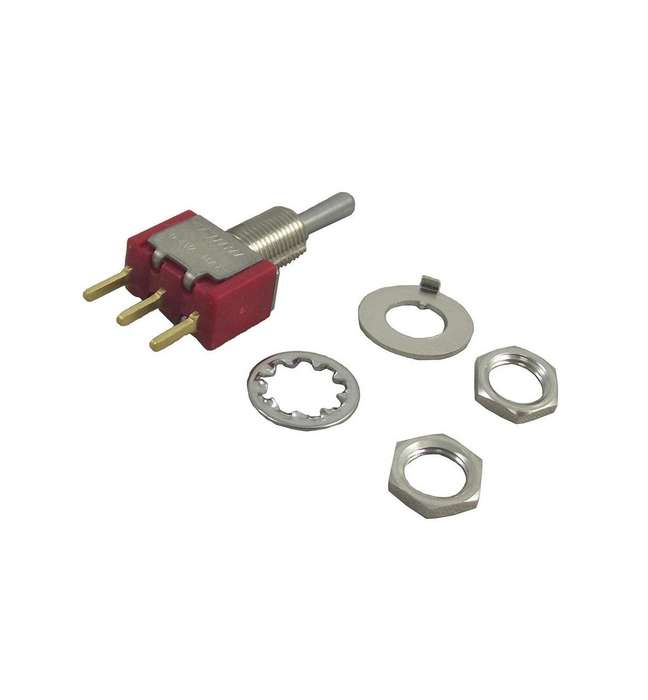

TE Connectivity (A103SYCB04) Toggle Switch, On-Off-On, SPDT

Toggle Switch, On-Off-On, SPDT, Non Illuminated, GEMINI, Panel MountProduct InformationSwitch Operation: On-Off-OnContact Configuration: SPDTIllumination: Non IlluminatedProduct Range: GEMINISwitch Mounting: Panel MountContact Current Max: -Contact Voltage AC Nom: 20VSwitch Terminals: PC PinContact Voltage DC Nom: 20VProduct OverviewThe A103SYCB04 is a single-pole double-throw (SPDT) Toggle Switch withgold-plated contacts. The Gemini A series offer extensive one pole withmulti-circuit configurations including momentary function, locking toggle toavoid unwanted switching as well as bat and flat toggles in different lengths.Terminals are epoxy sealed to prevent the entry of flux, solvent and othercontaminants. Gemini A series switch available with PC terminal choices.Baton long toggle styleVertical toggle actuation10mR Contact resistance1000VAC Dielectric strength1000MR Insulation resistanceThreaded bushingPrinted circuit terminationUL94V-1 Flammability ratingApplicationsIndustrial, Audio, Medical, Lighting, Sensing & Instrumentation, Communications& Networking
