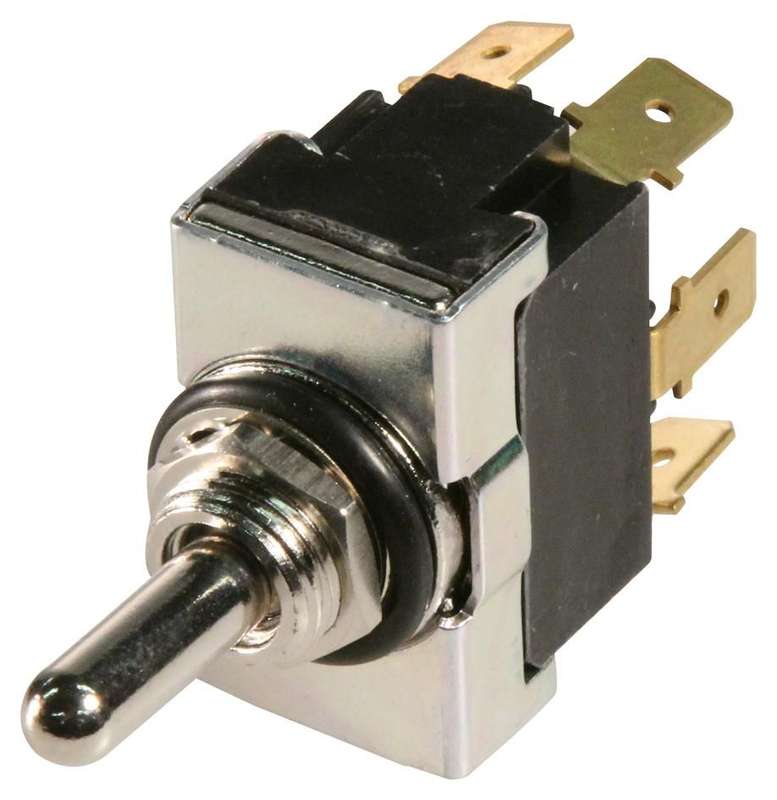

Te Connectivity (AWTS1504) Toggle Switch, (On)-Off-(On), DPDT, 20 A

Toggle Switch, (On)-Off-(On), DPDT, Non Illuminated, A, Panel Mount, 20 AProduct InformationSwitch Operation: (On)-Off-(On)Contact Configuration: DPDTIllumination: Non IlluminatedProduct Range: ASwitch Mounting: Panel MountContact Current Max: 20AContact Voltage AC Nom: 250VSwitch Terminals: Quick ConnectContact Voltage DC Nom: 30VProduct OverviewThe AWTS1504 is a double-pole double-throw (DPDT) Toggle Switch with verticalactuation and baton toggle style. The AW series toggle switch comes with brasscontact base and silver alloy plated contacts. The AW Series toggle switchfeatures DPDT contact configuration, with a choice of momentary or maintainedcircuits. The switch provides superior switching power through brass silveralloy contacts. This toggle is has 20,000 electrical life cycles at full load.The AW Series switches have 0.250 quick connect terminals and it is panelmountable with 12mm threaded bushing which is brass with chrome plating. Theseries mounting design conforms to standard panel cut outs, easing the task ofinstallation.UL RatedWaterproofIP67 Protection rating10mR Contact resistance1500VAC Dielectric strength1000MR Insulation resistance0.250 Quick connect terminalSleeve and frame perfect sealedFixed contact moulded-inserting constructionApplicationsIndustrial, Power Management
