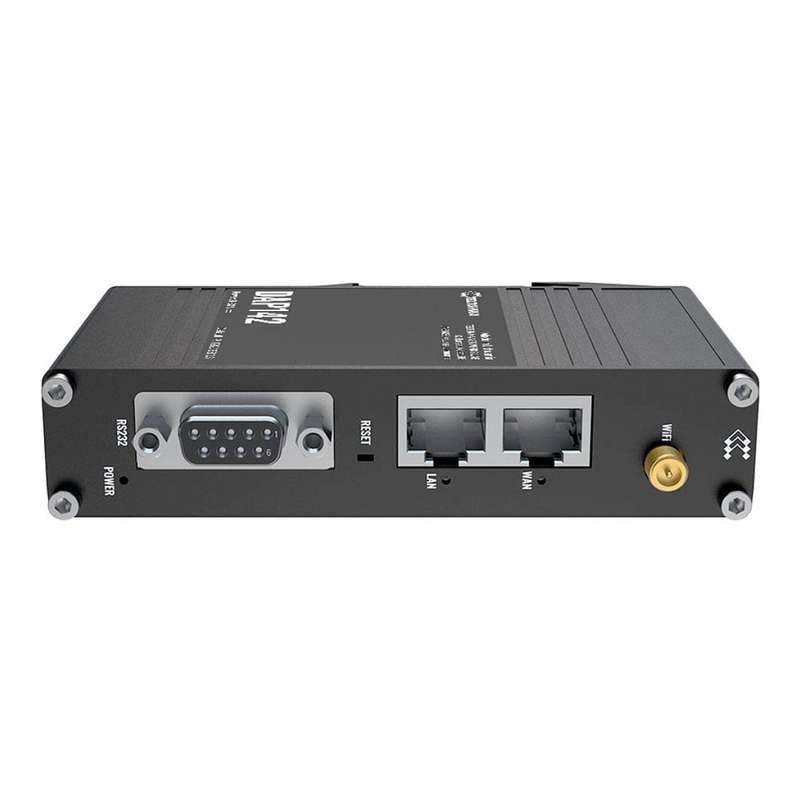

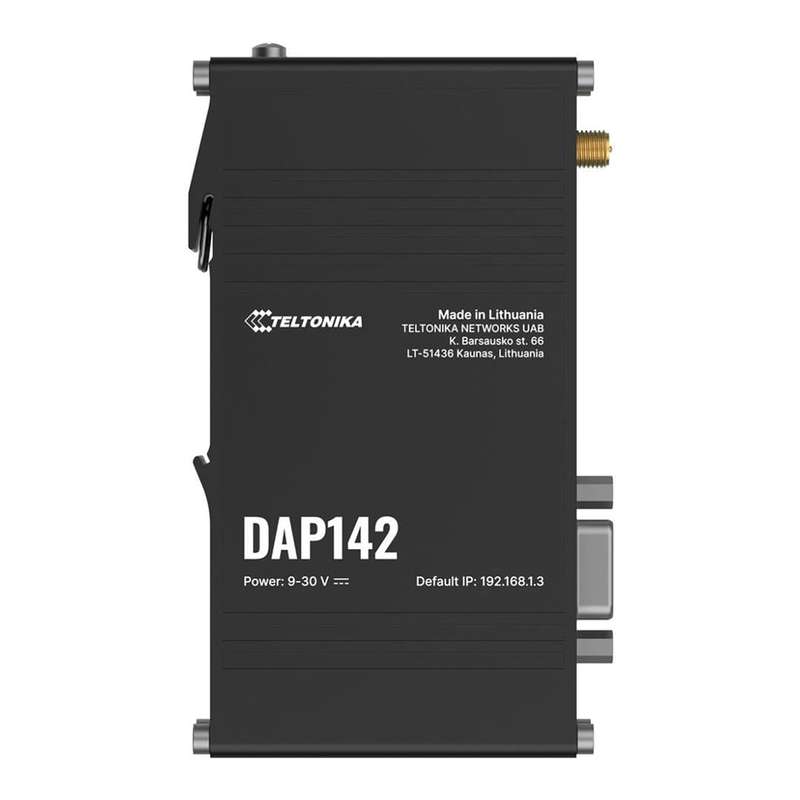

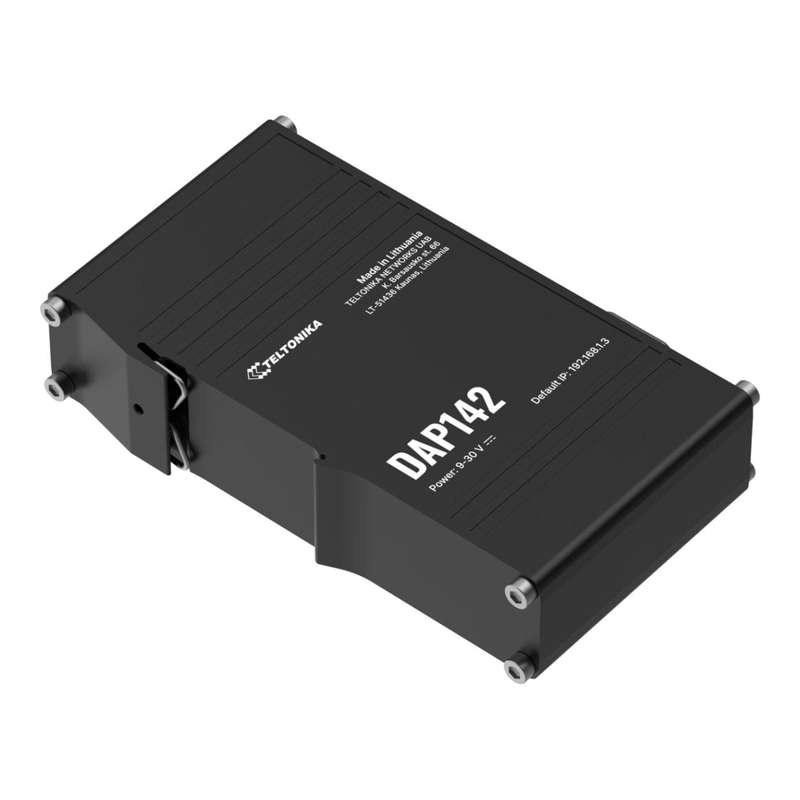

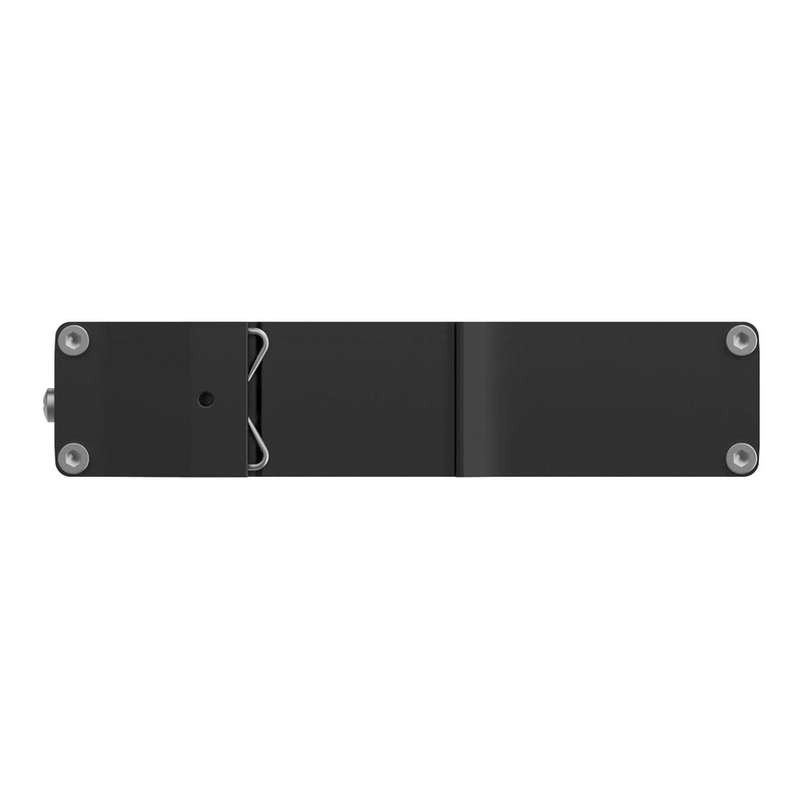

Teltonika DAP142 Industrial Wireless Access Point
The DAP142 is a Teltonika industrial wireless access point with passive PoE, engineered for enhanced and reliable Wi-Fi coverage and performance in industrial environments. This access point is equipped with an RS232 port and two RJ45 ports, and is powered via a 3-pin power connector, making it ideal for specialised industrial applications. In addition to Wi-Fi 4 capabilities, the DAP142 supports Wi-Fi mesh, Fast Roaming, and up to 50 simultaneous connections. With an integrated DIN rail bracket, durable aluminium casing, and plug-and-play functionality, this wireless access point provides simple installation and configuration at minimum effort.
Features
- WIRELESS AP CAPABILITIES: Seamless Wi-Fi 4 with Wi-Fi mesh & Fast Roaming
- MULTIPLE INTERFACES: Featuring two RJ45 ports & an RS232 port
- POWER INPUT: 1x 3-pin power connector tailored for industrial use
- INTEGRATED DIN RAIL BRACKET: Easy mounting for plug-and-play deployment
Technical Specification
Product: Teltonika DAP142 Industrial Wireless Access Point
CPU: Mediatek, 580 MHz, MIPS 24KEc
RAM: 128 MB, DDR2
FLASH storage: 16 MB serial NOR flash
Ethernet Ports
- 2x 10/100 Mbps LAN ports
- Compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards
- Supports auto MDI/MDIX crossover
Wireless mode: IEEE 802.11b/g/n (Wi-Fi 4), Access Point (AP), Client (STA), Mesh (802.11s), Multi AP
Antennas: 1x RP-SMA for Wi-Fi
Serial
- RS232: 1x DB9 socket
- RS232: Terminal block connector: TX, RX, RTS, CTS
- Serial functions: Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client
Power
- Connector: 3-pos plugable terminal block
- Input voltage range: 9-30 VDC, reverse polarity protection, surge protection >31 VDC 10us max
- PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN2 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
- Power consumption: Idle: 1 W / Max: 2 W
- Other: 1x Grounding screw
Operating system: RutOS (OpenWrt based Linux OS)
Weight: 149.2 g
Mounting options: Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
