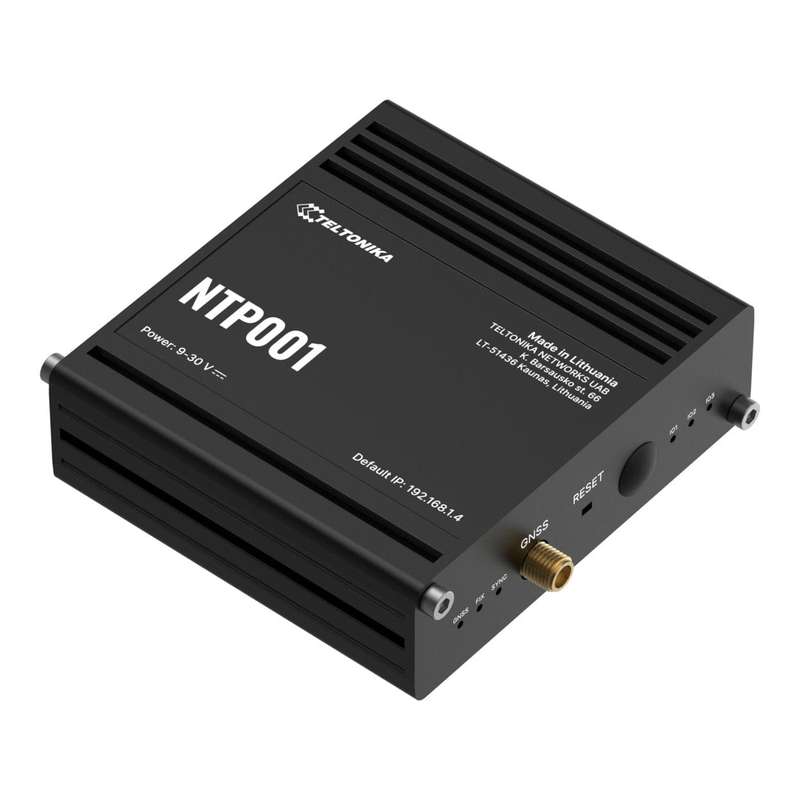

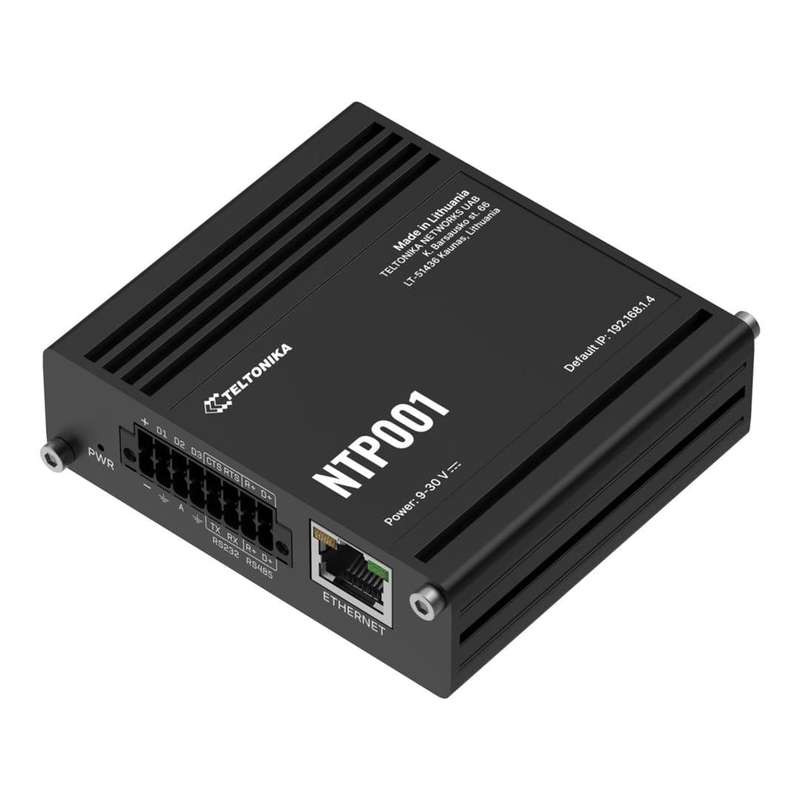

Teltonika NTP001 Industrial Network Time Protocol Server

The NTP001 is a stratum-1 Teltonika NTP server designed for synchronizing accurate, UTC-traceable time in both public and private networks, without the need of Internet access. Utilising its GNSS capabilities, this low-cost NTP server maintains precise, UTC-traceable time. Plug-and-play functionality, a wide variety of interfaces including RS232 and RS485, and a robust security profile all make the NTP001 the perfect NTP server for your network.

Features

• NETWORK TIME SYNCHRONIZATION: Accurate & low-cost NTP server
• MULTIPLE INTERFACES: Featuring RJ45, RS232, RS485 & I/Os
• SECURITY: Authentication, access control & more
• PLUG-AND-PLAY: Simple installation & configuration at minimum effort

Technical Specification

Product: Teltonika NTP001 Industrial NTP Server

CPU: Mediatek, 580 MHz, MIPS 24KEc

RAM: 128 MB, DDR2

FLASH storage: 16 MB, NOR Flash

Ethernet port

• 1x LAN port, 10/100 Mbps
• Compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards
• Supports auto MDI/MDIX crossover

Operating system: RutOS (OpenWrt based Linux OS)

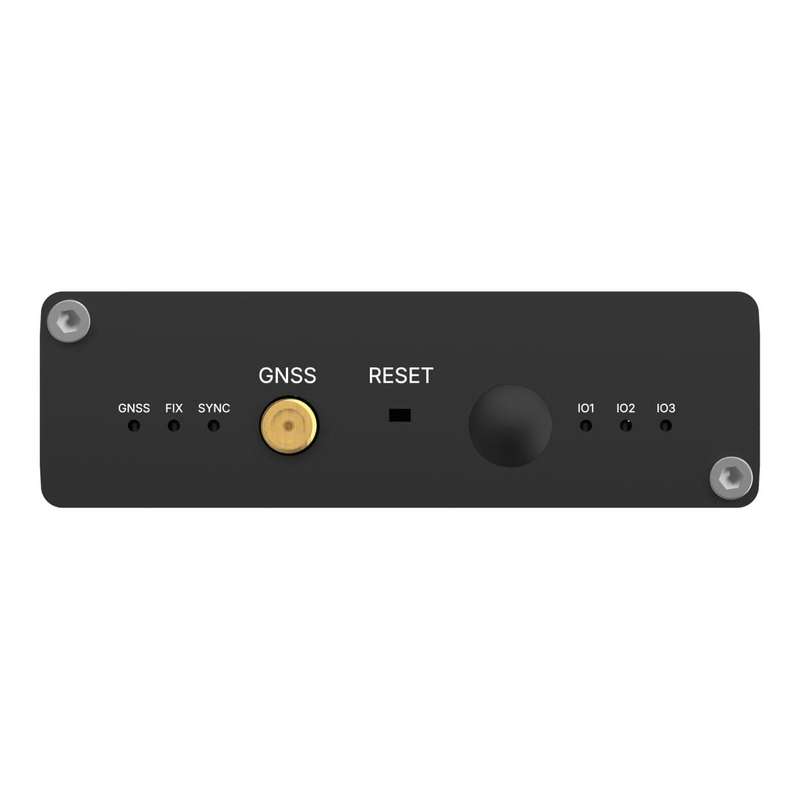

GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS

Power Connector: 2-pin in 16-pin industrial terminal block

Input voltage range: 9 - 30 VDC, Overvoltage protection, Reverse polarity protection, Surge protection +/- 1kV 50 uS Max

Weight: 180 g

Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

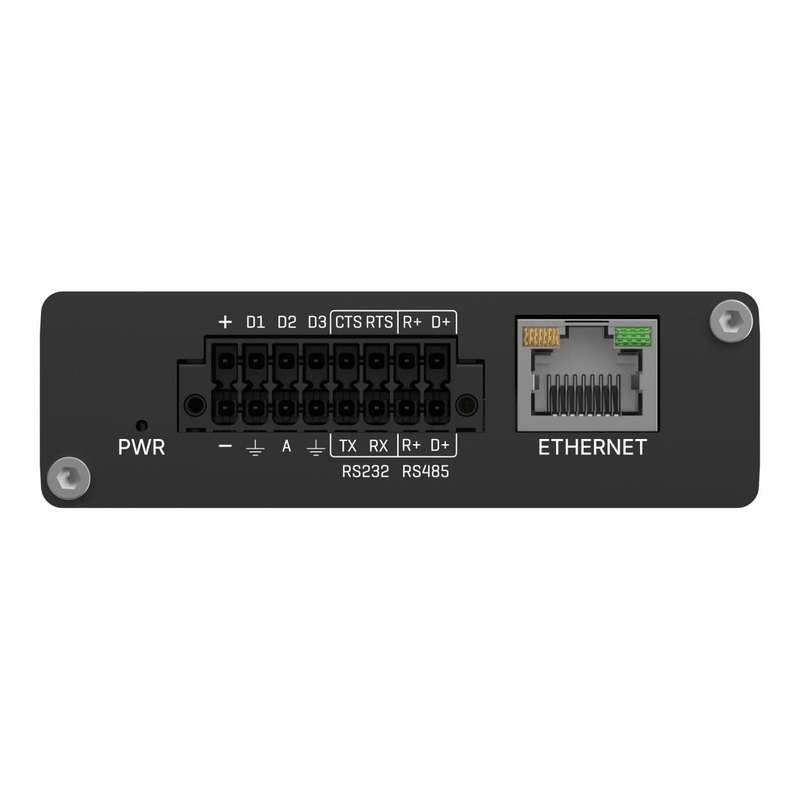

Other Interfaces

• I/O's: 3x Configurable I/O, 1x Analog input in 16-pin terminal block
• Antennas: 1x SMA for GNSS
• RS232: 4-pin in 16-pin terminal block (TX, RX, RTS, CTS)
• RS485: 4-pin in 16-pin terminal block (D+, D-, R+, R-)
