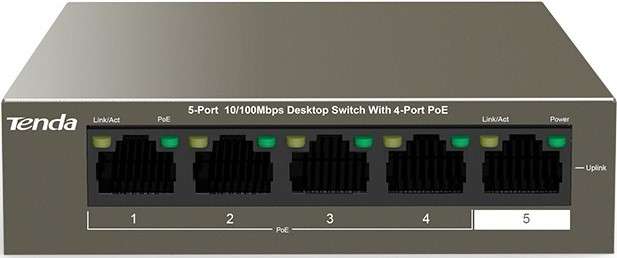

Tenda 5-Port 10 To 100Mbps Desktop Switch with 4-Port PoE

TEF1105P-4-63W is a Tenda PoE switch that offers 5 10/100 Mbps Base-TX RJ45 ports. Up to 250 meters long distance transmission, beyond hundred meters transfer limit. 6KV lightning protection PoE switch is the real monitoring private switch. Ports 1-4 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 58W the whole device.

Product Overview

The Tenda TEF1105P-4-63W is a 5-port 10/100 Mbps desktop switch with 4 PoE+ ports, providing up to 30W power per port and a total PoE budget of 58W. It supports long-distance transmission up to 250 meters and complies with IEEE 802.3af/at standards for powering devices like IP cameras and access points. This unmanaged switch features plug-and-play installation, one-key VLAN isolation, and 6KV lightning protection for reliable and easy network expansion

Features

-Supports desktop and wall-mounting
-Support two modes of Standard,Extend
-Single port output power 30W,maximum output power 58W
-4xPoE+ 10/100Mbps RJ45 ports,1x10/100Mbps RJ45 port

Specifications

-Product Code: TE-TEF1105P-4-63W
-Description: Tenda 5-port 10/100Mbps Desktop Switch with 4-port PoE
-Network standards: IEEE 802.3 IEEE 802.3uIEEE 802.3xIEEE 802.3afIEEE 802.3at
LED Indicator
-5* Link/Ack LED indicators
-1 * Power LED indicator
Interfaces
-4*10/100 Base-TX Ethernet Ports(Data/Power)
-1*10/100 Base-TX Ethernet Port(Data)
-Transmission media: Recommended: CAT5/5e UTP or better
-Dimension: 100.0mmx100.0mmx26.0mm
Level of protection
-Lightning protection for ports: 6kV
-Lightning protection for power: 6kV
ESD:
-Air discharge: plus or minus 10kV
-Contact discharge: plus or minus 8kV
-Forwarding mode: Store-and-forward
-Switch capacity: 1Gbps
-Packet forwarding rate: 0.74Mpps
-Buffer: 448K
-MAC address table: 1K
PoE budget
-Single port: AF: 15.4W, AT: 30W
-Whole device: 58W
Input voltage
-100－240V AC 50/60Hz
-51V /1.25A DC（Power Adapter ）
Mounting
-Desktop mounting: support
-Wall mounting: support
-Rack mounting:non-support
Environment
-Operating Temperature: 0 degC~45 degC
-Storage Temperature: -40 degC~70 degC
-Operating Humidity: 10%~90% non-condensing
-Storage Humidity: 5%~90% non-condensing
-Certification: FCCCERoHS
