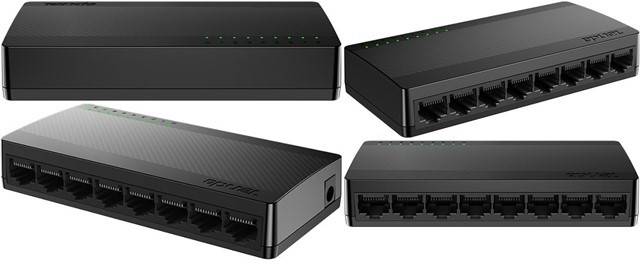

Tenda 8-Port Gigabit Ethernet Switch (TE-SG108) is designed to offer high-speed and stable network connectivity for both small office and home environments. With eight 10/100/1000 Mbps auto-negotiation ports, this switch enables seamless data transfer, ideal for streaming, gaming, and large file transfers.
Product Overview
This compact 8-port Gigabit Ethernet switch delivers up to 2000 Mbps full-duplex transmission with enterprise-level circuit design to prevent network jams and ensure zero packet loss. Featuring store-and-forward switching, auto MDI/MDIX ports, and robust ESD protection, it provides stable 24/7 operation for both home and business environments. Easy plug-and-play setup with desktop and wall mounting support makes it ideal for connecting a variety of devices including surveillance cameras, smart TVs, and computers.
Features
8× Gigabit Ethernet auto-negotiation ports
Plug and play, no configuration required
Fanless and silent operation
Durable metal housing for better heat dissipation
Supports IEEE 802.3, 802.3u, and 802.3ab standards
Auto MDI/MDIX and flow control support
Compact and energy-efficient design
Specifications
Product Code: TE-SG108
Description: Tenda 8-Port Gigabit Ethernet Switch
Network standards
IEEE802.3
IEEE802.3u
IEEE802.3x
IEEE802.3ab
LED Indicator
1 * Power
8 * Link/Act
Interfaces 8*10/100/1000 Base-T Ethernet ports(Auto MDI/MDIX)
Transmission media Recommended: CAT5/5e UTP or better
Dimension 124mm*59mm*23mm
Material Plastic
Level of protection ESD:
Air discharge: `b18kV
Contact discharge: `b16kV
Forwarding mode Store-and-forward
Switch capacity 16Gbps
Packet forwarding rate 12.00Mpps
Buffer 4Mb
MAC address table 8K
Power Input: 100-240V AC 50/60Hz
Output: 5V 0.6A (External power adapter)
Power consumption Max:<3W
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Environment
Operating temperature: 0`b0C 45
Storage temperature: -40`b0C 70`b0C
Operating humidity: (10% 90%) RH, non-condensing
Storage humidity: (5% 90%) RH, non-condensing
Certification CE, FCC, RoHS
Protocols CDMA/CD
MAC address learning Auto-Learning and Auto-Aging
