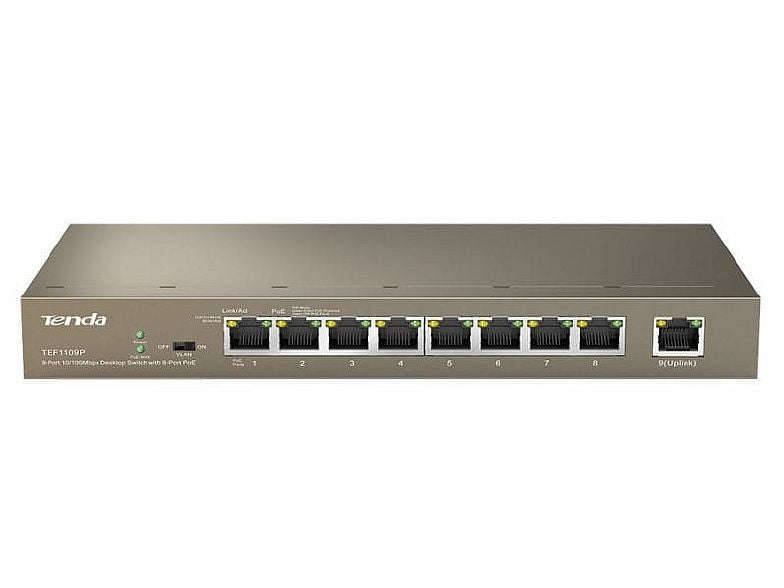

Tenda Switch 9 Port 10/100 8 PoE Port

The Tenda TEF1109P-8-102W is a 9-port Fast Ethernet unmanaged switch designed for small to medium-sized networks requiring reliable PoE connectivity. With eight 10/100 Mbps PoE ports compliant with IEEE 802.3af/at standards, it delivers up to 30W per port and a total PoE power budget of 92W, making it ideal for powering devices such as IP cameras, wireless access points, and VoIP phones. The switch features a 250-meter extend mode, surpassing the standard 100-meter Ethernet limitation, facilitating long-distance deployments without additional equipment. Its 6KV lightning protection ensures robust operation in challenging environments. Additionally, the TEF1109P-8-102W offers VLAN functionality to enhance network security and performance.

Key Features:

• 8 PoE Ports: Eight 10/100 Mbps RJ45 ports with IEEE 802.3af/at compliance, delivering up to 30W per port.

• High PoE Power Budget: Total PoE power output of 92W, suitable for multiple PoE-enabled devices.

• 9th Uplink Port: One 10/100 Mbps RJ45 uplink port for connecting to the core network.

• 250M Extend Mode: Enables long-distance data and power transmission up to 250 meters.

• VLAN Support: Isolates ports 18 from each other while maintaining communication with the uplink port, enhancing network security.

• 6KV Lightning Protection: Protects the switch from power surges and lightning strikes.

• Plug-and-Play: No configuration required; simplifies installation and deployment.

Technical Specifications:

• Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af/at

• Interfaces: 9 × 10/100 Mbps RJ45 ports (8 PoE ports, 1 uplink port)

• PoE Power Supply: Up to 30W per port; total PoE budget of 92W

• Transmission Media: CAT5/5e UTP or better

• MAC Address Table: 2K entries

• Switching Capacity: 1.8 Gbps

• Forwarding Mode: Store-and-forward

• Packet Buffer Memory: 1 Mb

• Lightning Protection: 6KV for uplink port

• Power Supply: Input: AC 100240V~50/60Hz

• Dimensions: 209 mm × 126 mm × 42 mm

• Operating Temperature: 0°C to 40°C

• Storage Temperature: -40°C to 70°C

• Operating Humidity: 10% to 90% RH non-condensing

• Storage Humidity: 5% to 90% RH non-condensing

• Certifications: CE, FCC, RoHS
