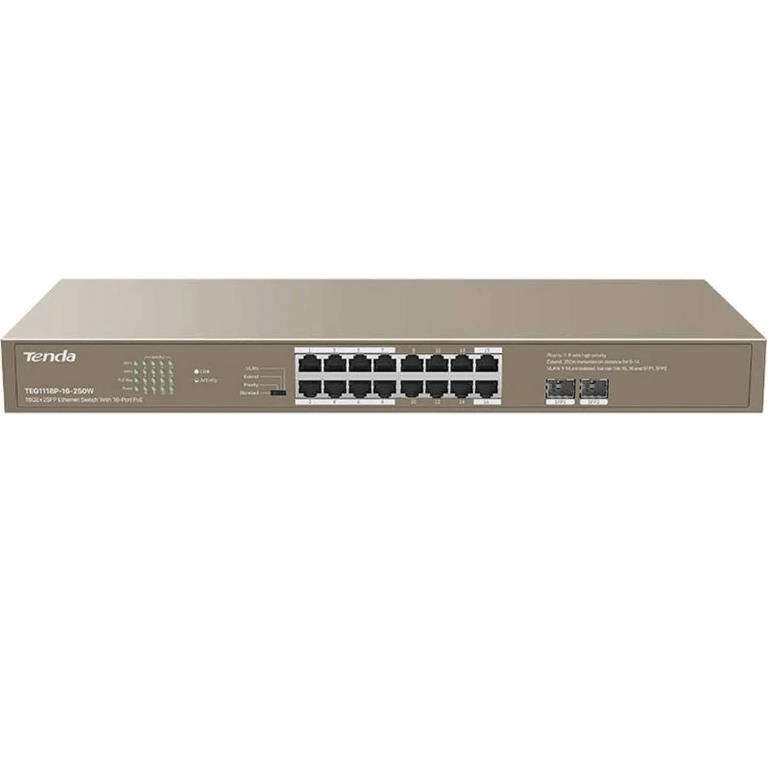

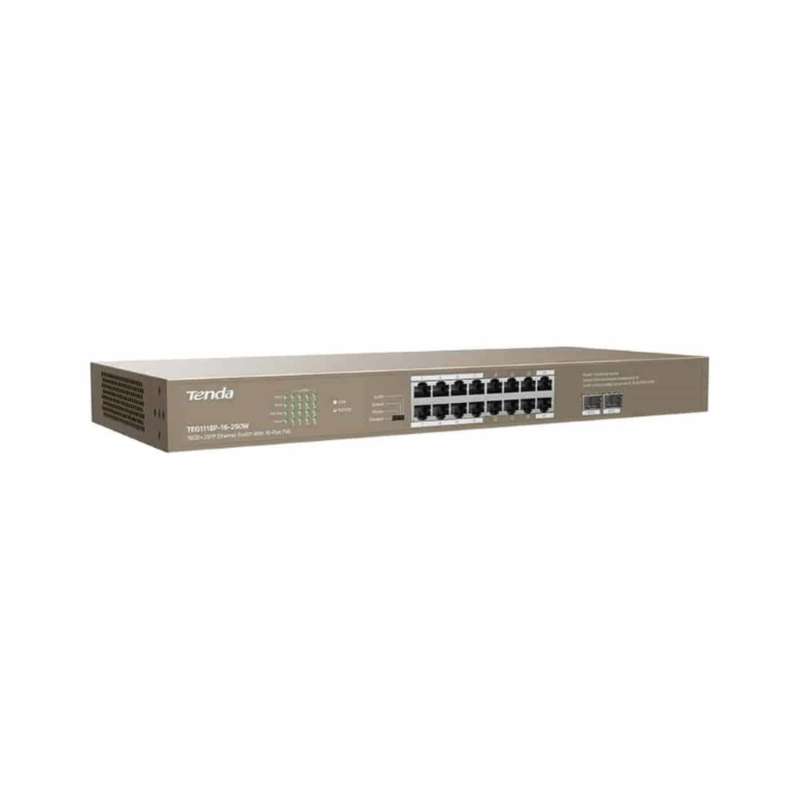

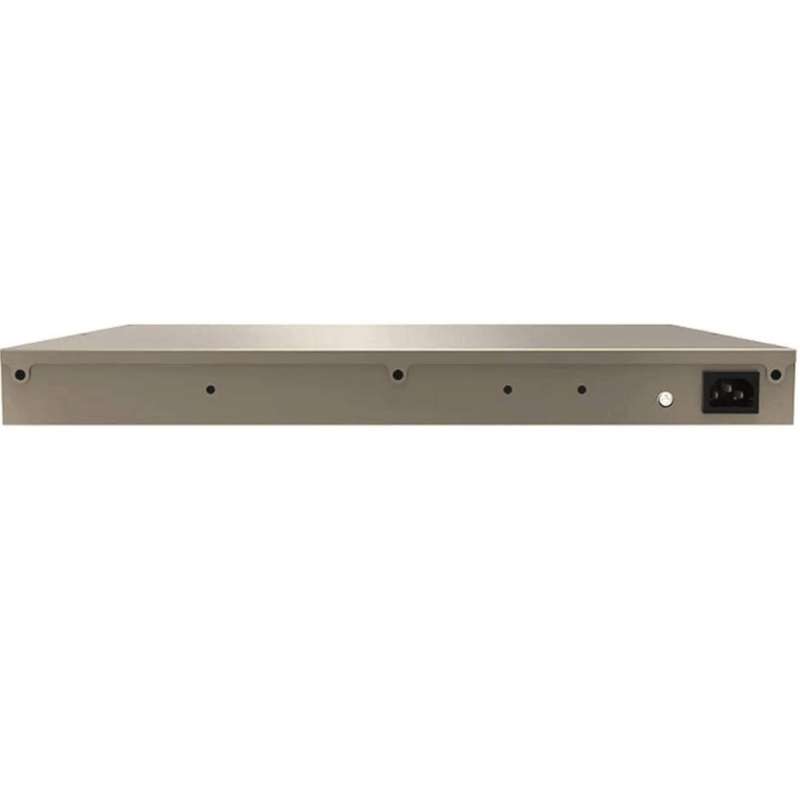

Tenda PoE 18-Port Unmanaged 1U Network Switch Brown
TEG1118P-16-250W is a unmanaged PoE switch independently designed by Tenda. Compliant with IEEE 802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelligently. With a maximum PoE power output of 230W, and 30W for a single port, it can supply power when transmitting data with APs, IP cameras, and IP phones. The switch supports 4 working modes, including standard, priority, extend and VLAN modes, is an ideal choice for SMBs, hotels, schools, factories with video surveillance and wireless networking requirements.
Long-distance Lossless Transmission
With two 1000 Mbps SFP slots, the switch can meet the current demand for uplink bandwidth of Gigabit WLAN and HD digital surveillance. Working with Tenda optical fiber module TEG311SM, the switch supports a maximum transmission distance up to 20km.
4 Modes For More Scenarios, One-key To Change Smart And Easy
Standard mode, Priority mode, VLAN mode and Extend mode make TEG1118P-16-250W be able to deal with different networks, special for small & Medium-sized IP Surveillance & WI-FI coverage project.
Standard Mode
Default mode of the switch. In this mode, it works as an unmanaged switch;
all ports can communicate with each other separately.
Priority Mode
In this mode, port15,16,SFP1,SFP2 serve as uplink ports,
ports 1—8 serve as high priority port. All ports can communicate with each other separately.
Extend Mode
In this mode, data rate of ports 9-14 reduces to 10 Mbps,
the maximum transmission distance can be 250 meters, and all ports can communicate with each other.
VLAN Mode
In this mode, ports 1 to 14 of the switch can communicate with port 15, 16, SFP1,
SFP2 separately, but cannot communicate with each other.
You can enable this mode to reduce broadcast storm and isolate DHCP broadcast.
6KV Excellent Lightning Protection
The switch offers various safety and protection types, including 6 KV lightning protection, PSE short-circuit protection, PoE overload protection, surge current protection etc, and these greatly protect the switch from being damaged by inductive thunderstorm.
Specifications:
- Network standards: IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/ IEEE 802.3af/IEEE 802.3at
- Interfaces: 16*10/100/1000 Base-T ports(Data/Power)
- Forwarding mode: Store-and-forward
- Switch capacity: 36bps
- Packet forwarding rate: 26.8Mpps
- Buffer: 2M
- MAC address table: 8K
- Transmission media: Recommended: CAT5/5e UTP or better
- Fan quantity: 1
- Dimension: 440*178.8*44mm
LED Indicator:
- 16 * Link/Act LEDs
- 2 * SFP LED
- 1 * PoE-MAX LED
- 1 * Power LED
Level of protection:
- Lightning protection for ports: 6kV
- Lightning protection for power: 6kV
- ESD:
- Air discharge: ±10kV
- Contact discharge: ±8kV
