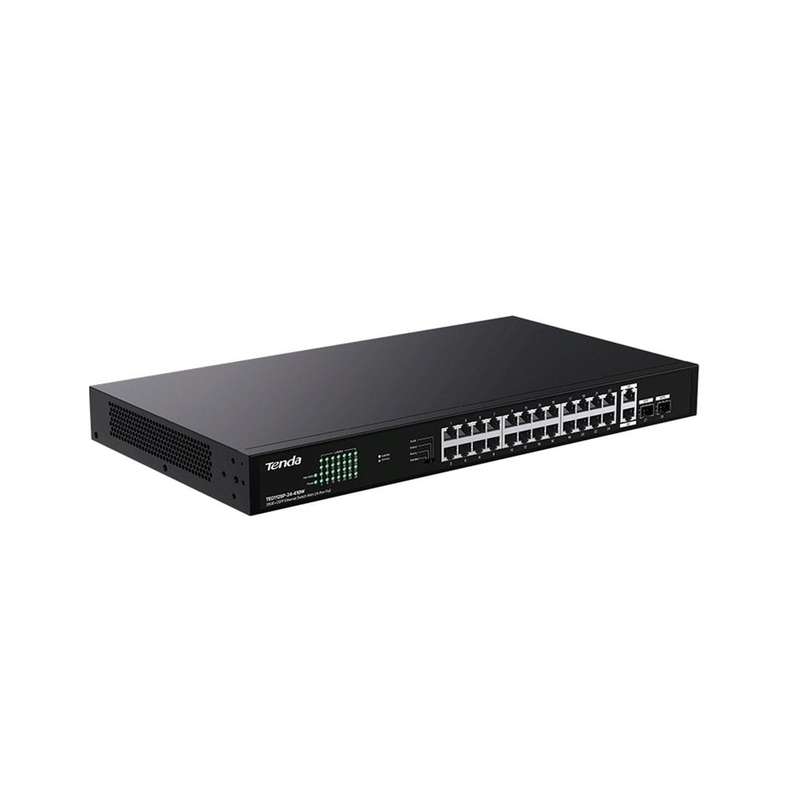

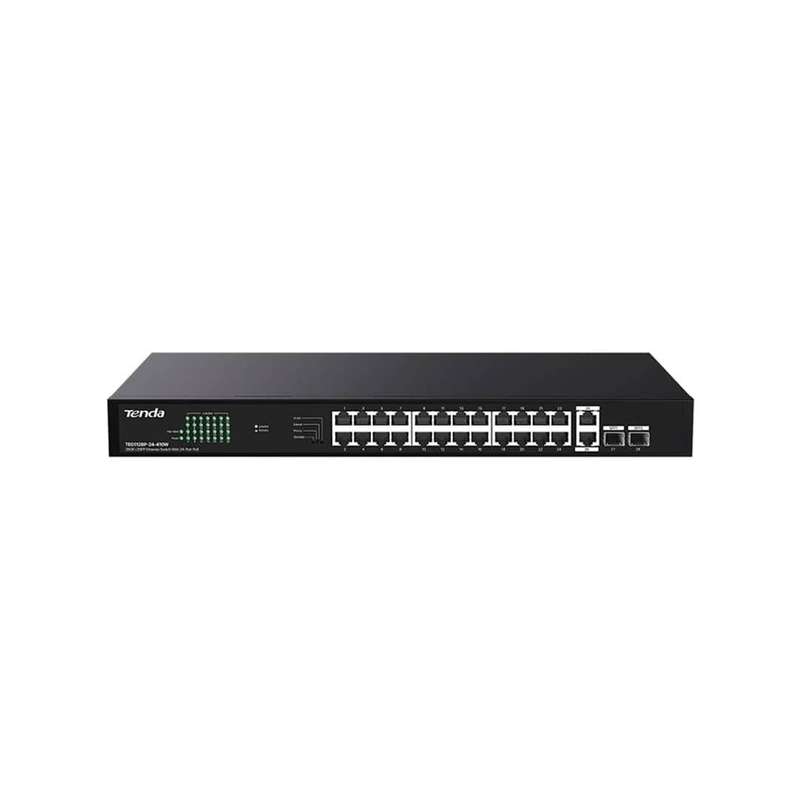

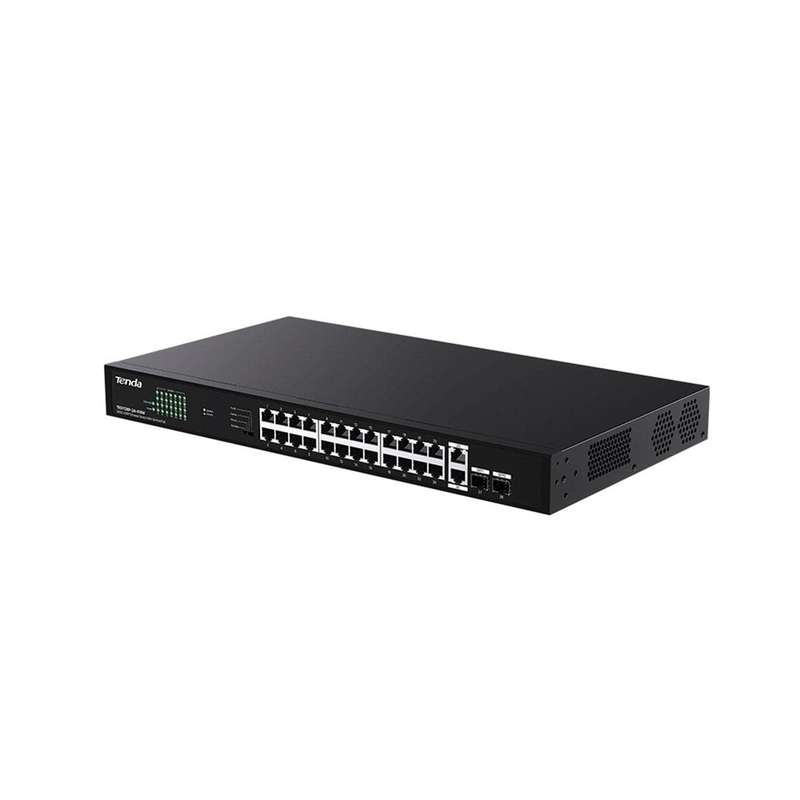

Tenda TEG1128P-24-410W 24-port GbE PoE Unmanaged Network Switch with 2x GbE and 2x SFP Ports
Dedicated for SMB Networking & Surveillance
26GE+2SFP Ethernet Switch with 24-Port PoE
Features
High speed network transmission, Experience extreme smoothness
Full gigabit ports, 56 Gbps non-blocking line speed forwarding, mprove the forwarding rate of large files, ensure smooth and stable transmission of large files and HD videos.
GE and SFP Uplink Ports, Easier HD Monitoring
With two gigabit uplink port and two gigabit uplink optical fiber port, easily complete low-cost remote networking.
Smart PoE Power Supply, Stable Transmission
Providing 24x 100/1000M PoE ports in accordance with the IEEE802.3AF / AT standard, the maximum PoE output of the whole machine is 370W, and of a single port is 30W. It can provide stable power supply and data transmission for HD PoE IP cameras, APs, etc.
- 410W Power consumption
- 30W Max. PoE of single port
4 Modes for More Scenarios, One-key To Change Smart and Easy
The switch supports 4 working modes of Standard, VLAN, Priority and Extend, realizing flexible network deployment in complex cases with lowered cost.
Standard Mode
All ports can communicate with each other. It can be used as a common non-management PoE switch.
Priority Mode
Ports 1 to 8 are high-priority ports, which greatly reduce packet loss and congestion when the network is congested.
Extend Mode
The maximum transmission distance of the 17-24 ports of the switch can reach 250 meters, and all ports can communicate with each other.
VLAN Mode
Ports 1 to 24 cannot communicate with each other, but can communicate with ports 25, 26, SFP1 (27), and SFP2 (28), which can be used to isolate broadcast storms and DHCP conflicts.

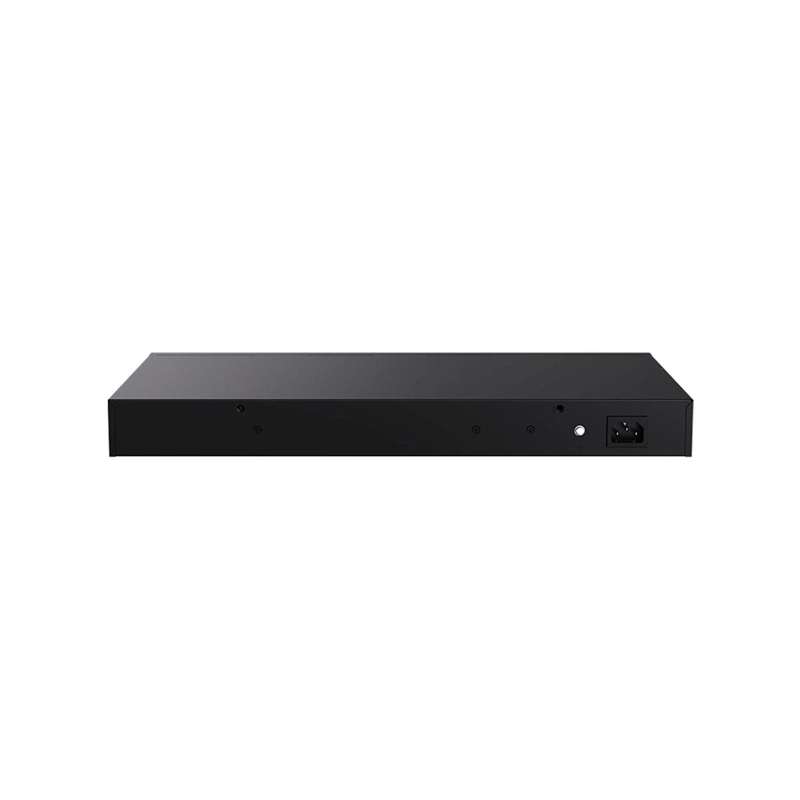

Standard 19-inch metal body design
Quick and easy Internet settings, simple enough for you to set up office networking, 19-inch body design, and support desktop, wall and rack mounting.
6KV Excellent Lightning Protection
The switch supports 6 kV lightning protection for ports and the power supply, reducing the risk of inductive lightning and ensuring stable operation even under thunderstorms.
Technical Specification
Product: Tenda TEG1128P-24-410W Switch
Management: Unmanaged
Network standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.3af
- IEEE 802.3at
Interfaces: 26x 1GE RJ45 ports ; 2x 1GE SFP ports
Forwarding mode: Store-and-forward
Switch capacity: 56Gbps
Packet forwarding rate: 41.7Mpps
Buffer: 4Mb
MAC address table: 8K
Number of PoE ports: 24x
PoE budget
- Single port: AF: 15.4W, AT: 30W
- Whole device: 370W
Power consumption: 410W
Fan quantity: 1
Rack mounting: Support
Desktop mounting: Support
Wall mounting: Support
Level of protection for Port: 6 KV
Level of protection for Power: 6 KV
