Tenda Switch L2 24 Port

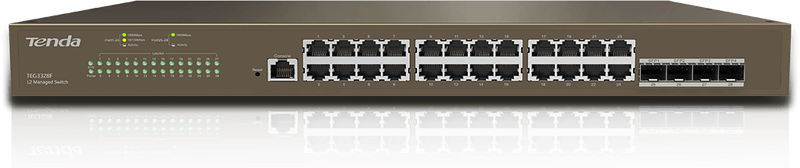

The Tenda TEG3328F is a Layer 2 managed Gigabit Ethernet switch designed to meet the networking needs of medium to large-scale enterprises, hotels, and campus networks. Equipped with 24 Gigabit RJ45 ports and 4 Gigabit SFP slots, it offers a total of 28 ports, providing high-density connectivity and flexibility for various network deployments. With a switching capacity of 56 Gbps and a 12MB buffer, the TEG3328F ensures efficient data transmission and handles burst traffic effectively. Advanced features such as DHCP Snooping, Access Control Lists (ACLs), and dual-image firmware backup enhance network security and reliability. The switch also supports topology visualization, allowing for automatic network topology generation and device status monitoring, which simplifies network management and maintenance.

Key Features

• 28 Ports: 24 × 10/100/1000 Mbps RJ45 ports and 4 × 1000 Mbps SFP slots for flexible network expansion.

• High Performance: 56 Gbps switching capacity and 41.7 Mpps forwarding rate ensure smooth data handling.

• Large Buffer: 12MB buffer memory accommodates burst traffic without packet loss.

• Advanced Security: Supports DHCP Snooping, IP/MAC/ARP filtering, DoS attack defense, and Layer 2/3 ACLs to safeguard network integrity.

• Dual-Image Firmware: Ensures system stability and quick recovery in case of firmware issues.

• Topology Visualization: Automatically generates network topology maps and monitors device statuses via ONVIF and LLDP protocols.

• Flexible Management: Offers management through Web UI, CLI, SNMP v1/v2/v3, Telnet, and TFTP.

• Robust Design: 1U rackmountable metal chassis with 6KV lightning protection and 8KV ESD protection for reliable operation in various environments.

Technical Specifications

• Network Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1p, 802.1Q, 802.1w, 802.1D, 802.1s

• Interfaces: 24 × 10/100/1000 Mbps RJ45 ports, 4 × 1000 Mbps SFP slots, 1 × RJ45 console port

• Switching Capacity: 56 Gbps

• Forwarding Rate: 41.7 Mpps

• MAC Address Table: 16K entries

• Buffer Size: 12 MB

• Jumbo Frame Support: Up to 10 KB

• VLAN Support: Up to 4,000 VLANs

• Management Protocols: SNMP v1/v2/v3, Telnet, HTTP, TFTP, CLI

• Security Features: DHCP Snooping, IP/MAC/ARP filtering, DoS defense, ACLs, 802.1x authentication

• Power Supply: Internal AC 100240V, 50/60Hz

• Power Consumption: 24W

• Dimensions: 440 mm × 179.6 mm × 44 mm

• Mounting Options: Rackmount, desktop, wall-mountable

• Operating Temperature: 0°C to 45°C

• Storage Temperature: -40°C to 70°C

• Operating Humidity: 10% to 90% RH non-condensing

• Storage Humidity: 5% to 90% RH non-condensing

• Certifications: FCC, CE, RoHS
