Tenda TEG5328P-24-410W. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP modules quantity: 4, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Wall mountable, Rack mounting, Form factor: 1U

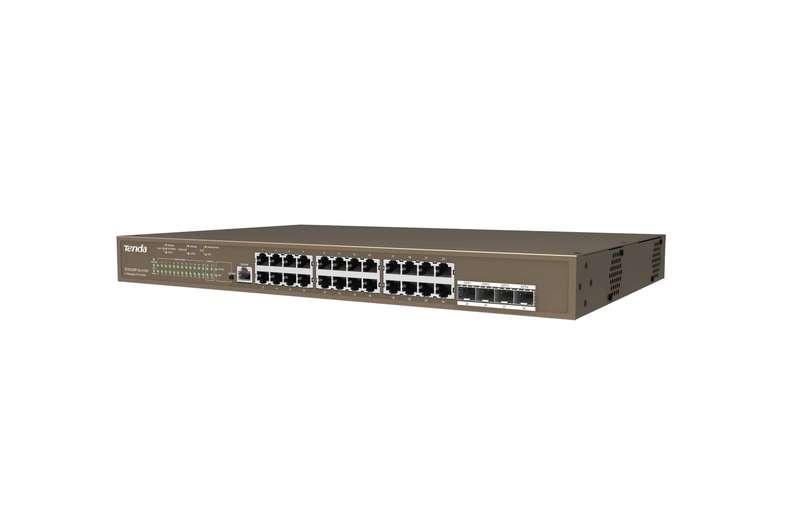

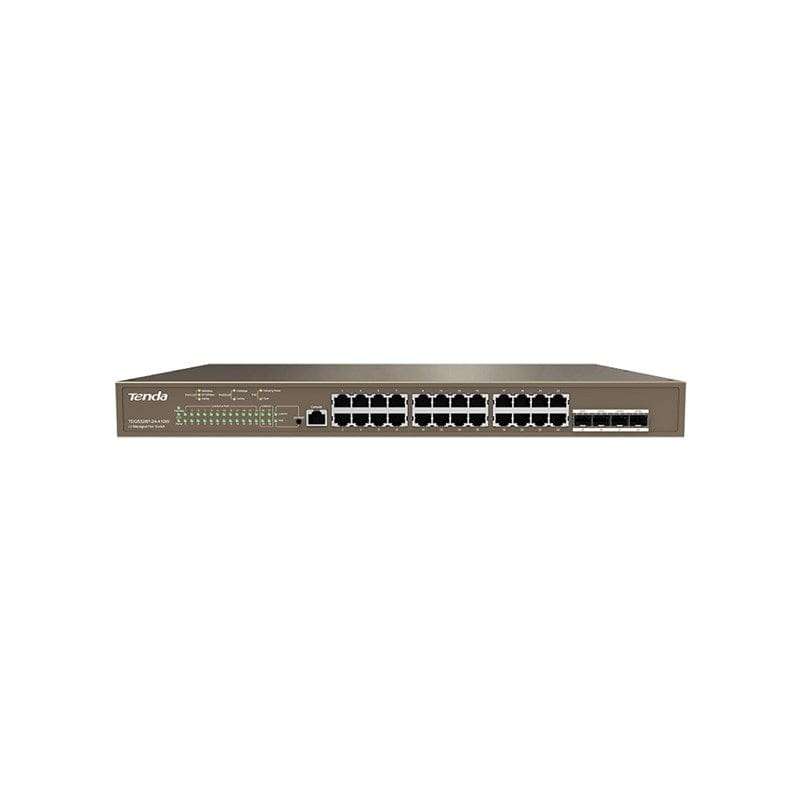

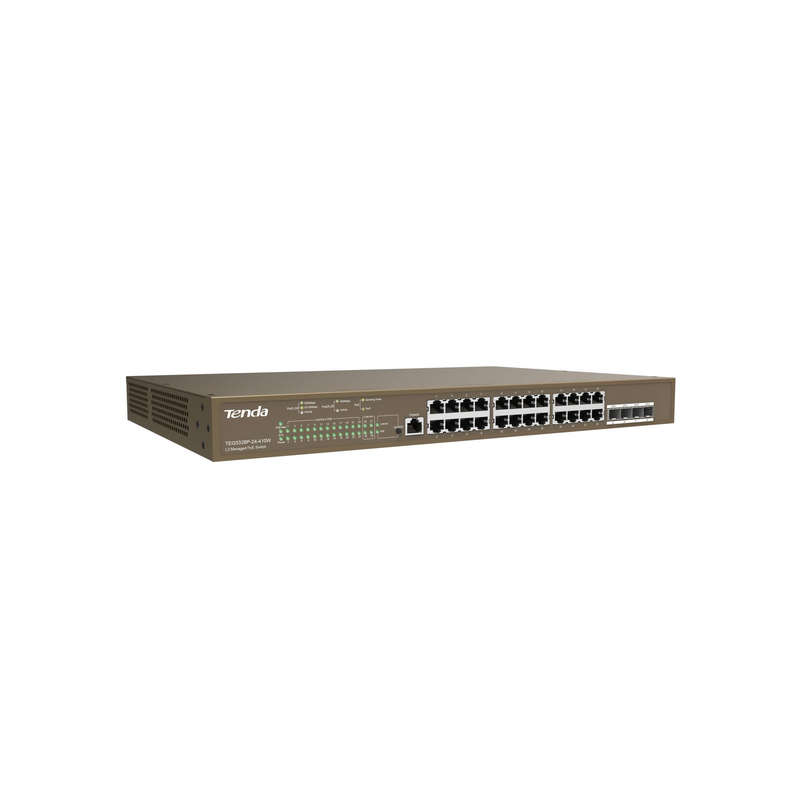

TEG5328P-24-410W is a Tenda Layer-3 managed PoE switch. To meet the demand of high-performance access, the switch provides 24 10/100/1000 Mbps Base-T Ethernet ports and 4 separate 1000 Mbps Base-X SFP ports, and a PoE power of up to 370 W.With an innovative hardware structure and software platform, it features a powerful processing capacity and complete security protection mechanism, making management and maintenance easy and simple, fully meeting the demands of high-density user access and high-performance aggregation, ideal for the aggregation layer or access layer of such medium to large networks as enterprises and campuses. L3 Managed PoE Switch Layer-3 Routing Engine,High-Efficiency Fast Forwarding Supports Layer 3 static routing protocols, supports Layer 3 forwarding of up to 400+ terminals, easily meets Layer 3 routing andforwarding across network segments, and truly achieves Layer 2 network isolation and Layer 3 network interworking. Comparedwith using a Layer 2 switch for transmission, there is no need to go through a router, and the forwarding speed is faster! 370W Smart PoE Power Supply, 2 Times Load Capacity Using a new 410W built-in PoE power, the number of AF / AT full-supply loads is twice than the ordinary low-power PoE switches!At the same time, the built-in PSE chip with intelligent power management function can monitor the temperature of the chip and customize the PoE power supply based on the time period. The device will automatically turn on / off the PoE function during working hours and idle time to minimize energy consumption and extend the service life of the device. Flexible QoS, Precise Traffic Control The TEG5328P-24-410W supports three QoS scheduling modes (SP, SWRR, WRR) for more accurate traffic control. After the QoS function is enabled, the traffic in the network will be precisely controlled according to the priority of the label. It will prioritize important traffic and reduce the proportion of data flows that occupy a large amount of insignificant traffic in the condition of limited bandwidth,in order to better meet the current transmission needs. Supports Layer 2 And Layer 3 ACL,For More Secure Access Support strict access control based on MAC address or IP address, which can filter the corresponding data packets to enhance user network security. It can be used for network deployment of enterprise medical and other units. Multiple Attack Defenses, Multiple Security Blessings Support IP / MAC / ARP filtering / DoS attack protection, enable attack protection according to networking requirements, bring multiple layers of protection to user network security, and ensure network stability and failure-free.
