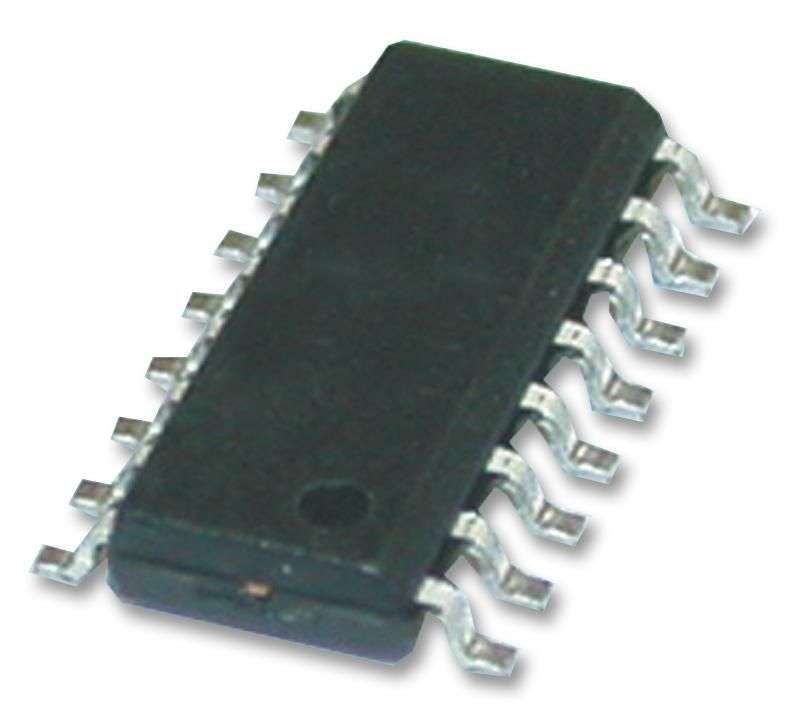

Texas Instruments (MAX232ECDR) Transceiver, RS232, 2 Drivers

Product OverviewThe MAX232ECDR is a RS-232 dual Driver/Receiver includes a capacitive voltagegenerator to supply TIA/RS-232-F voltage levels from a single 5V supply. Eachreceiver converts TIA/RS-232-F inputs to 5V TTL/CMOS levels. This receiver has atypical threshold of 1.3V, a typical hysteresis of 0.5V and can accept ±30Vinputs. Each driver converts TTL/CMOS input levels into TIA/RS-232-F levels.Operates up to 250kbps1µF Charge-pump capacitor±30V Input level8mA Typical low supply current300R at ±2V (VO) Output resistanceGreen product and no Sb/BrApplicationsPortable Devices, Communications & Networking, Computers & Computer PeripheralsProduct InformationDevice Type: RS232 TransceiverIC Interface Type: RS232No. of Drivers: 2DriversNo. of Receivers: 2ReceiversSupply Voltage Min: 4.5VSupply Voltage Max: 5.5VDriver Case Style: SOICNo. of Pins: 16PinsOperating Temperature Min: 0°COperating Temperature Max: 70°CProduct Range: -Automotive Qualification Standard: -MSL: MSL 1 - Unlimited
