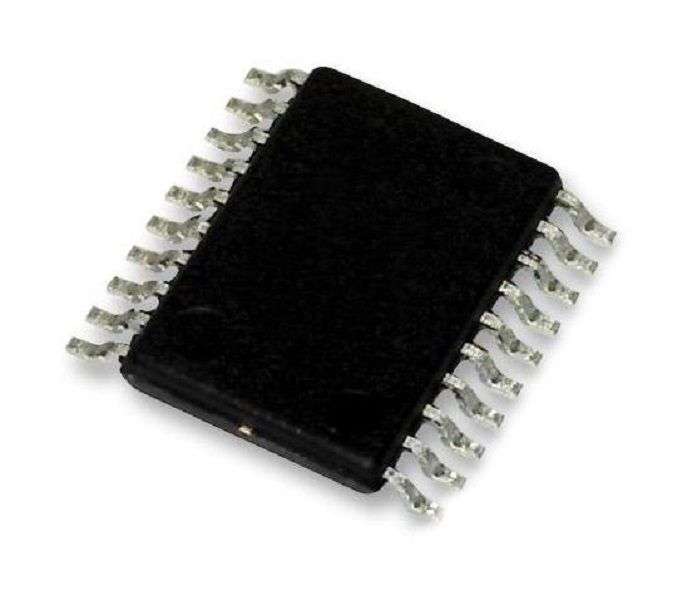

Texas Instruments (TPS54313PWP) Buck Step Down Switching Regulator

Synchronous Buck Step Down Switching Regulator, Fixed, 3V-6V In, 1.5V And 3AOut, 550 kHz, HTSSOP-20Product OverviewThe TPS54313PWP is a SWIFT step-down PWM synchronous Buck Converter integratesall required active components. Included on the substrate with the listedfeatures are a true, high performance, voltage error amplifier that provideshigh performance under transient conditions, an undervoltage-lockout circuit toprevent start-up until the input voltage reaches 3V, an internally andexternally set slow-start circuit to limit in-rush currents and a powergoodoutput useful for processor/logic reset, fault signalling and supply sequencing.It incorporates an UVLO circuit to keep the device disabled when the inputvoltage (VIN) is insufficient. During power up, internal circuits are heldinactive until VIN exceeds the nominal UVLO threshold voltage of 2.95V. Once theUVLO start threshold is reached, device start-up begins. The device operatesuntil VIN falls below the nominal UVLO stop threshold of 2.8V.Internally compensated for low parts countFast transient responseLoad protected by peak current limit and thermal shutdownIntegrated solution reduces board areaGreen product and no Sb/BrApplicationsCommunications & Networking, Computers & Computer Peripherals, Fibre Optics,Power ManagementProduct InformationTopology: Synchronous Buck (Step Down)Input Voltage Min: 3VInput Voltage Max: 6VDC / DC Converter IC Case: HTSSOPNo. of Pins: 20PinsOutput Current: 3AOutput Voltage Nom: 1.5VSwitching Frequency: 550kHzOperating Temperature Max: 85°CMSL: MSL 2 - 1 year
