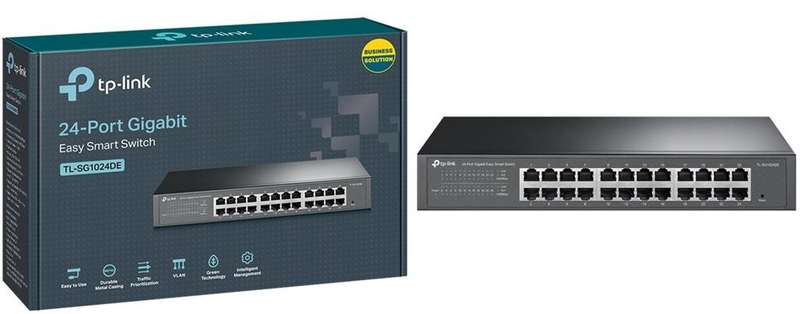

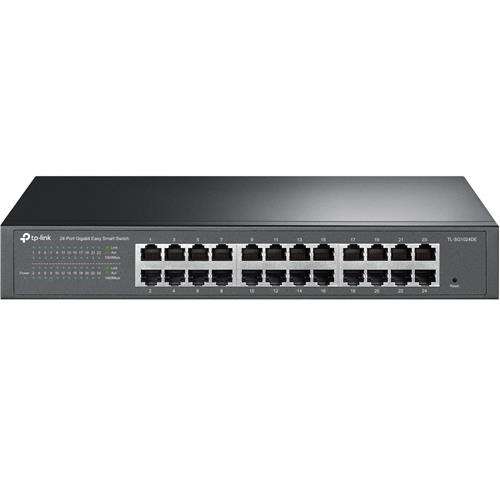

TP-Link 24-Port Gigabit Easy Smart Switch, Retail Box, 1 year Limited Warranty
Product Overview
The TP-Link 24-Port Gigabit Easy Smart Switch offers 24 10/100/1000Mbps RJ45 ports, enabling efficient network monitoring and traffic prioritization with VLAN features. Its innovative energy-efficient technology reduces power consumption by up to 18%, making it an environmentally friendly choice.
Specifications
Product code: TL-SG1024DE
Description: TP-Link 24-Port Gigabit Easy Smart Switch
Interface 24 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock No
Power Supply 100-240VAC, 50/60Hz
Dimensions ( W x D x H ) 11.6 × 7.1 × 1.7 in (294 × 140 × 44 mm)
Mounting Rack Mountable
Max Power Consumption 15.56W (220V/50Hz)
Max Heat Dissipation 50.06 BTU/h
Switching Capacity 48Gbps
Packet Forwarding Rate 35.7Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1Mbit
Jumbo Frame 10KB
Quality of Service Support Port-based/802.1p/DSCP priority
Support 4 priority queues
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward
