Brand New & Sealed with Manufacturer Warranty

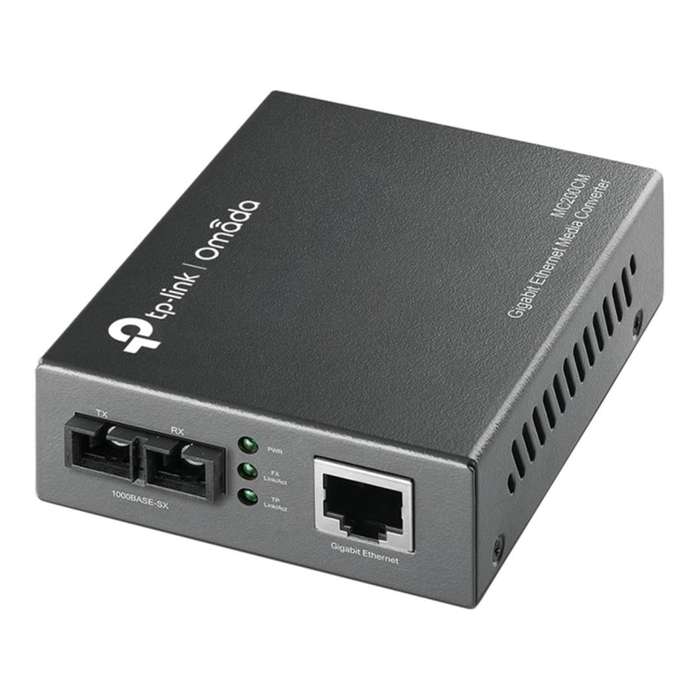

TP-Link Omada MC200CM Gigabit Multi-Mode Media Converter

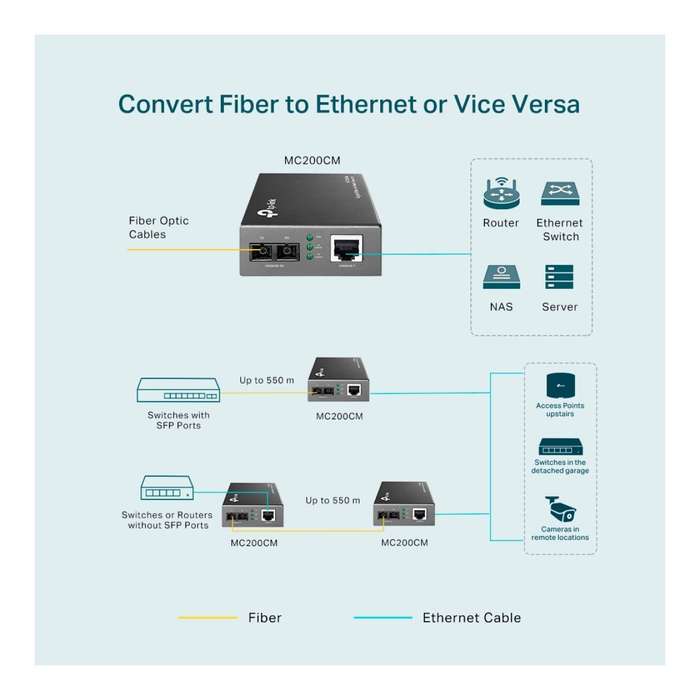

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data
Features:
Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1,800 feet (550 meters).
Technical Specifications:
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Basic Function
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Extends fiber distance up to 0.55 km using 50/125 m fiber
Extends fiber distance up to 0.22 km using 62.5/125 m fiber

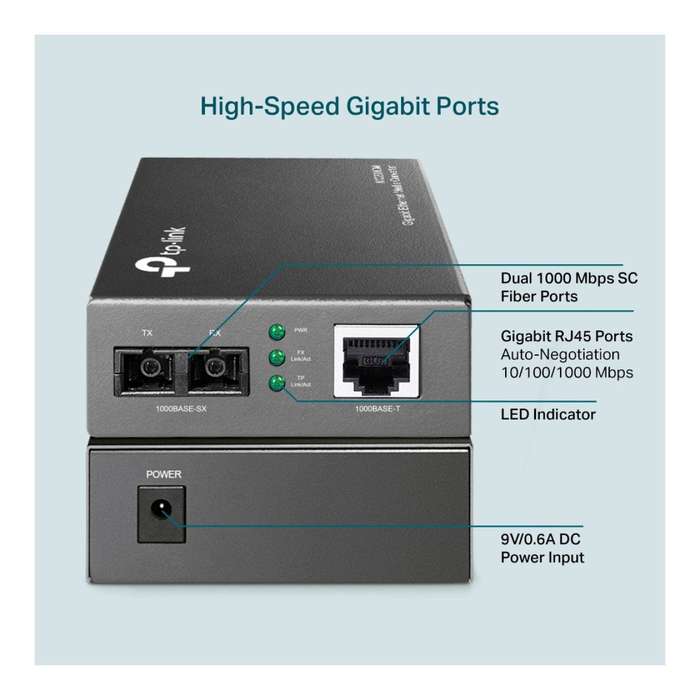

Interface
1× 1000M SC/UPC port
1× 10/100/1000M RJ45 port (Auto MDI/MDIX)
Wavelength
850 nm
Network Media 1000BASE-SX

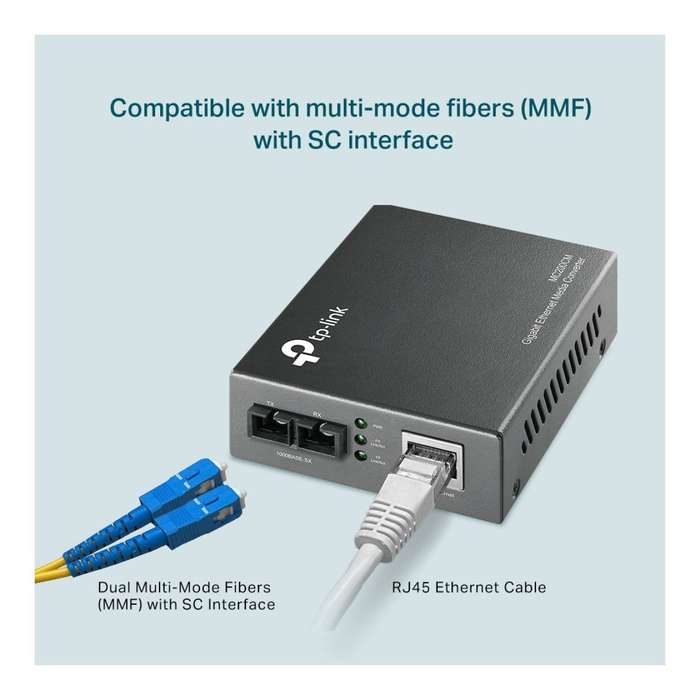

Multi-mode Fiber
Network Media 1000BASE-T
UTP Category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100 STP (maximum 100 m)

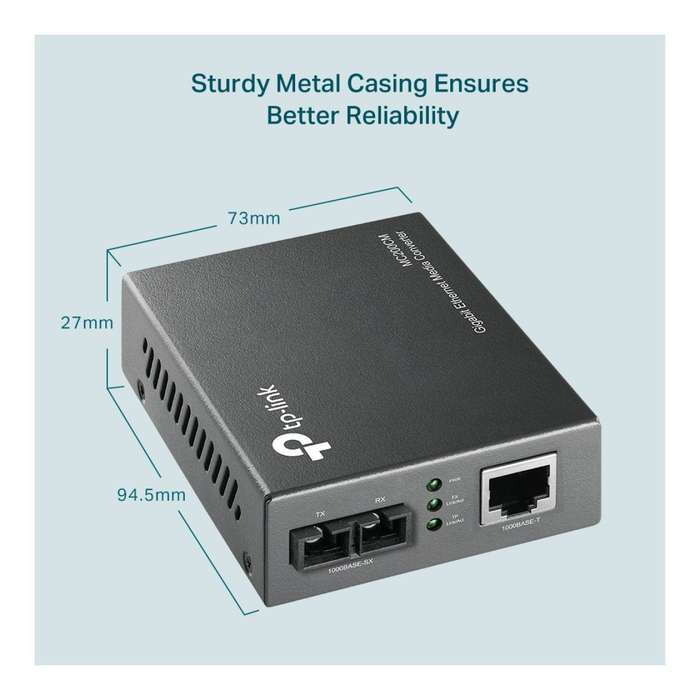

Dimensions (W × D × H)
3.7 × 2.9 × 1.1 in (94.5 × 73.0 × 27.0 mm)
Power Supply
External Power Adapter
Max. Power Consumption
1.66 W
LED
PWR, Link/Act
Safety & Emission
FCC, CE, RoHS
Environment
Operating Temperature: 0⃠~ 40⃠(32â ~ 104â)
Storage Temperature: -40⃠~ 70⃠(-40â ~ 158â)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
What's in the Box:
