TP-Link TL-WA854RE 300Mbps Wi-Fi Range Extender

TP-Link 300Mbps Wireless N Wall Range Extender

Features:
- Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
- Miniature size and wall-mounted design make it easy to deploy and move flexibly
- Easily expand wireless coverage at a push of Range Extender button

Hardware Features:
- Plug Type: EU, UK, US

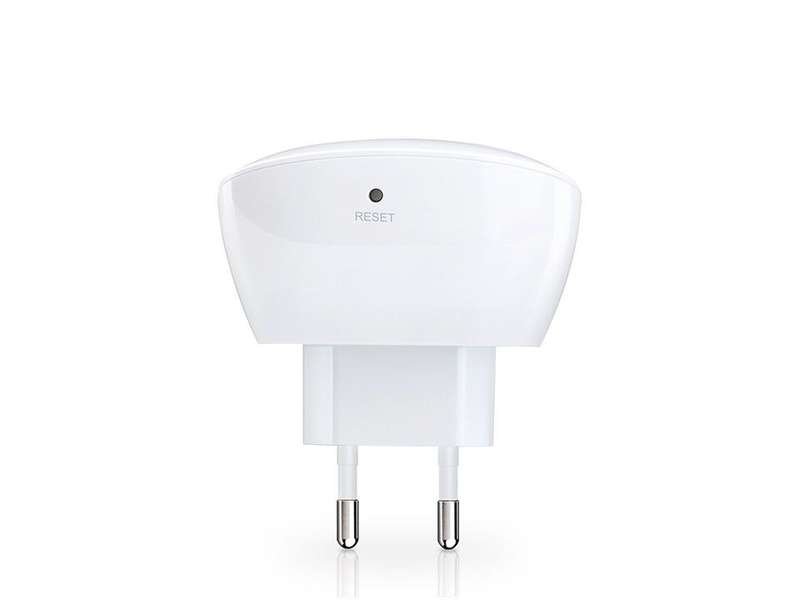

- Button: RE (Range Extender) Button, Reset Button
- Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Antenna: 2 Internal
- Dimensions (W x D x H): 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
- Power Consumption: About 3W

Wireless Features:
- Frequency: 2.4 2.4835GHz

Signal Rate:
- 11n: Up to 300Mbps (dynamic)
- 11g: Up to 54Mbps (dynamic)
- 11b: Up to 11Mbps (dynamic)

Reception Sensitivity:
- 270M: -68dBm at 10% PER
- 130M: -68dBm at 10% PER
- 108M: -68dBm at 10% PER
- 54M: -68dBm at 10% PER
- 11M: -85dBm at 8% PER
- 6M: -88dBm at 10% PER
- 1M: -90dBm at 8% PER

- Transmit Power: < 20 dBm (EIRP)
- Wireless Modes: Range Extender

Wireless Function:
- WMM (Wi-Fi Multimedia)
- Wireless MAC Address Filtering
- Wireless Statistic
- Domain Login Function

Wireless Security:
- 64/128/152-bit WEP
- WPA-PSK / WPA2-PSK

What's in the box
1 x 300Mbps Wi-Fi Range Extender TL-WA854RE
1 x Quick Installation Guide
