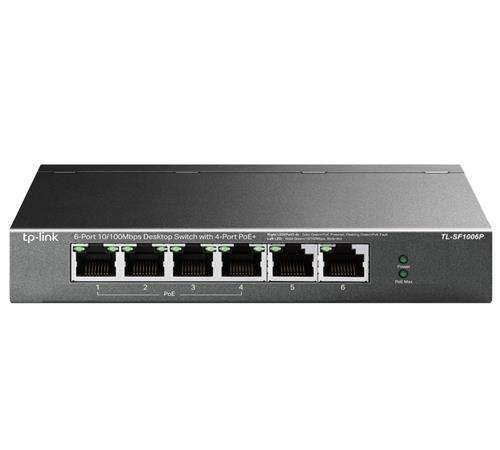

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+, Retail Box, 1 year Limited Warranty
Expand your network with the TP-Link TL-SF1006P. This versatile switch offers four PoE+ ports to power devices like IP cameras or VoIP phones, along with standard Ethernet ports for additional connections. Its compact design and plug-and-play setup make it ideal for small offices and home networks.
Features
6× 10/100 Mbps RJ45 ports
4× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Up to 250m data and power transmitting range under Extend Mode**
Priority Mode ensures high priority of ports 12 to guarantee the quality of sensitive application
Specifications
Product code: TL-SF1006P
Description: TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
6× 10/100 Mbps RJ45 Ports (ports 14 support 802.3af/at PoE+)
AUTO Negotiation
AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output: 53.5 V DC / 1.31 A)
Packet Forwarding Rate 0.8928 Mpps
PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Ports 14
Power Supply: 67 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1.2 Gbps
Dimensions ( W x D x H ) 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
Max Power Consumption
2.52 W (220 V / 50 Hz, no PD connected)
75.4 W (220 V / 50 Hz, with 67 W PD connected)
Max Heat Dissipation
8.59 BTU/h(no PD connected)
257.11 BTU/h(with 67 W PD connected)
Transmission Method Store-And-Forward
Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 14)
Priority Mode Button (Ports 12)
PoE Auto Recovery (Ports 1-4)
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
