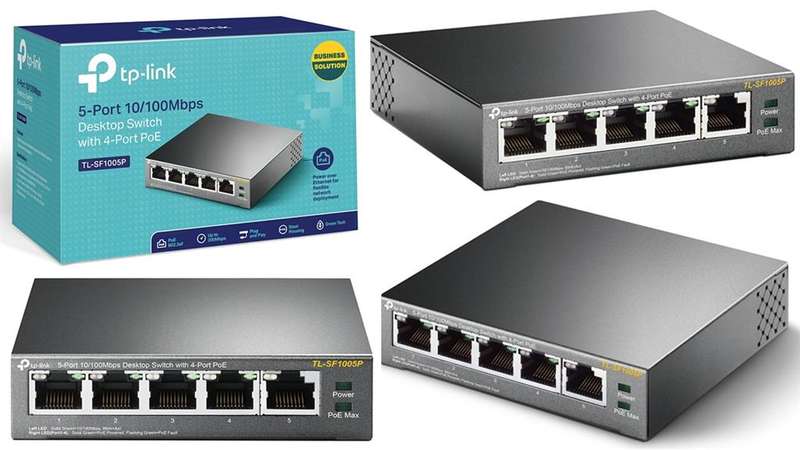

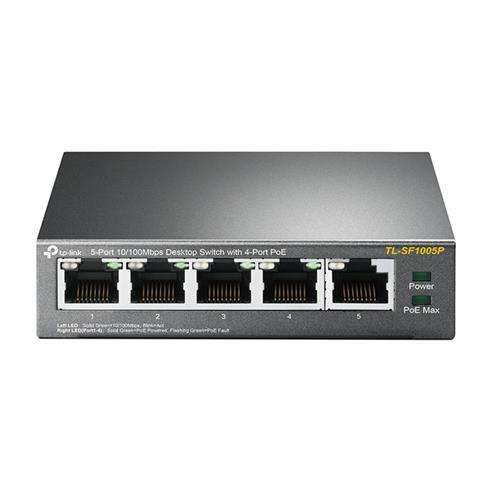

TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE, Retail Box, 1 year Limited Warranty
The TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE is designed to enhance your network connectivity while providing Power over Ethernet (PoE) capabilities. It features five auto-negotiation RJ45 ports, with four supporting PoE to power devices like IP cameras and access points, delivering up to 15.4W per port.
Product code:TL-SF1005P
Description: TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
Transmission Distance Store-And-Forward
Interface 5 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45) Standard: 802.3af (15.4W)
PoE Ports: Port1- Port4
Total PoE Budget: 58W
Mac Address Table 2K
Switching Capacity 1Gbps
Dimensions ( W x D x H ) 3.9 × 3.9 × 1.0 in.
(99.8 x 98 x 25 mm)
Max Power Consumption 1.7W (no PD load)
64.8W (with 58W PD load)
Max Heat Dissipation 5.7BTU/h(no PD load)
221.2BTU/h(with 58W PD load)
Transmission Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
