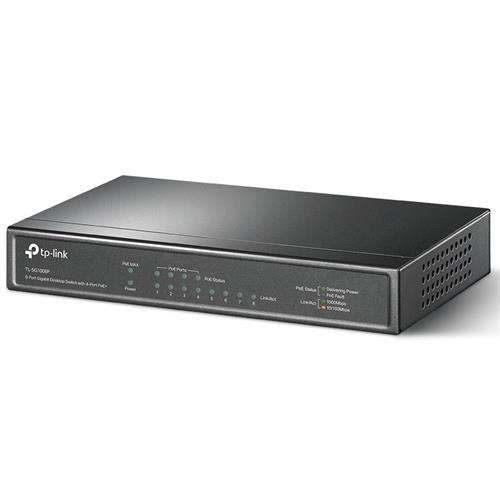

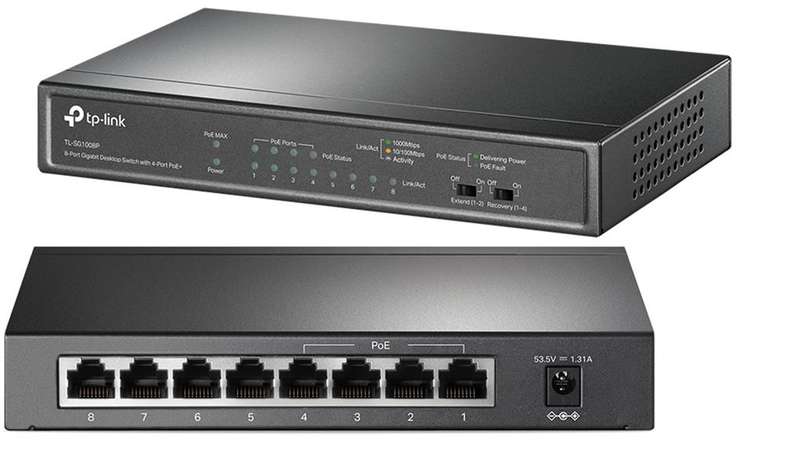

TP-Link 8-Port Gigabit Desktop Switch with 4-Port PoE+, Retail Box, 1 year Limited Warranty
Expand your network with the TP-Link TL-SG1008P. This versatile switch offers four PoE+ ports to power devices like IP cameras or VoIP phones, along with standard Ethernet ports for additional connections. Its compact design and plug-and-play setup make it ideal for small offices and home networks.
8× 10/100/1000 Mbps RJ45 ports.
4× PoE+ ports transfer data and power on the cables
Works with IEEE 802.3af/at compliant PDs
Plug and Play, no configuration and installation required
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE power up to 30 W for each PoE port
Specifications
Product code:TL-SG1008P
Description: TP-Link 8-Port Gigabit Desktop Switch with 4-Port PoE+
Interface 8× 10/100/1000 Mbps RJ45 Ports
AUTO Negotiation
AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External power adapter
(Output: 54VDC / 1.3A)
Packet Forwarding Rate 11.904 Mpps
PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: ports 14
Power budget for all PoE ports: 64 W
Mac Address Table 4K
Jumbo Frame 16 KB
Switching Capacity 16 Gbps
Dimensions ( W x D x H ) 6.7 × 3.9 × 1.1 in
(171×98×27 mm)
Max Power Consumption
5.4 W (with no PD connected)
75 W (with 64W PD connected)
Max Heat Dissipation
18.4 BTU/h (with no PD connected)
225.8 BTU/h (with 64 W PD connected)
Transmission Method Store-And-Forward
Compatible With IEEE 802.3af/at Compliant PDs
IGMP Snooping
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control
802.1p/DSCP QoS
