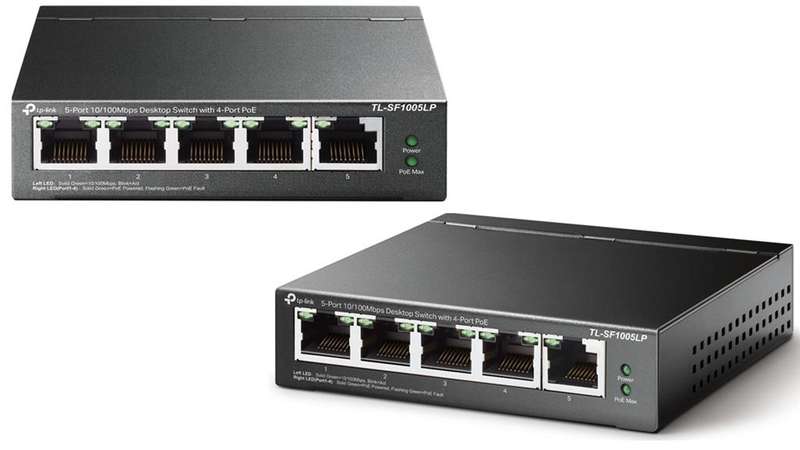

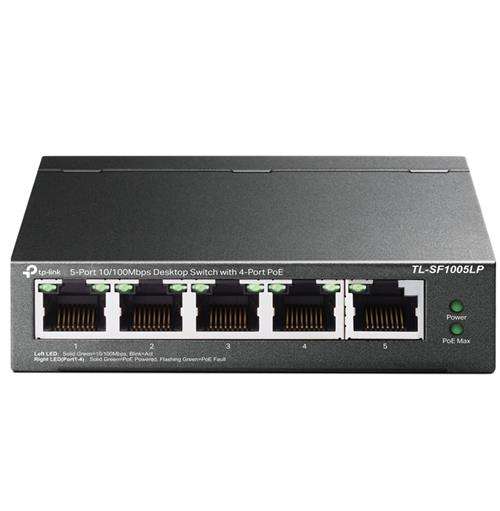

TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE, Retail Box, 1 year Limited Warranty
The TP-Link 5-Port 10/100Mbps Desktop Switch features five RJ45 ports, with four PoE ports that deliver both data and power over a single cable, supporting IEEE 802.3af compliant devices. It provides a maximum power output of 15.4W per port, making it suitable for powering devices like IP cameras and access points.
Product code:TL-SF1005LP
Description: TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
5× 10/100 Mbps RJ45 Ports (Ports 14 support 802.3af PoE)
AUTO Negotiation
AUTO MDI/MDIX
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output: 53.5 V DC / 0.81 A)
Packet Forwarding Rate 0.744 Mpps
PoE Ports (RJ45)
Standard: 802.3 af compliant
PoE Ports: Ports 14
Power Supply: 41 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1 Gbps
Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
1.9 W (220 V / 50 Hz, no PD connected)
47 W (220 V / 50 Hz, with 41 W PD connected)
Max Heat Dissipation
6.48 BTU/h(no PD connected)
160.27 BTU/h(with 41 W PD connected)
Transmission Method Store-And-Forward
Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 14)
Priority Mode Button (Ports 12)
Mac Address Auto-Learning And Auto-Aging
Jumbo Frame 2 KB
Switching Capacity 1 Gbps
Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
1.9 W (220 V / 50 Hz, no PD connected)
47 W (220 V / 50 Hz, with 41 W PD connected)
Max Heat Dissipation
6.48 BTU/h(no PD connected)
160.27 BTU/h(with 41 W PD connected)
Transmission Method Store-And-Forward
Advanced Functions
Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 14)
Priority Mode Button (Ports 12)
Mac Address Auto-Learning And Auto-Aging
