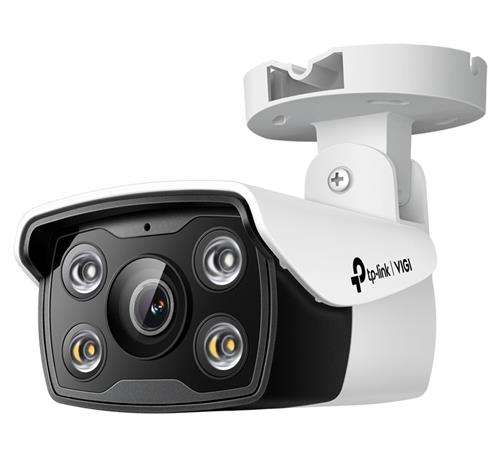

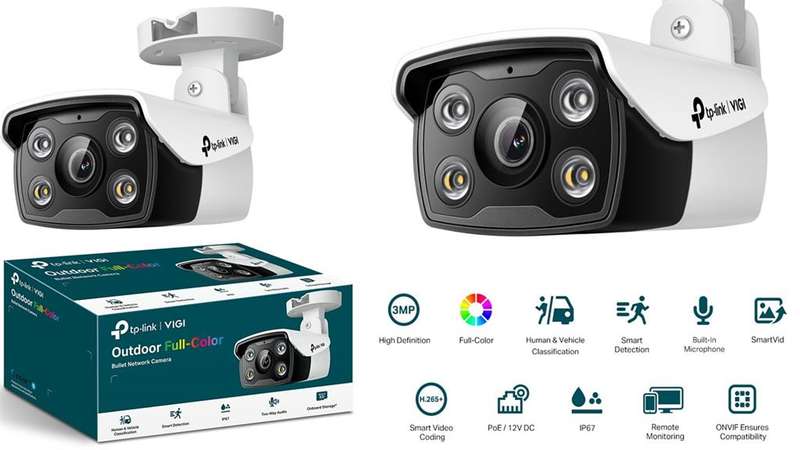

TP-Link VIGI 3MP 2.8mm Outdoor Full-Color Bullet Network Camera, Retail Box, 1 Year Warranty
The TP-Link VIGI captures clear 3MP color video day and night thanks to powerful night vision lights. Smart features like human/vehicle detection and two-way audio (sold separately) keep you informed and in control.
Product code: VIGI-C330(2.8MM)
Description: TP-Link VIGI 3MP 2.8mm Outdoor Full-Color Bullet Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Lens 2.8 mm
Day/Night Switch Day/Night/Auto/Schedule-Switch
Digital Noise Reduction 3D DNRR
Weatherproof Rating IP67
IR Working Distance 30m
Shutter Speed 1/3 to 1/10000 s
Aperture 2.8 mm: F1.6
4 mm: F1.6
6 mm: F1.6
Lens Mount M12
Viewing Angle 2.8mm: 107.5°/57.2°/128.7°(H/V/D)
4mm: 89.1°/45.1°/106.9°(H/V/D)
6mm: 55.1°/30.2°/64°(H/V/D)
Slow Shutter Yes
Operating Temperature -3060 °C
Storage Temperature -4060 °C
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Gross Weight 0.4 Kg
Power Consumption 12V DC: Max 5.4W
PoE: Class 0
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
Protection IP67
Product Dimensions (L x W x H) 174 × 78 × 71 mm
Resolution: 704x576, 640x480, 352x288, 320x240
Max. Resolution 3MP (2304 × 1296)
Region of Interest 1 Region
IR LED Quantity: 2
Range: 30m
Wavelength: 850nm
Type Fixed Focal Lens
Focal Length 2.8mm
Aperture F1.6
DORI Distance 2.8 mm:
Detect: 52 m (170 ft)
Observe: 22 m (71 ft)
Recognize: 10 m (34 ft)
Identify: 5 m (17 ft)
Detect: 70 m (230 ft)
Observe: 29 m (96 ft)
Recognize: 14 m (46 ft)
Identify: 7 m (23 ft)
Detect: 100 m (327 ft)
Recognize: 20 m (65 ft)
Range Pan: -90° to 90°
Tilt: -90° to 90°
