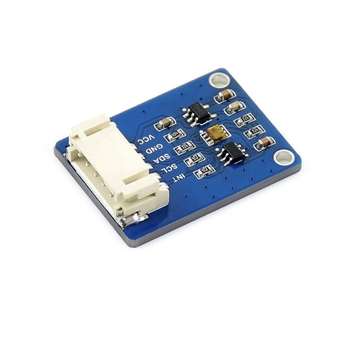

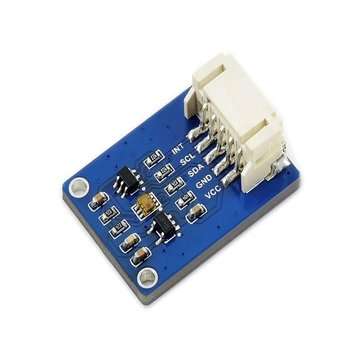

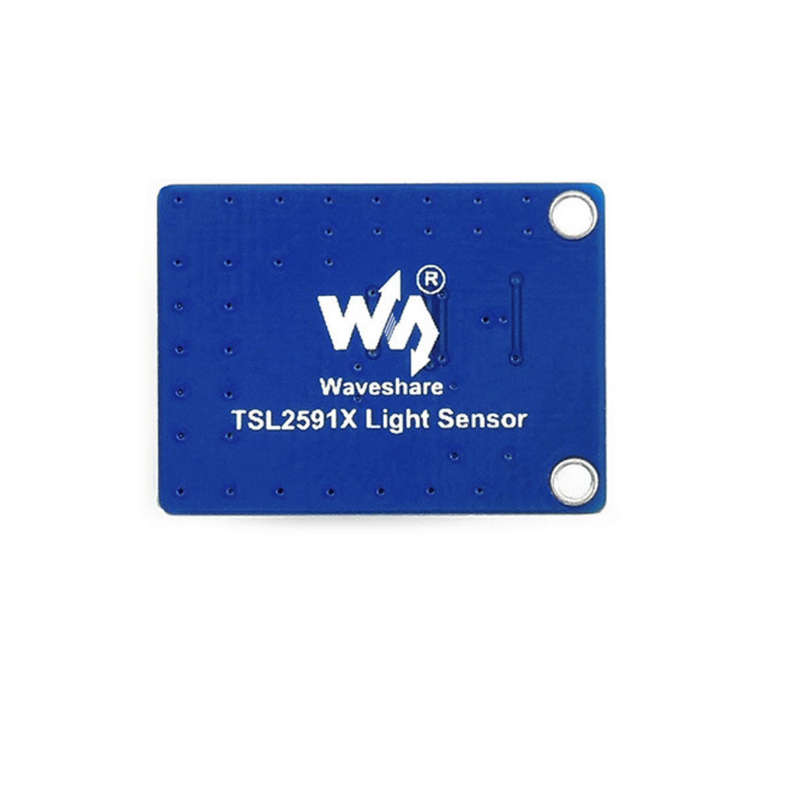

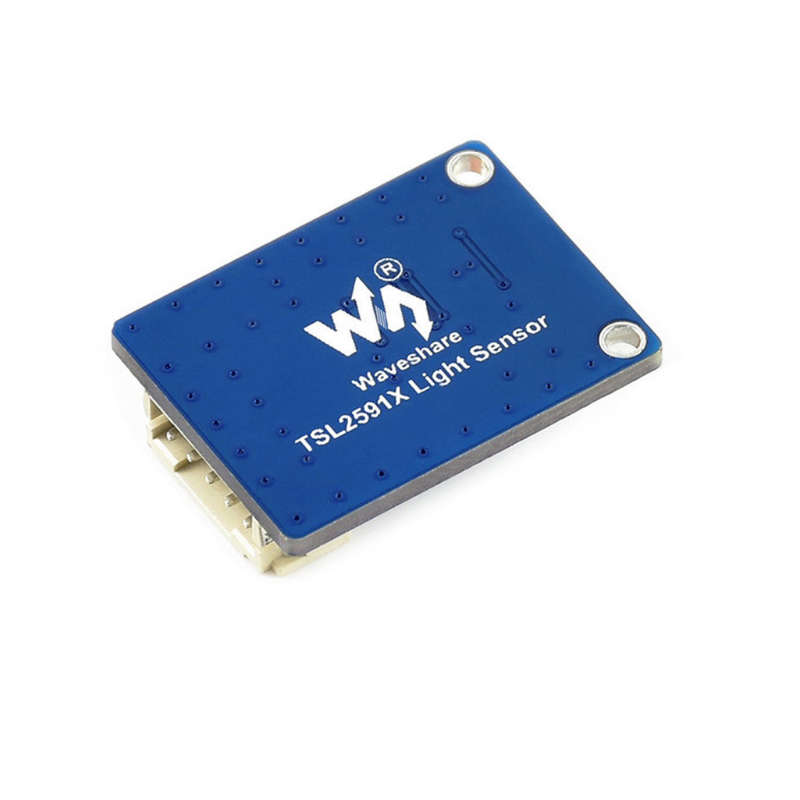

TSL2591X Light Sensor with PH2.0 5PIN Cable 600M:1 Wide Dynamic Range 88000Lux I2C Interface 3.3V 5V TSL2591X Light Sensor with PH2.0 5PIN Cable 600M:1 Wide Dynamic Range 88000Lux I2C Interface 3.3V 5V TSL2591X Light Sensor with PH2.0 5PIN Cable 600M:1 Wide Dynamic Range 88000Lux I2C Interface 3.3V 5V
TSL2591X Light Sensor with PH2.0 5PIN Cable 600M:1 Wide Dynamic Range 88000Lux I2C Interface 3.3V 5V TSL2591X Light Sensor with PH2.0 5PIN Cable 600M:1 Wide Dynamic Range 88000Lux I2C Interface 3.3V 5V TSL2591X Light Sensor with PH2.0 5PIN Cable 600M:1 Wide Dynamic Range 88000Lux I2C Interface 3.3V 5V

TSL2591X Light Sensor with PH2.0 5PIN Cable 600M:1 Wide Dynamic Range 88000Lux I2C Interface 3.3V 5V

20 available / new
R462.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643390348
Features:


Work with TSL25911FN,Compatible with Infrared Ray and Human Visible Light (Better than TSL2561)
Built-in ADC, Directly Output through I2C Interface, Great Anti-interference Performance
Level of Sensitivity up to 188uLux 600M:1 Wide Dynamic Range
Built-in Infrared Photodiode and Bandwidth Photodiode.Accurate Measuring Performance
With Interrupt Output,Upper and Lower Threshold Could Be Programmed
Electric Level Switch Circult Included


Specifications:

Sensor: TSL25911FN
Communication Interface: I2C (Address:0x29)
Range:0-88000Lux
Working Voltage:3.3V/5V

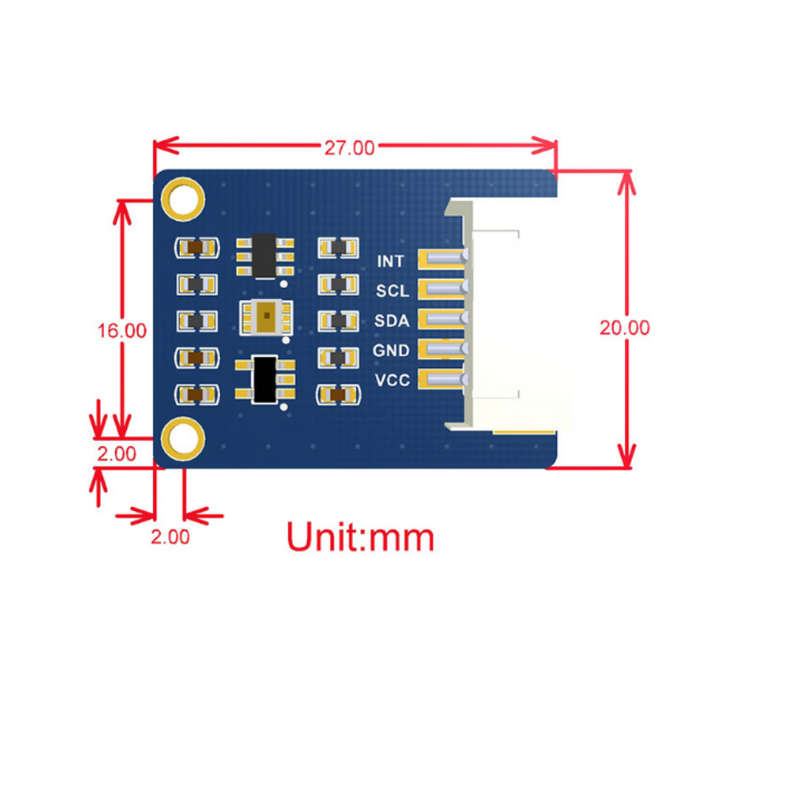

Size: 27x20mm
Fixing Hole Diameter:2mm


For more info please click:

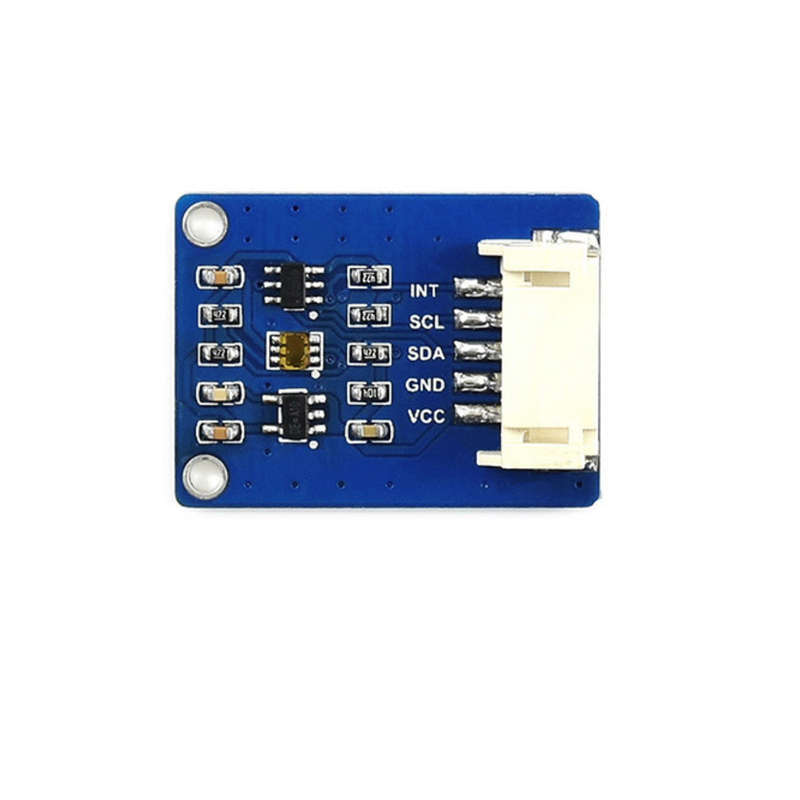

Connection:

VCC: 3.3V/5V
GND:GND
SDA: MCU I2C cable
SCL: MCU I2C Clock
INT: Interrupt (if need)

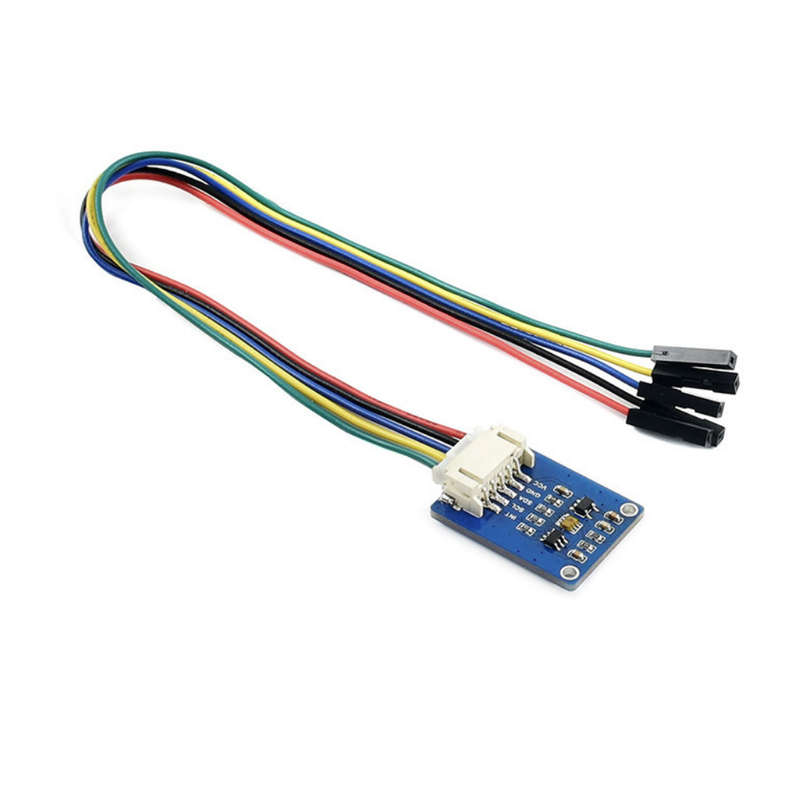

Package Included:

TSL2951X Light Sensor x1
PH2.0 5PIN Cable x1
