TTGO 433Mhz LORA SX1278 ESP32 0.96 OLED Display Module 16M bytes (128M Bit) LILYGO for Arduino - pro

20 available / new

R568.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3514

93.42 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643390369

Description:
The 433MHz antenna must be used in conjunction with the IPEX interface (if the antenna is not connected, it may damage the LoRa chip) Lithium battery charging and discharging circuit, when the battery is full, the blue LED will stop working. When using,
pay attention to the positive and negative of the battery, otherwise it will be damaged! Using the IO port touch screen touch signal input, you need to add the 100nF pull-down capacitor at this pin!
Example:

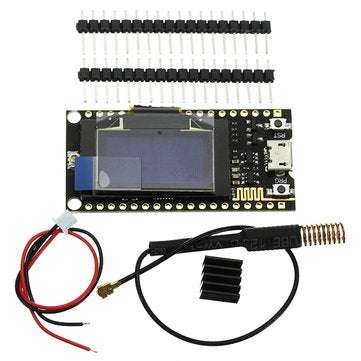

This product is a SX1278 chip based on ESP32 WIFI increased OLED, namely LoRa remote modem, 433MHz frequency,
high sensitivity is about -148dBm, +20dBm output power, high reliability, long transmission distance. The onboard 32MByte Flash, Wi-Fi antenna, 0.96 inch blue OLED display, lithium battery charging circuit, CP2102 interface
and USB serial chip, the perfect support for development environment, can be used for program verification
and product development is very simple and fast. Operating voltage: 3.3V to 7V Operating temperature range: -40 degrees C to +90 degrees C Support for Sniffer, Station, softAP, and Wi-Fi Direct modes Data rates: 150 Mbps@11n HT40, 72 Mbps@11n HT20, 54 Mbps@11g, 11 Mbps@11b Transmit power: 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n Receiver sensitivity up to -98 dBm UDP sustained throughput of 135 Mbps

Package included:

1 x ESP32 OLED
1 x cable
2 x normal pin
1 x 433m Spring Antenna
