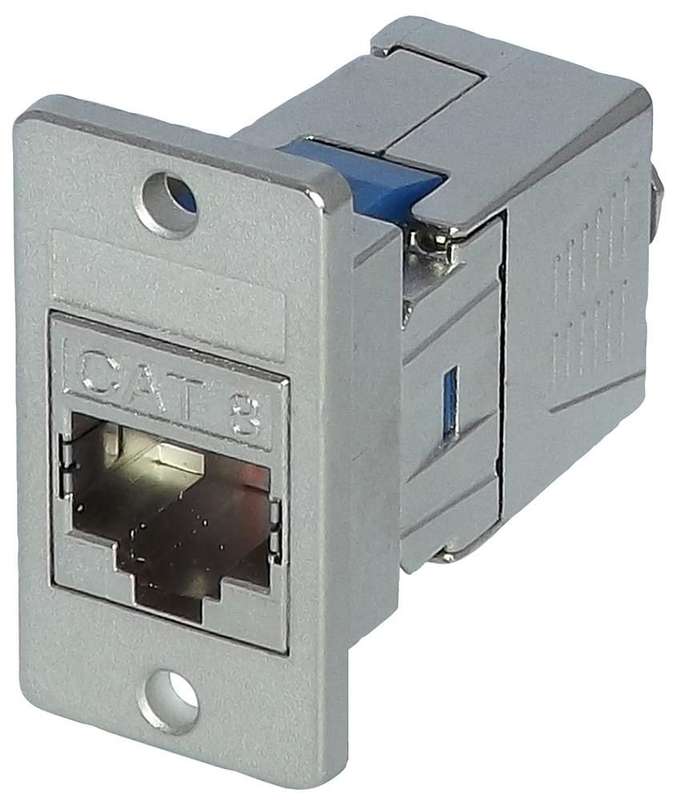

Tuk (SEKJEPM) Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat8

Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat8, Panel MountProduct OverviewThis zinc die-cast shielded Category 8 keystone socket offers a tool-lesssolution for short run installations which need to perform to Category 8standard.High performance CAT 8 shielded keystone socket with panel mountIndustry standard design for compatibility with a wide range of panels, adaptorsand faceplatesSuitable for 0.51 - 0.65mm / 22 - 24 AWG stranded and solid wireTransmission performance in compliance with the ANSI/TIA 568-C.2-1 specificationfor Category 8 cabling systems (for runs of 5-30m)Provides quick and easy tool-less lever butterfly style terminationCompliant with IEC60512-99-001 and suitable for use with IEEE 802.3at (PoE+)applicationsProduct InformationModular Connector Type: RJ45 JackPort Configuration: 1 x 1 (Port)No. of Contacts: 8ContactsNo. of Positions / Loaded Contacts (per Port): 8P8CNo. of Positions: 8WaysLAN Category: Cat8Connector Mounting: Panel MountNo. of Ports: 1PortsConnector Orientation: VerticalContact Termination Type: IDC / IDTShielding: ShieldedMagnetics: Without MagneticsContact Plating: Gold Plated ContactsLEDs: Without LEDContact Material: Phosphor BronzeLight Pipes: Without Light Pipe
