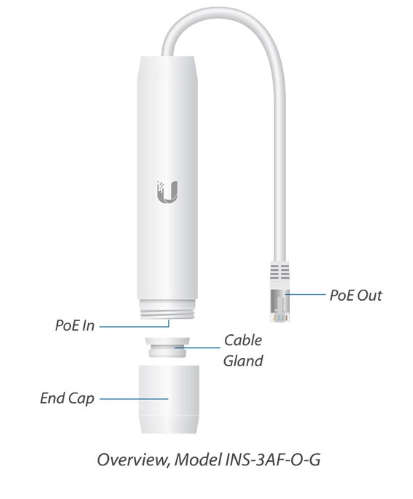

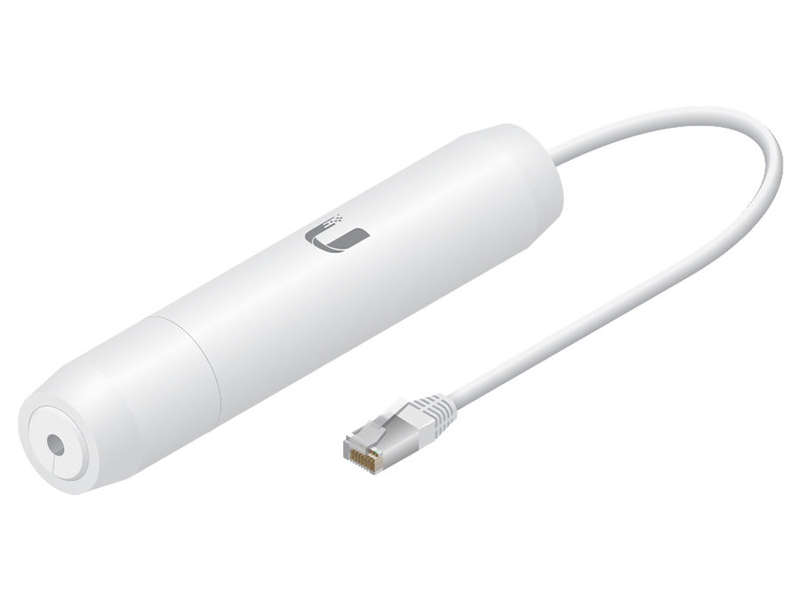

Ubiquiti 802.3af to 24VDC Gigabit Outdoor Adapter | INS-3AF-O-G

Ubiquiti's Instant 802.3af Gigabit PoE Converter transforms any Ubiquiti® UniFi®, UniFi Video, or airMAX® 24V PoE (Power over Ethernet) device into a fully compliant, 802.3af?compatible product. The Instant 802.3af Gigabit PoE Converter works with 10/100/1000 Mbps ports to deliver high throughput speeds over its wired connection.

The Instant 802.3af Gigabit PoE Converter integrates seamlessly with a variety of auto-sensing 802.3af PoE switches for remote power control applications. As you manage and monitor your network, you can conveniently power or power cycle your remote devices using your 802.3af switch. For ease of power management, you can centralize the 802.3af switch and power source, and you can include a UPS (Uninterruptible Power Supply) as a backup. This way your network continues to run even during a temporary power outage.

High voltage carries power more efficiently (using less current) than low voltage. The Instant 802.3af Gigabit PoE Converter enables longer cable runs due to a more efficient power delivery so your products can get the power they require even when they are located far from the 802.3af switch. It also provides an additional ±15kV of Ethernet isolation for built-in protection that lessens the risk of ESD or surge damage to your devices. If using a 48V switch/ PoE injector and need to power up a 24V device, this is recommended as it is a step down adapter.

Specifications

Networking Interface PoE In (802.3af): (1) Gigabit RJ45 Port

Networking Interface PoE Out (24V Passive): (1) Gigabit Ethernet Cable

Power Input : 48V, 802.3af

Output Power: 18V, 0.7A

Max Power Output: 24V, 0.5A

Ethernet ESD/Surge Protection: ±15kV

Dimensions: Ø 30.2 x 166 mm

Dimensions with RJ45 Cable: Ø 30.2 x 366.6 mm

Weight: 90g

Operating Temperature: -30 to 70° C
