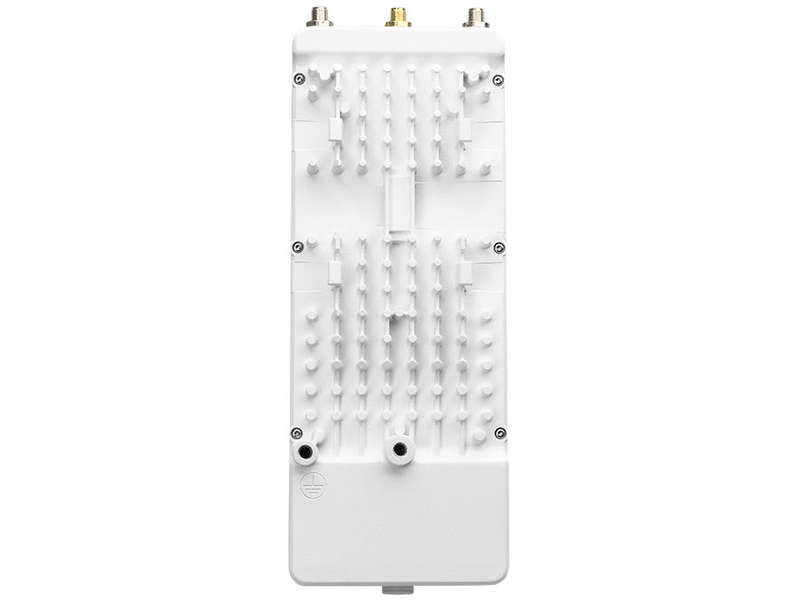

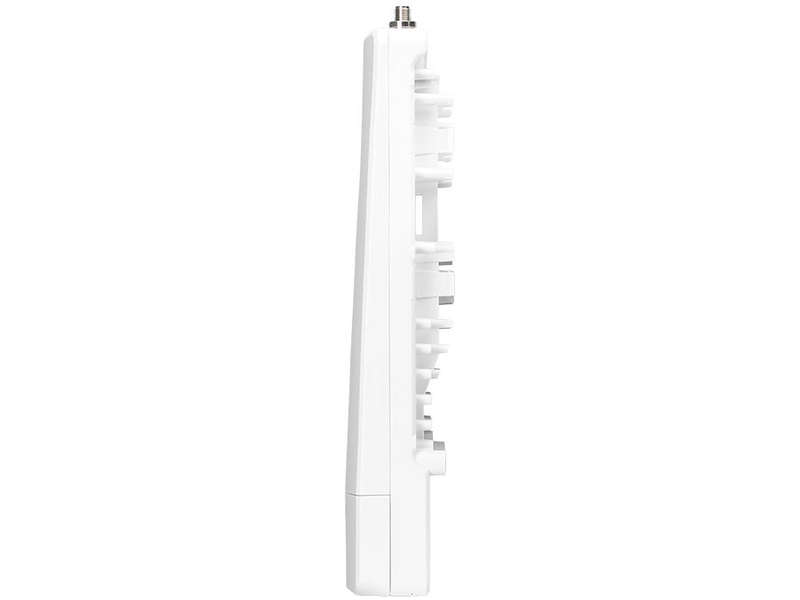

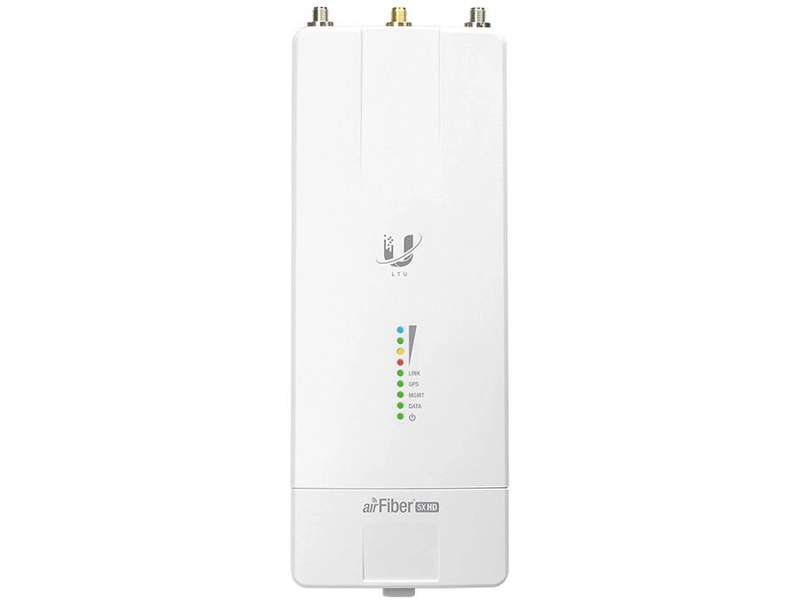

Ubiquiti's AF-5XHD is designed for use in the 5GHz frequency band. It offers channel bandwidth of up to 100MHz, GPS synchronization and uses airOS LTU, manageable via UNMS. The AF-5XHD is designed to work with slant-polarized antennas for improved noise immunity and signal-to-noise ratio but is also compatible with other dish antennas in the Ubiquiti range. *Note: The AF-5XHD is not backwards compatible with the AF5X
Specifications
Antenna Gain: Antenna Dependant (2x RP SMA Female)
Beam-width: Antenna Dependant
Data Rate: 1.34 Gbps

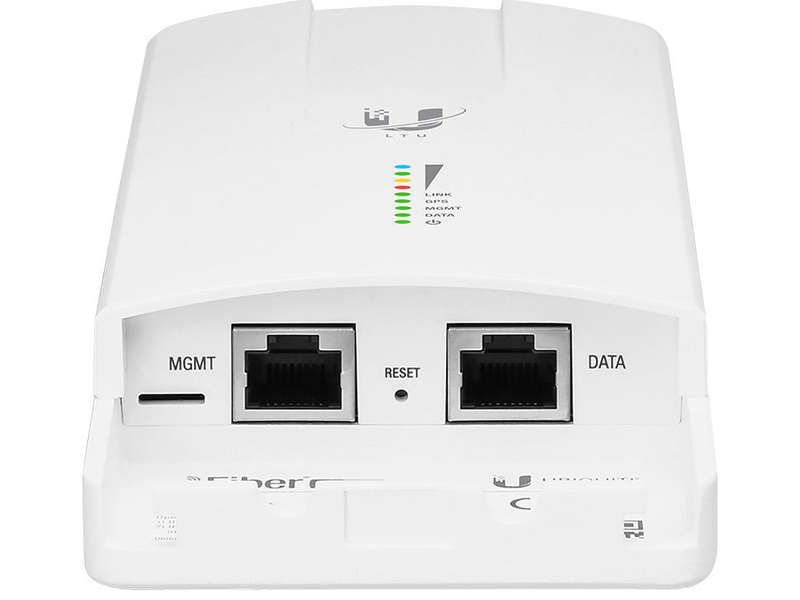

Ethernet Ports: Data - 1x 10/100/1000 ; Management 10/100/1000
Hardware Button: Reset
Interfaces: 1
Max. Power Consumption: 6W-12W
Mounting: Antenna or Pole-Mount
Operating System: airOS F (airFiber)
Operating Temperature: -40°C to 55°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V, 1A Gigabit PoE Injector (Included)
Serial Interface: Bluetooth V4.0
SIM Slots: None
Supported Voltage Range: 18V-54V
USB Ports: None
Dimensions: 224 x 82 x 48mm
Weight: 0.35kg
