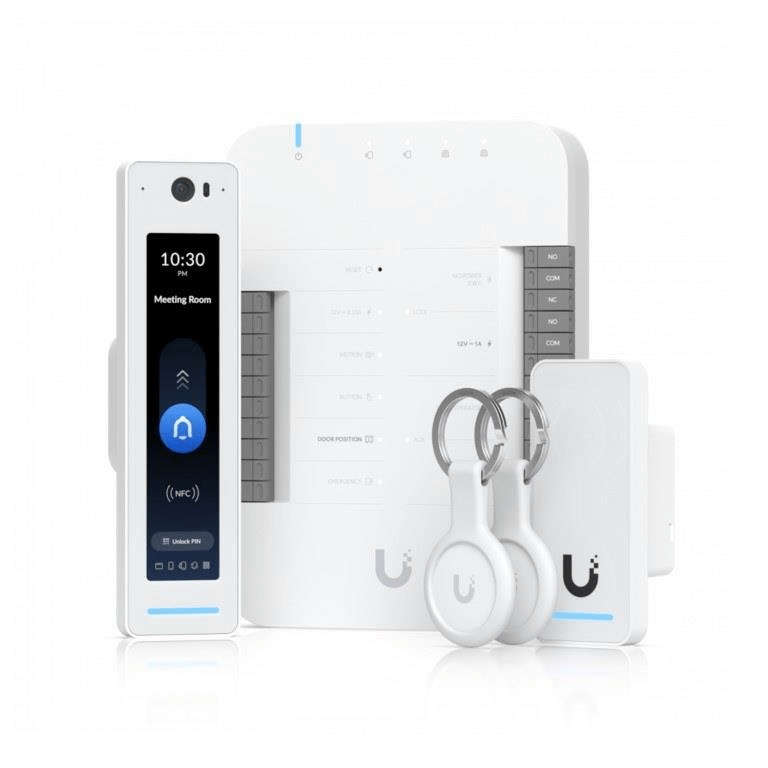

Ubiquiti UniFi Access G2 Pro Door Access Starter Kit UA-G2-SK-PRO
Hit the ground running with Access, featuring a professional experience for a door with two readers.
Features
- 1x Door Hub
- 1x G2 Reader Pro
- 1x G2 Reader for door exit, or entry for an additional door (second Hub required)
- 2x Pocket Keyfobs
Technical Specification
UA-Hub-Door - Mechanical
Dimensions: 174.9 x 126 x 32.9 mm
Weight: 363 g
Enclosure material: Polycarbonate
Mounting material: Polycarbonate
Hardware
Networking interface: 5x 10/100/1000 Base-T
Power method
- PoE++
- UL 294 Power-limited Class 2 PSU
- UL 60950/62368 LPS/PS2 PSU
Max. power consumption
- Without PoE output: 30W
- With PoE output: 50W
PoE input: 50V DC, 1A
PoE output: PoE passthrough, (4) PoE, 50V DC, total 20W
Button: 1x Factory-reset
LEDs System: white/blue
LEDs Output relays: white
Digital input: Request to exit/request to enter/remote release/door position sensor
Dry output relay
- Lock: 30V DC, 1A
- Aux: 30V DC, 1A
Powered output relay
- Lock: 12V DC, 1A
- Aux: 12V DC, 0.33A
- 12V DC, 0.33A
Operating environment: Indoor use only
UA-G2-Pro - Mechanical
Dimensions: 160 x 40.4 x 40.55 mm
Weight: 136 g
Enclosure material: Polycarbonate, glass
Mount material: Aluminum alloy
Mounting: Wall, gang box
Weatherproofing: IP55
Hardware
Networking interface: 1x GbE RJ45 port
Connectivity: BLE 4.2 , NFC
Power method
- PoE
- UL 294 Power-limited Class 2 PSU
- UL 60950-1/62368-1 LPS/PS2 PSU
Supported voltage range: 48V DC
Max. power consumption: 6W
ESD/EMP protection: Air: ±15kV, contact: ±8kV
Sensor: Proximity sensor
Camera: 4000 x 3000, 12 MP, 30 FPS
View angle: H: 96.67°, V: 123.15°, D: 153.11°
Microphone: Yes
Speaker: 1x 4 ohm, 1.5W
LEDs: R/G/B/W, Flash
Button: 1x Factory-reset
NFC frequency: 13.56 MHz
NFC read range: < 30 mm
NFC standards: ISO 14443A, 14443B, 15693
NFC technology
- NFC Tag 1,2,3,4,5
- MIFARE Classic
- MIFAREPlus
- MIFARE Ultralight
- MIFARE DESFire
Operating environment: Outdoor use
UA-G2 - Mechanical
Dimensions: 93 x 40 x 36.5 mm
Weight: 82 g
Enclosure material: Polycarbonate, glass
Mounting: In wall, gang box
Weatherproofing: IP55
Hardware
Networking interface: 1x 10/100 MbE RJ45 port
Connectivity: BLE 4.1
Power method
- PoE
- UL 294 Power-limited Class 2 PSU
- UL 60950-1/62368-1 LPS/PS2 PSU
Supported voltage range: 48V DC
Max. power consumption: 5W
ESD/EMP protection: Air: ±15kV, contact: ±8kV
Sensors: Proximity sensor
Speaker: 1x 8 ohm, 0.7W
LEDs: R/G/B/W
Button: 1x Factory-reset
NFC frequency: 13.56 MHz
NFC read range: < 30 mm
NFC standards: ISO 14443A, 14443B, 15693
NFC technology
- NFC Tag 1,2,3,4,5
- MIFARE Classic
- MIFAREPlus
- MIFARE Ultralight
- MIFARE DESFire
Operating environment: Outdoor use
UA-Pocket - Mechanical
Dimensions: 84 x 39 x 7.4 mm
Weight: 16 g
Enclosure material: Polycarbonate, stainless steel
Weatherproofing: IP54
Hardware
NFC frequency: 13.56 MHz
NFC technology
- ISO/IEC 14443 Type A
- MIFARE DESFire EV3 4K
- UniFi Access Proprietary Security Protocol
