UNI-T UT18C 0~690V AC DC Voltage Testers LCD Display Auto Range IP65 Waterproof Meter No Power Tes

Description:

UT18 Waterproof, Voltage, and Continuity Test Series: If your work environment is dim, wet, and rainy, and requires a high level of test safety, the UT18 Waterproof, Voltage, and Continuity Test Series is the ideal choice. This series not only passed the fourth category of CAT IV certification for voltage measurement, ensuring the damage of sudden transient overvoltage to the staff. IP65 waterproof rating, built-in lighting, RCD testing, phase rotation test, etc., to meet the needs of troubleshooting in a variety of harsh environments

UT18C can provide AC and DC voltage (including the three-phase alternating current) measurement, phase of three-phase AC power indicator, on-off test, RCD Test, single pen measurement (can determine the zero line or wire), self checking, no battery detection and other functions. Suitable for: smelting, electronics, manufacturing, security, electric power, petroleum, chemical industry. More detailed product information, please refer to the English manual.

Features:

Auto Range
Date Hold
LCD/LED Indication
RCD Test
Phase Rotation Test
Single Lead (L2) Voltage Detection
Self-inspection
No Battery Detection
Polarity Detection
High Voltage Indication
Low Battery Indication
Auto standby
SilentMode
Work Light

Specifications:

AC/DC voltage range: 12/24/50/120/230/400/690V
Phase rotation test operating voltage: 100V~690V, frequency: 50Hz~ 60Hz
Single lead (L2) voltage detection operating voltage: 100V~690V, frequency: 50Hz~ 400Hz
Continuity Test: 0~100K
RCD test operating voltage: 230V(50Hz~400Hz)
Power: 1.5V AAA Batteries * 2(not included)
LCD Size: 28 * 14mm
Product Color: Red and Grey
Product Net Weight: 250g
Product Size: 272mm * 85mm * 31mm

Package Information:

Package Size: 35.4 * 17.4 * 4.8cm / 13.9 * 6.9 * 1.9in
Package Weight: 393g / 13.86oz

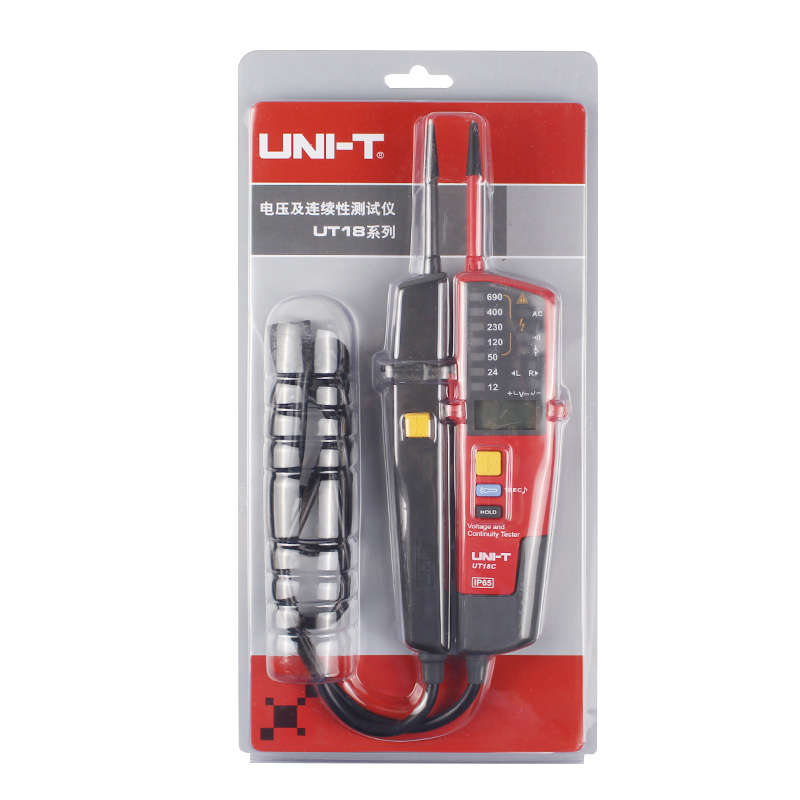

Blister Package

Package included:

1 * UNI-T UT18C Voltage and Continuity Tester
1 * English Manual

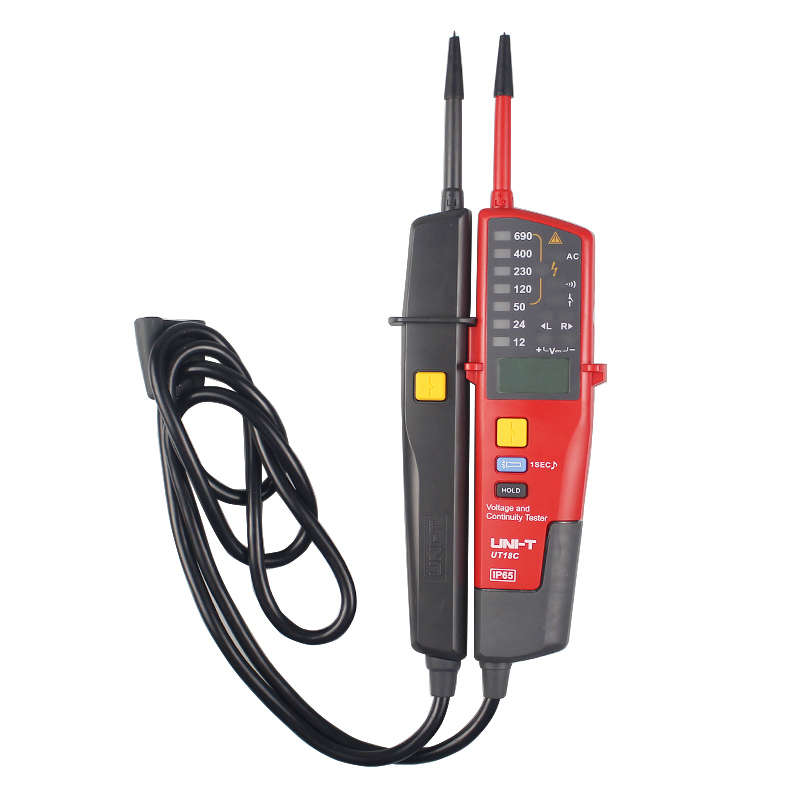

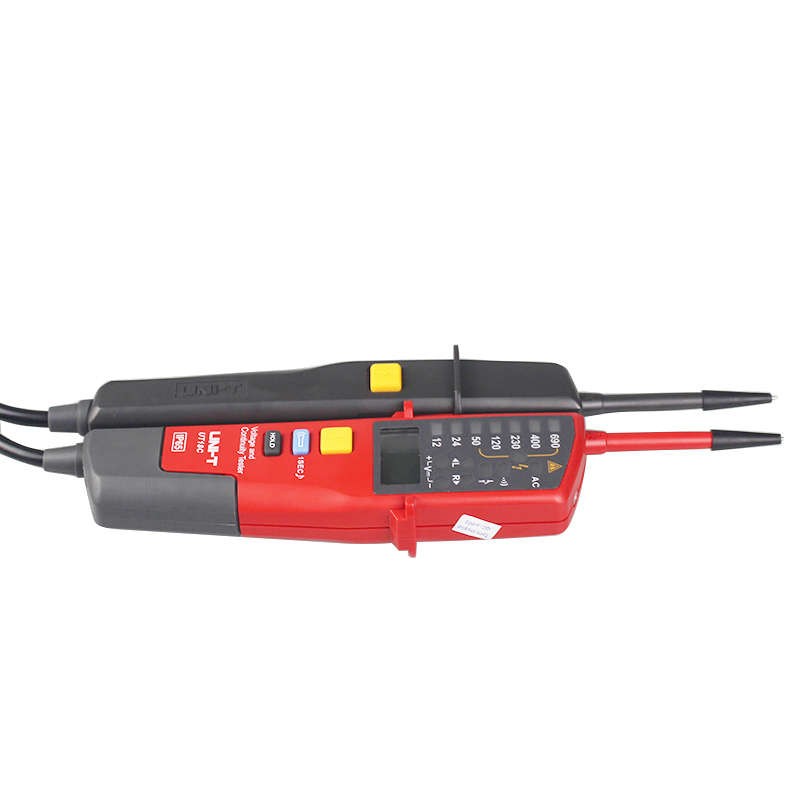

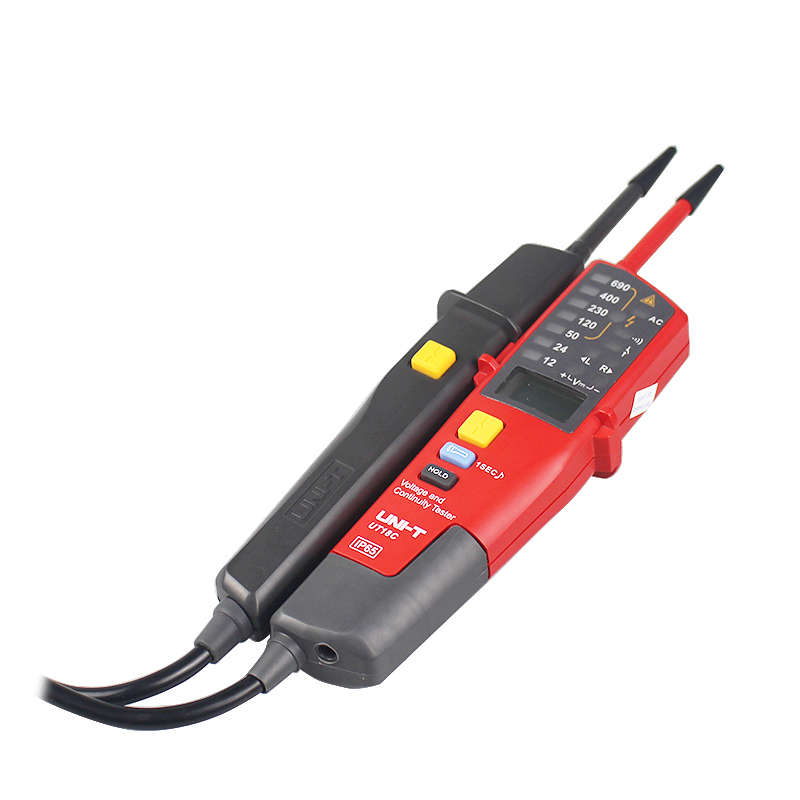

Details picture:
