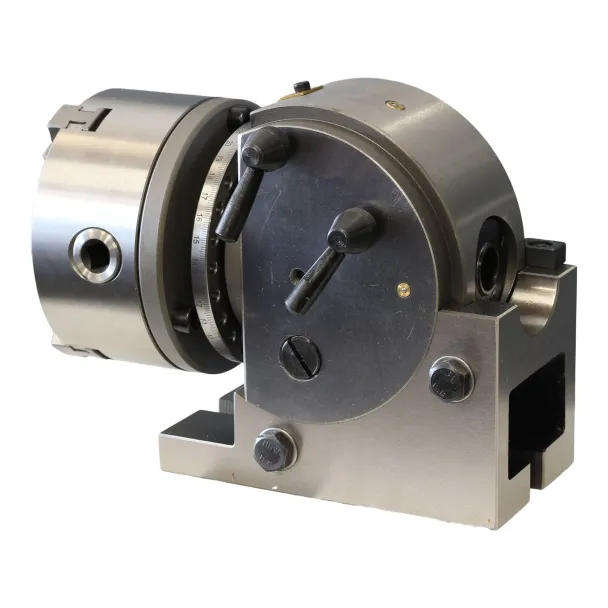

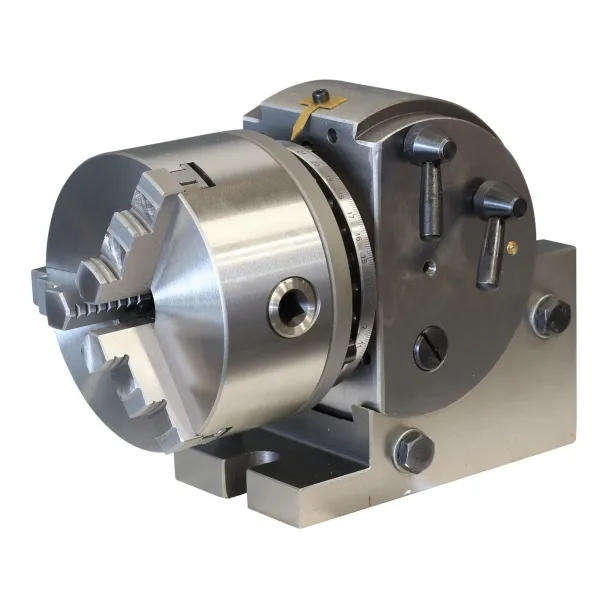

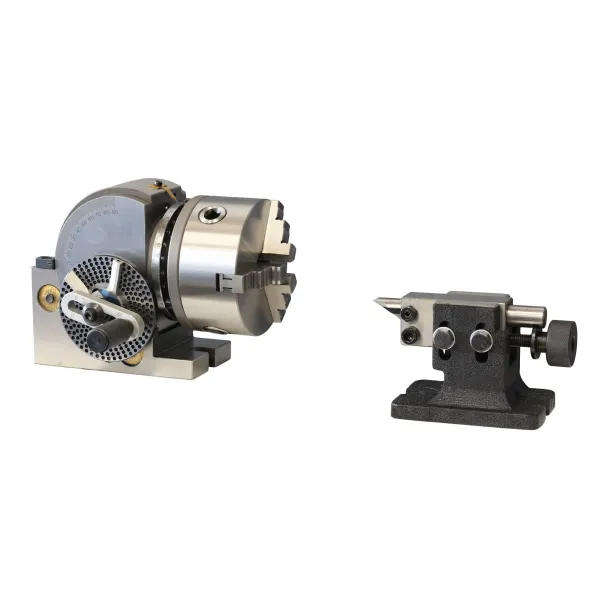

Universal Dividing Head Set with 130 MM 3-Jaw Chuck
This universal dividing head set is a versatile and essential tool for precision machining tasks, allowing for highly accurate angle and indexing operations. Equipped with a 130 mm 3-jaw chuck, this set supports direct, indirect, and differential indexing methods. It features a hardened and ground spindle supported by taper roller bearings, ensuring smooth and stable rotation. The worm and gear mechanism has a 40:1 ratio and is also hardened and ground for durability. Its swivel head can lock from 10° below horizontal to 90° vertical, and the precision fit base ensures seamless rotation. Designed for high-accuracy milling, cutting, and dividing applications, it includes 24-hole indexing plates capable of fast conversions for standard divisions.
Features
- Supports direct, indirect, and differential indexing
- 40:1 worm-to-gear ratio
- Hardened and ground spindle with taper roller bearings
- Lockable swivel head from -10° to 90°
- Precision ground worm and gear system

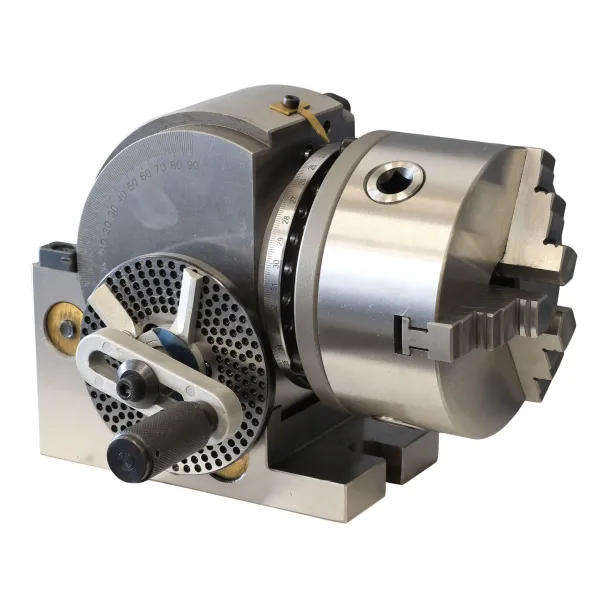

- 24-hole dividing plate for fast direct indexing
- Indexing from 2 to 50 and additional values up to 380
- Includes a 130 mm 3-jaw chuck for center cutting or milling
Specifications
- Included Chuck: 130 mm 3-jaw
- Worm Gear Ratio: 40:1
- Swivel Range: -10° to 90°
- Spindle Taper: 0
- Package Dimensions (L x W x H): 42.20 x 24.60 x 24.00 cm
- Package Weight: 21.8 kg
