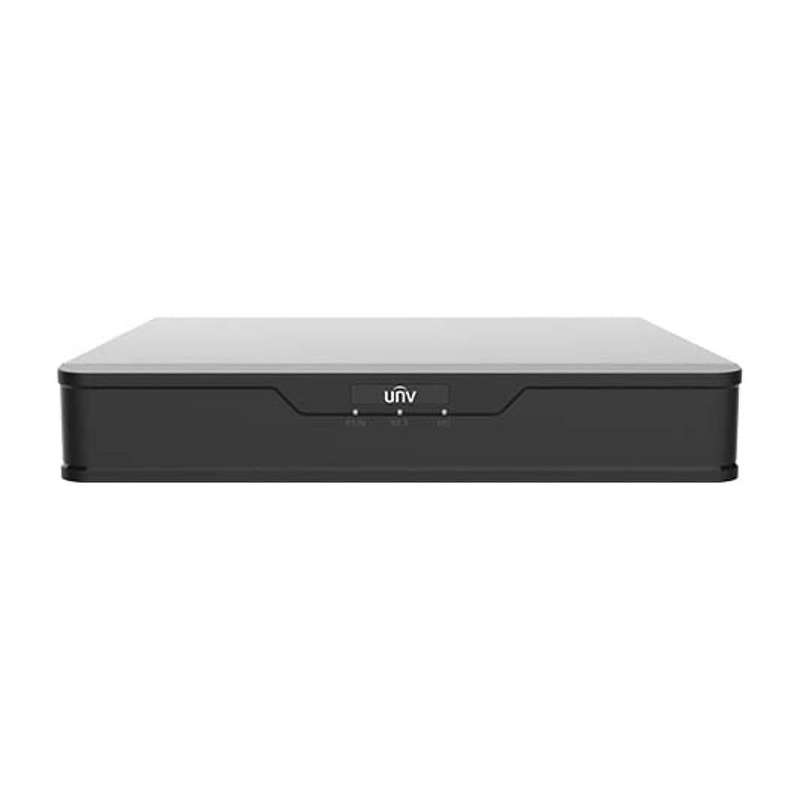

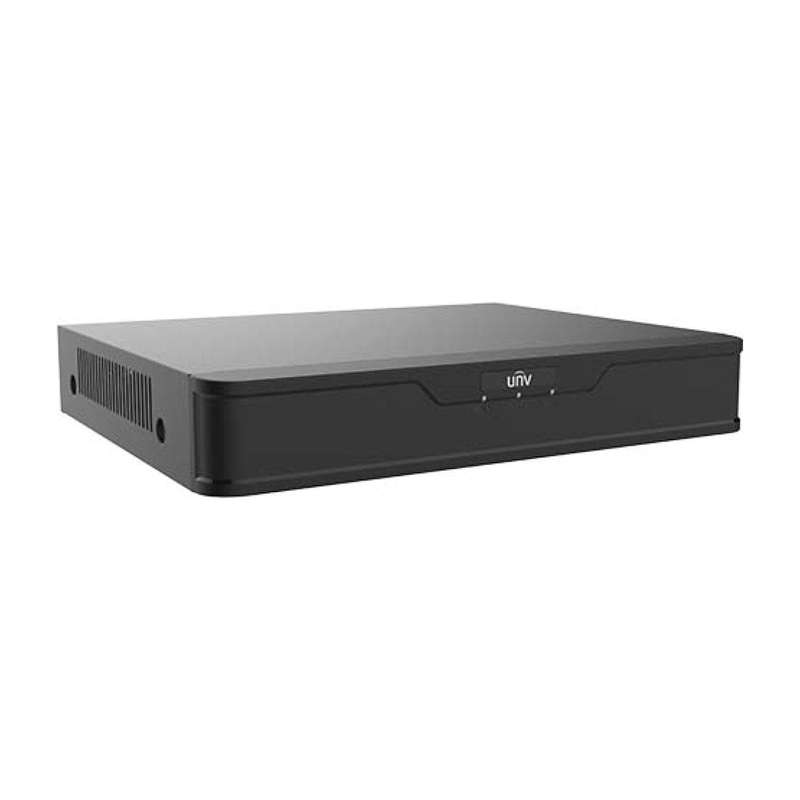

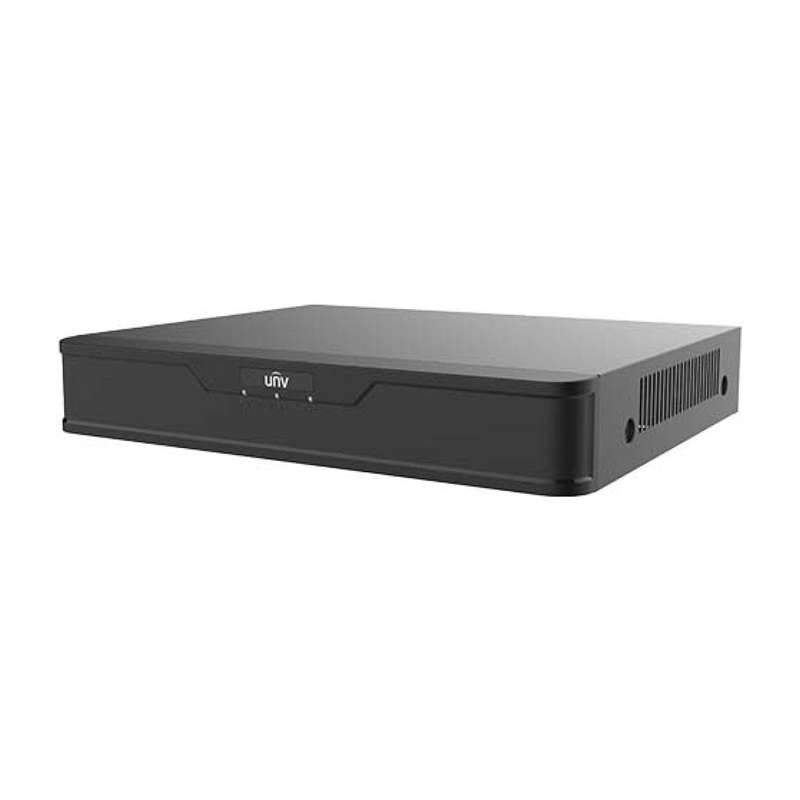

Uniview XVR301-08G3 Series 8-channel Hybrid NVR
The Uniview XVR301-08G3 Series 8-Channel Hybrid NVR is a versatile and cost-effective network video recorder designed to manage both analog and IP camera systems. It supports seamless integration of various camera types, making it an excellent choice for hybrid surveillance setups, where both traditional analog and modern IP cameras are in use.
8-Channel Hybrid Support
Supports up to 8 channels of video input, with a flexible hybrid architecture that accommodates both analog and IP cameras. It can handle up to 8 analog cameras (via BNC) and 8 IP cameras (via network), offering versatility for mixed systems.
High-Resolution Recording
Capable of recording high-quality video at up to 4K resolution for IP cameras and 1080P for analog cameras, ensuring clear and detailed footage.
Advanced Video Compression
Utilises H.265/H.264 compression, reducing storage and bandwidth consumption while maintaining excellent video quality.
Hybrid Storage
Features 4 SATA interfaces for large-scale storage capacity, supporting the connection of multiple hard drives for extended video retention.
VGA and HDMI Outputs
Provides both VGA and HDMI outputs for flexible video display options, supporting up to 4K resolution via HDMI for crisp video monitoring.
Remote Monitoring
Allows for remote viewing and playback via mobile apps or web browsers, providing users with access to live footage and recorded videos from anywhere.
Integrated Video Analytics
Includes smart features such as motion detection and event-based alerts to enhance security monitoring and automate responses to potential threats.
ONVIF Compatibility
Ensures compatibility with a wide range of third-party IP cameras, offering flexibility and ease of integration with existing security systems.
Features
- Support H.265/H.264 video formats
- Support audio over coaxial cable(only for TVI cameras)
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 4/8/16 channel BNC input
- Support 1 ch HDMI output, 1 ch VGA output at up to 1920*1080
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocols
Specifications
Two-way Audio: 1â'ch, RCA(Using the audio input and output)
Recording Resolution: XVR301â'08G3:5MP Lite/4MP Lite/1080P Lite/720P/D1
Audio Sample Rate: 8KHz,16 bit per channel
Audio Bit Rate: 64Kbps per channel
FTP/Schedule/Event Snapshot: XVR301â'08G3: FTP/Event snapshot:8â'ch snapshot, up to 704*576 resolution, Schedule snapshot:not supported
Incoming Bandwidth: XVR301â'08G3:32Mbps (Up to 40Mbps after all analog channel conversion)
Browser(Plugin): Firefox (version 52.0 and above); Chrome(version 45 and above); Edge(version 79 and above)
Analog Smart by XVR: Ultra Motion Detection(UMD)
Smart Functions by XVR: XVR301â'08G3: 4â'channel (UMD)
Hard Disk: 1 SATA interface
Capacity: Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature)
Network Interface: 1 RJ45 10M/100M selfâ'adaptive Ethernet Interface
USB: Rear panel: 2 x USB2.0
Power Supply: DC 12V/2A
Video/Audio Input
- IP Video Input: XVR301â'08G3: 4â'channel
- Analog Video Input: XVR301â'08G3: 8â'channel, BNC
- Max IP Video Input: XVR301â'08G3: 8â'channel
- RCA Audio Input: 1â'channel
Video/Audio Output
- HDMI Output: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- VGA Output: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- RCA Audio Output: 1â'ch
- Live View Display: XVR301â'08G3:HDMI/VGA: 1/4/6/8/9/16
Support AHD input:
- 5MP-12.5fps
- 4MP-15fps
- 1080P-30fps
- 720P-30fps
Support TVI input:
- 5MP-12.5fps
- 4MP-15fps
- 1080P-30fps
- 720P-30fps
Support CVI input:
- 4MP-15fps
- 1080P-30fps
- 720P-30fps
- Support CVBS input
Recording Frame Rate
- Main stream: 5MP Lite-6fps, Sub stream: D1-6fps
- Main stream: 4MP Lite-8fps, Sub stream: D1-8fps
- Main stream: 1080P Lite-12fps, Sub stream: D1-12fps
- Main stream: 720P-12fps, Sub stream: D1-12fps
Decoding Capability
- Analog: 4 x 5MP Lite-6,4x 4MP Lite-8, 4x 1080P Lite -12fps
- IP: 1 x 4MP-30, 2 x 1080P-30
