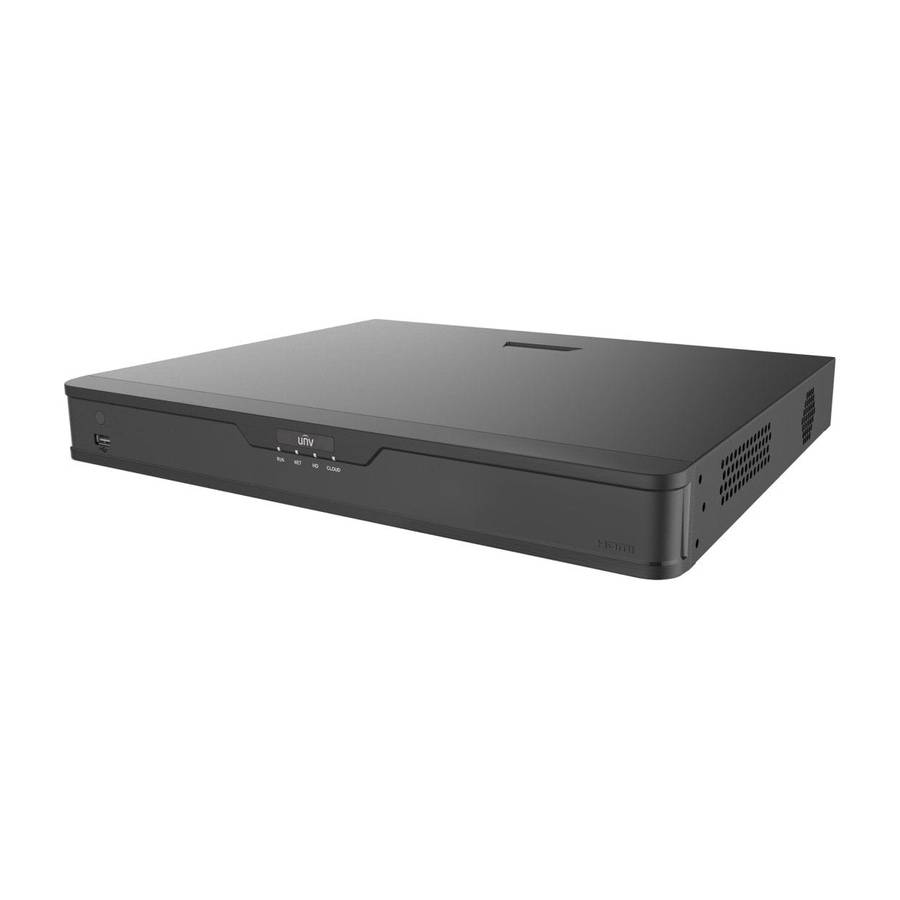

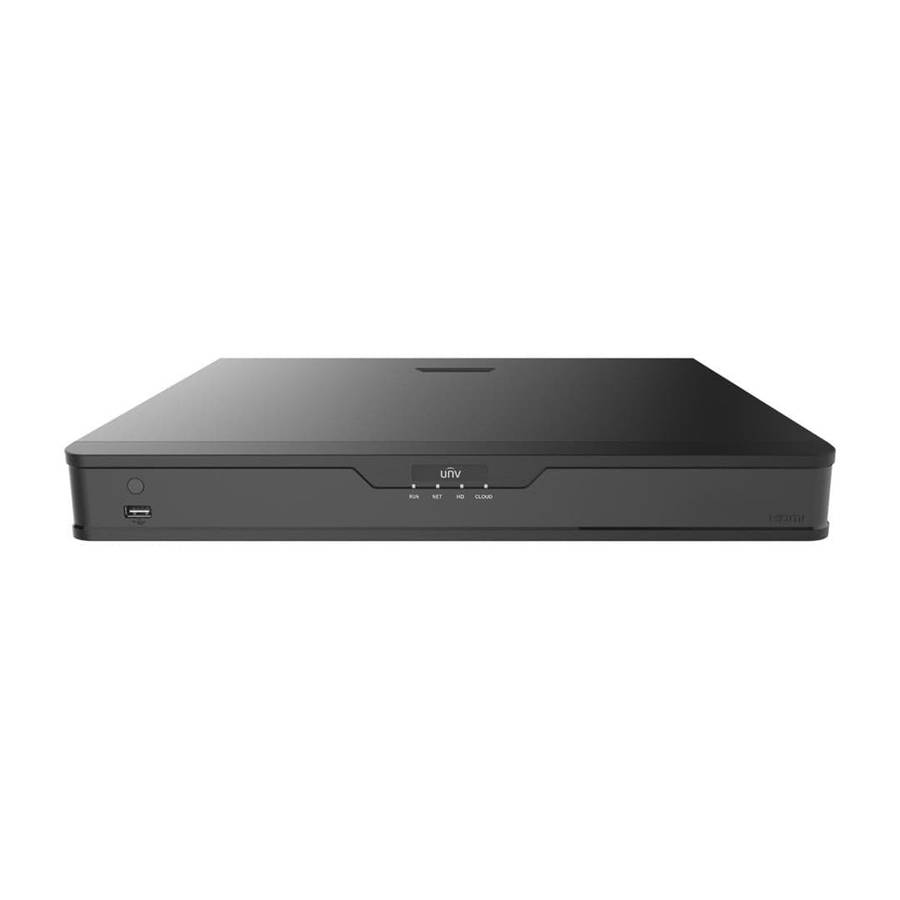

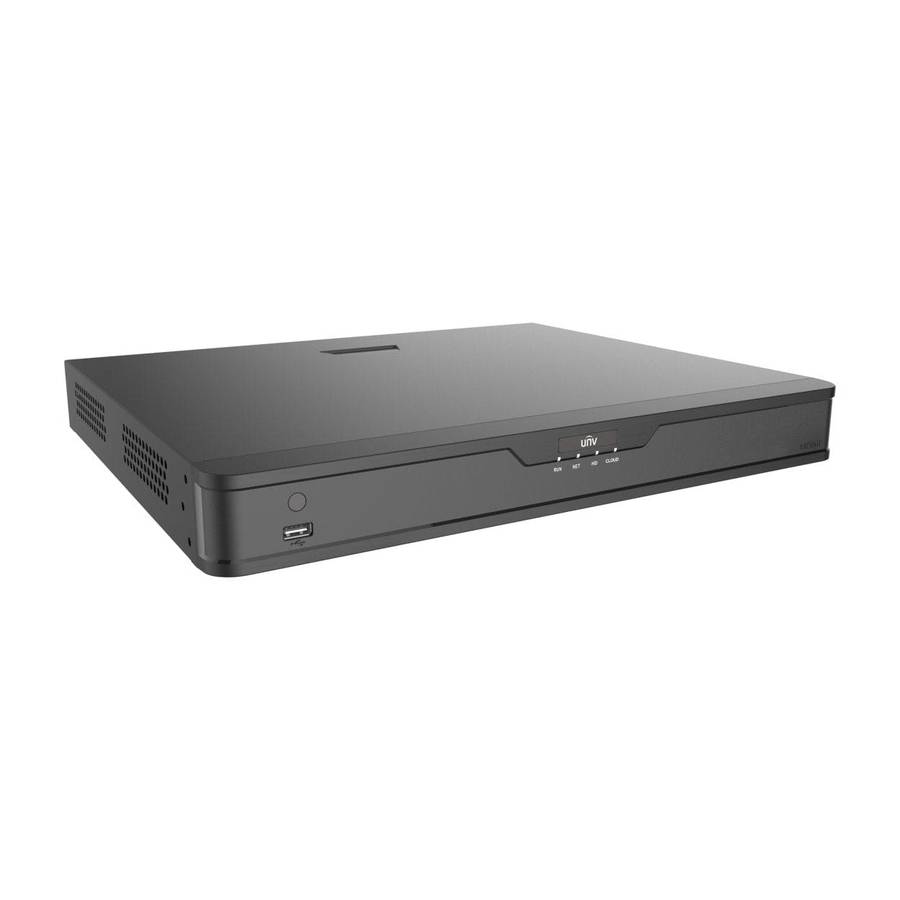

Uniview XVR302-16Q3 Series 16-channel Hybrid NVR
The Uniview XVR302-16Q3 Series 16-channel Hybrid NVR is a high-performance network video recorder (NVR) designed for surveillance systems that require both IP camera and analog camera support. This hybrid NVR offers versatile integration, allowing users to manage and record video from a wide range of camera types, making it ideal for both existing and new installations.
Purpose
The Uniview XVR302-16Q3 is designed to provide a flexible and scalable video surveillance solution for businesses, offices, or residential environments. It supports both IP cameras and analog cameras via coaxial cables, allowing for seamless integration into hybrid surveillance systems.
Capacity
The unit can accommodate up to 16 channels of video input, allowing for the connection of up to 16 cameras, both IP and analog, for comprehensive coverage and monitoring.
Hybrid Recording
Supports both IP cameras (up to 8MP resolution) and analog cameras (with up to 5MP resolution) in a single system, providing flexibility for different camera types and technologies.
High-Resolution Video Recording
Supports up to 8MP resolution for IP cameras and up to 5MP resolution for analog cameras, ensuring clear, detailed footage.
Remote Access
Allows users to access live and recorded video remotely via a mobile app or web interface, providing flexibility for monitoring from anywhere.
Advanced Video Compression
Utilises H.265+ video compression technology, which significantly reduces storage requirements while maintaining high video quality.
Large Storage Capacity
Equipped with multiple SATA hard drive bays, offering large storage space for extended recording durations. Typically, it supports up to 6TB per HDD.
Features
- Support H.265/H.264 video formats
- Support audio over coaxial cable (only for TVI cameras)
- Control the dual-light of UNV analog cameras under TVI
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 16-channel BNC input
- Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K (3840 x 2160)
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocol
Specifications
IP Video Input: 8-channel
Analog Video Input: 16-channel, BNC
Max IP Video Input: 24-channel
Two-way Audio: 1-channel, RCA(Using the audio input and output)
FTP/Schedule/Event Snapshot: Schedule/FTP/Event snapshot:16-ch snapshot, up to 704*576 resolution
Incoming Bandwidth: 80Mbps (Up to 112Mbps after all analog channel conversion)
Outgoing Bandwidth: 160Mbps
Remote Users: 128
Protocols: TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, NTP
Browser: (Plugin)Windows: IE (IE10/ 11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above)
Network Interface: 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
USB: Rear panel: 1 x USB3.0, Front panel: 1 x USB2.0
RS485: 1
Alarm In: 4-channel
Alarm Out: 1-channel
Power Supply: DC 12V/3A
Audio Sample Rate: 8 KHz, 16 bit per channel
Audio Bit Rate: 64 Kbps per channel
RCA Audio Input: 1-channel
HDMI Output: HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output: VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
BNC Video Output: 1-channel
RCA Audio Output: 1-channel
Live View Display: HDMI/VGA: 1/4/6/8/9/25
Recording Resolution: 8MP Lite/5MP Lite/4MP Lite/1080P/720P/D1
Support AHD input:
- 8MP-15fps
- 5MP-20fps
- 4MP-30fps
- 1080P-30fps
- 720P-30fps
Support TVI input:
- 8MP-15fps
- 3K-20fps
- 5MP-20fps
- 4MP-30fps
- 1080P-30fps
- 720P-30fps
Support CVI input:
- 8MP-15fps
- 5MP-25fps
- 4MP-30fps
- 1080P-30fps
- 720P-30fps
- Support CVBS input
Recording Frame Rate
- Main stream: 8MP Lite-8fps Sub stream: D1-8fps
- Main stream: 3K Lite-12fps Sub stream: D1-12fps
- Main stream: 5MP Lite-12fps Sub stream: D1-12fps
- Main stream: 4MP Lite-15fps Sub stream: D1-15fps
- Main stream: 1080P-15fps Sub stream: D1-12fps
- Main stream: 720P-30fps Sub stream: D1-12fps
Decoding Capability
- Analog: 16 x 8MP Lite-8, 16 x 3K Lite-12, 16 x 5MP Lite-12, 16 x 4MP Lite-15, 16 x 1080P-15, 16 x 720-30
- IP: 2 x 8MP-30, 4 x 4MP-30, 8 x 1080P-30, 16 x 720P-30, 24 x D1-30
