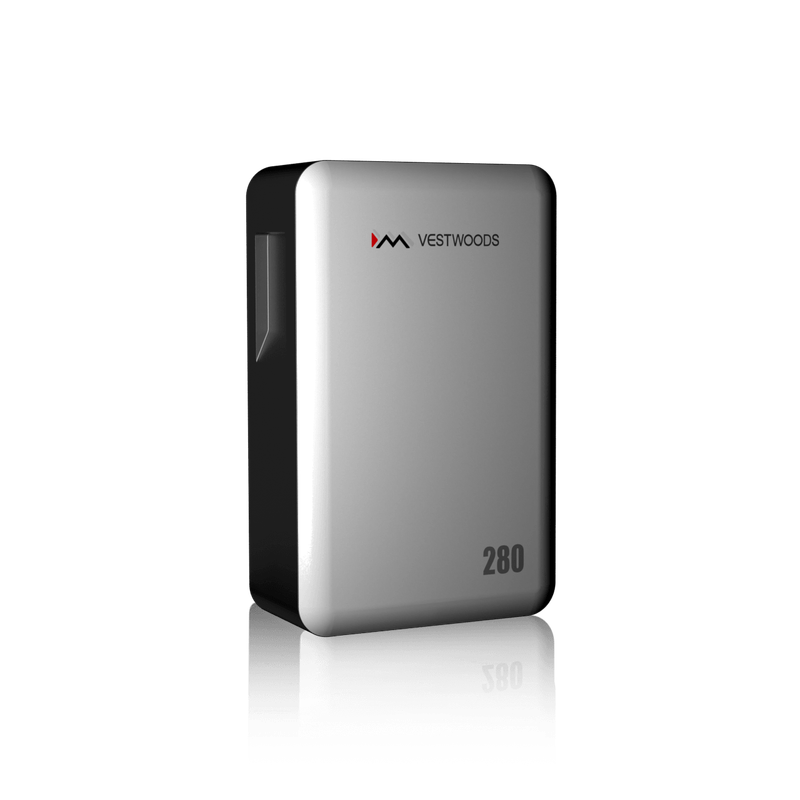

Vestwoods 14.3Kwh Ip65 Lithium Battery 280Ah

Vestwoods 14.3Kwh Ip65 Lithium Battery 23

Highly adaptable battery system developed by Vestwoods

Vestwoods 14.3Kwh Ip65 Lithium Battery is a quality intelligent lithium battery that is internationally used for solar and backup systems. In Africa, the Vestwoods lithium range is installed in mobile telecom solutions due to the reliability and life span of the products. Vestwoods originally developed the world's first intelligent BMS (Battery Management System) which was used in many other brands. The Vestwoods lithium battery range is designed with a 20 year life span and includes cooling to ensure efficiency and high performance at a very reasonable cost.
KEY FEATURES:

• Intelligent BMS, multiple real-time protections, timely failure warnings, and user friendly
• Stronger overcurrent ability and larger capacity to meet daily needs
• Provides remote monitoring APP and intelligent management of the cloud platform
• Excellent performance standards, 6000 cycles lifespan
• Offers wall-mounted and floor installation, easy installation to save time and cost
• Fashionable appearance design with a variety of color options
• Vestwoods 14.3Kwh Ip65 Lithium Battery

SPECIFICATIONS:

• Cell Cathode Chemistry LiFePO4
• Nominal Battery Energy (kWh) 14.336
• Nominal Capacity (Ah) 280
• Nominal Voltage (Vdc) 51.2
• Working Voltage (Vdc) 44.8-57.6
• Rated Charge Voltage/@25 (Vdc) 57.6
• Charge Current/Max. Continuous (A) 200
• Discharge Cut-off Voltage/@25 (Vdc) 44.8
• Discharge Current/Max. Continuous (A) 200
• Depth of Discharge (%) 80
• Ambient Temperature/Charge () 0~50
• Ambient Temperature/Discharge () -20~55
• IP Rating IP65
• Expansion Up to 8 units in parallel
• Color Red/Silver/Blue/White
• Communication CAN/RS-485
• Cooling Mode Natural
• Cycle Life 6000, 80%DOD@25
• Design Life 15+ Years (25/°F)
• Installation Method. Foor/Wall mounted
• Humidity 5% ~ 95%(RH)
• Altitude(m) <2000
• Alarms. Overcharge/Overdischarge/Overtemperature/ Overcurrent/Short Circuit etc.
• Compatible Inverters. Deye/Senergy/Invt/Megarevo etc.
• Vestwoods 14.3Kwh Ip65 Lithium Battery

DIMENTIONS (mm): Dimensions 505 x 801.5 x 251
Weight 121.0kg
WARRANTY: 5 Years Manufacturing Warranty

10 Years Warranty Upgrade Option

Terms & Conditions apply.
