Victron 25A Buck-Boost DC/DC converter Bargain Bin

DC-DC Converter for charging a 12/24V service battery in vehicles with an intelligent dynamo.  The Buck-Boost DC-DC Converter is a DC-DC converter for charging a 12/24V service battery in vehicles with an intelligent dynamo. Since, when the engine is running, these dynamos (powered by the onboard electronics of Euro 5 and 6 engines) do not always emit the correct charging current, a DC-DC converter is essential for charging the service battery properly.
DC-DC Converter for charging a 12V or 24V service battery in vehicles with a smart alternator (regenerative braking, Euro 5 and Euro 6 engines) The Buck-Boost DC-DC Converter is a DC-DC Converter for charging a 12V or 24V service battery in vehicles with a smart alternator. The converter will charge the auxiliary battery with a pre-set charge voltage, eliminating high voltages (e.g. Mercedes: 15,4V) and low voltages.
'Engine running' detection system Deep discharge of the vehicle's starting battery is avoided by a built-in 'engine running' detection system.
Instead of this detection system, the converter can also be activated by means of a programmable input (D+, CAN bus, or (+)15 connection).
Fully programmable The converter can be fully programmed by means of a simple and user-friendly PC application.
(USB type A male to USB type B male cable needed)
One product for 12V, 24V, and 12/24V systems The converter can be programmed to charge a 12V or a 24V auxiliary battery from either a 12V or a 24V alternator and starter battery.
Charge current and input current limiter The output current is determined by the following factors:
- The maximum charge current setting.
- The maximum input current setting.
- The maximum operating temperature limit of the converter.

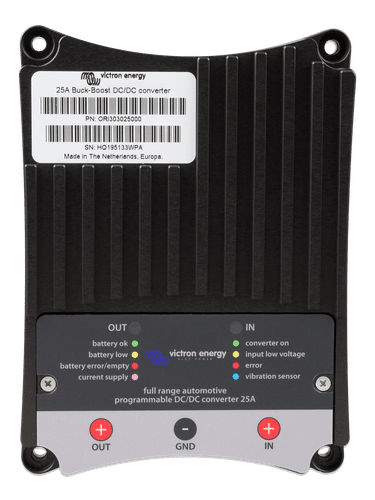

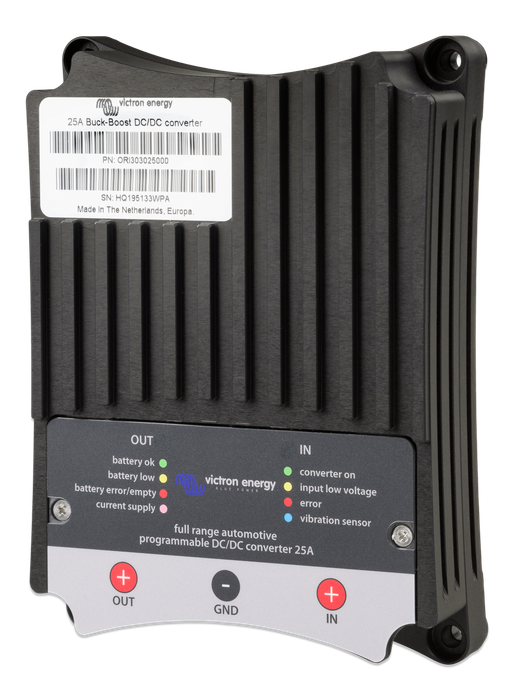

Input status indication (LED) Green: converter on.
Yellow: input voltage below the threshold, converter off.
Red: over temperature, converter off.
Blue, quick flash: engine running, the converter will start after a preset delay.
Blue, slow flash: the converter is OFF and activation is blocked due to low input voltage.
Output status indication (LED) Green: converter off, battery voltage normal.
Yellow: converter off, battery voltage low.
Red: converter off, battery discharged or not connected.
Purple: converter on.
