Key Features
- Easily extend your content from laptops and mobile devices
- One-cable solution for audio visual, power, and touch signal transmission
- Flexible display setup work at any angle
- Compact size, light weight, and highly portable
- Sturdy and durable design
Overview

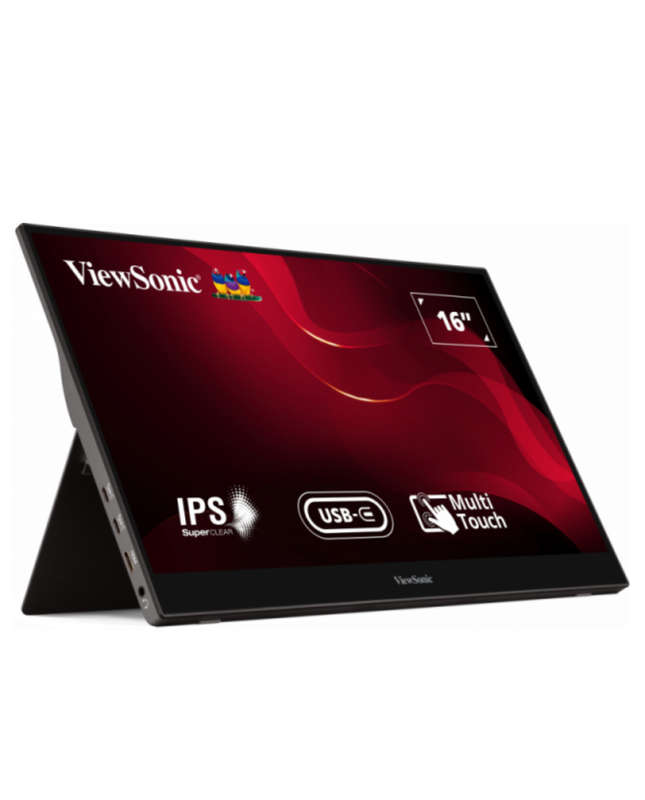

The ViewSonic TD1655 is a portable 16 Full HD touch monitor perfect for overcoming one-screen limitations outside the office.
Extend the screen from phones, tablets, or laptops for mobile work, one-on-one presentations or leisure entertainment.
The two universal USB Type C connectors provide a one-cable solution for audio visual, power, and touch signal transmission.
The adjustable wide stand and pivot-able display will support your working angles. With the anti-slip cover, metal case, aluminium stand, and 6H hardness screen, reliability is embodied in the design.
Display
Display Size (in.): 16
Viewable Area (in.): 15.6
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD
Static Contrast Ratio: 800:1 (typ)
Dynamic Contrast Ratio: 50M: 1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colours: 262K
Colour Space Support: 6 bit true
Aspect Ratio: 16:09
Response Time (Typical GTG): 6.5ms
Response Time (GTG w/OD): 6.599ms
Response Time (Typical TR+Tf): 30ms
Viewing Angles: 178º horizontal, 178º vertical, CR>5; 170º horizontal, 170º vertical, CR>10
Backlight Life (Hours): 15000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Blue Light Filter: Yes
Colour Gamut: NTSC: 45% size (Typ), sRGB: 64% size (Typ)
Pixel Size: 0.179 mm (H) x 0.179 mm (V)
Touch Screen: Projected Capacitive, 10-point multi-touch
Surface Treatment: Glossy w/ anti-finger print, Hard Coating (?6H)
Cover Glass Thickness: 0.8mm
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10 certified; macOS tested
Mac® Resolution (min): 1920x1080
Connector
USB 3.1 Type C: 2
3.5mm Audio Out: 1
Mini HDMI: 1
Power in: External power adapter
Audio
Internal Speakers: 0.8Watts x2
Power
Eco Mode (Conserve): 6W
Eco Mode (optimized): 6.9W
Consumption (typical): 8W
Consumption (max): 8.3W
Voltage: AC 100-240V, 50/60 Hz
Stand-by: 0.5W
Power Supply: External
Controls
Physical Controls: Up, Right, Down, Left, Power
On Screen Display: Input Select, Audio Adjust, ViewMode, Colour Adjust, Manual Image Adjust, Setup Menu
Operating conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Input signal
Frequency Horizontal: 15 ~ 82 KHz
Frequency Vertical: 50 ~ 75Hz
Video input
Digital Sync: TMDS - mini HDMI (v1.4), Micro-Packet - Type C
Ergonomics
Tilt (Forward/Back): 20º / 60º
Whats in the Box
TD1655: 1
Mini HDMI to HDMI Cable: 1
USB Type-C Cable: 1
USB Type-C to Type-A 3.2 Gen1 Cable: 1
AC/DC Adapter: 1
Quick Start Guide: 1
Protect cover: 1
Clean cloth: 1
Passive touch pen: 1
Anti-scratch Touch Screen
Built-in 6H hardness screen, its resistant to surface damage, even if accidently scratched by your keys.

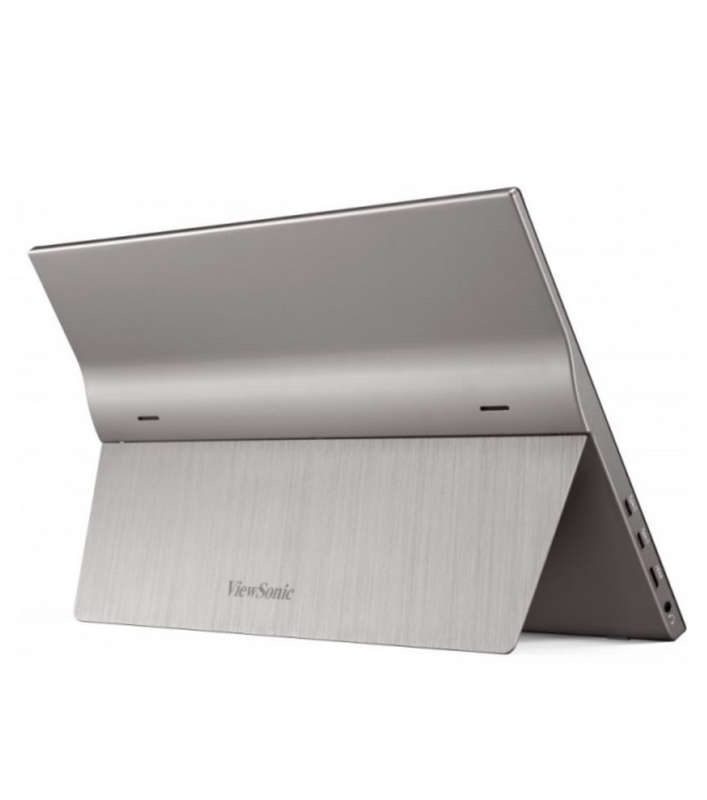

Robust One-piece Design
With the metal case and endurable hinge, the fold-able aluminium stand makes the whole monitor a one-piece design. Metal Case & Aluminium Stand.

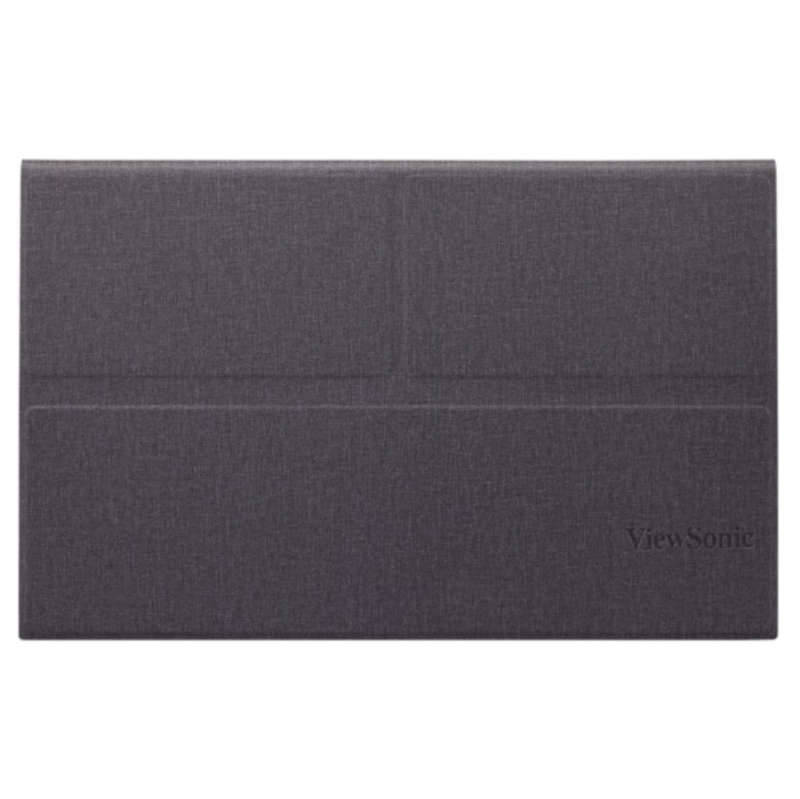

Magnetic Cover and Mat
Avoid damage during carry, the detachable magnetic cover is easy to put on. Used as a mat, its anti-slip surface prevents the monitor from sliding away. Anti-slip Cover
Supports Vertical Layout
Besides common horizontal content, you may setup a pivot screen for table-reviewing, programming, photo-editing, gaming, etc. Pivot-able Display

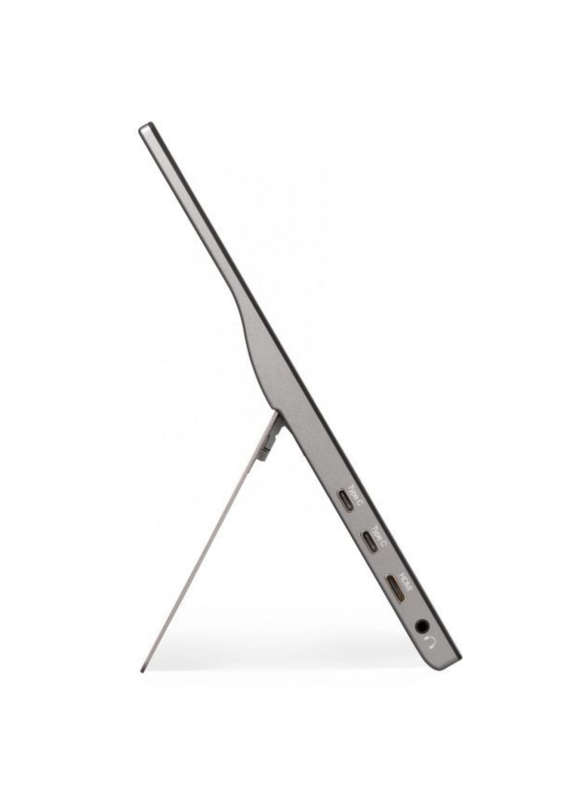

Working in Your Preferred Angles
View in a wide range of angles by adjusting the attached stand. Up to 60 Degree Tilt
Portable Size for Work & Fun
Larger, 16 display than most common laptops and weighing less than 1 kg. It perfectly outfits your mobile workplace, and can be used for multimedia play when taking a break.
Touch Feedback Control

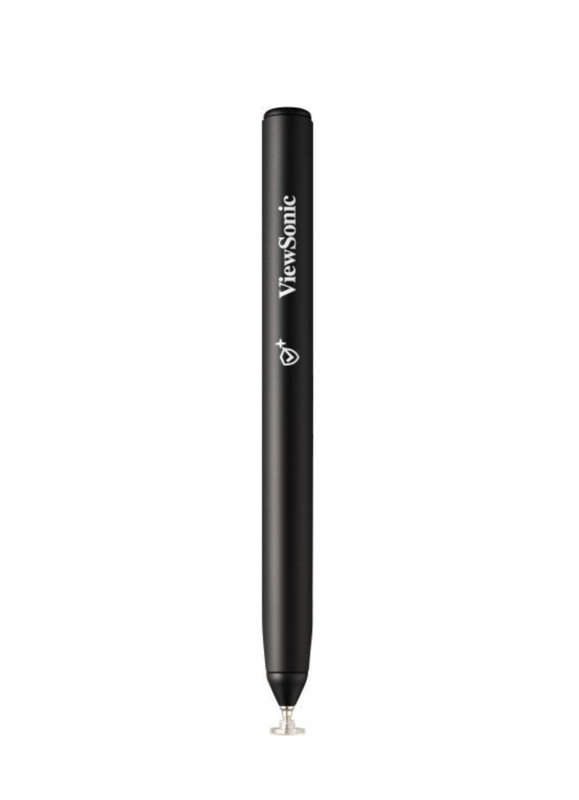

Control in a large screen with touch gives more intuitive and efficient reactions. The attached magnetic touch pen allows you to draw and write notes without leaving fingerprints. One-point touch support for MacOS; does not apply to iOS & iPadOS devices. 10-Point Fingertip/Touch Pen.
Flexible Setup with 2 x USB Type C
Extend your screen anywhere with your built-in USB Type C laptop, tablet, or phone. It supports Windows, Android, Chrome, MacOS, and iOS.
What's in the box
TD1655: 1
Mini HDMI to HDMI Cable: 1
USB Type-C Cable: 1
USB Type-C to Type-A 3.2 Gen1 Cable: 1
AC/DC Adapter: 1
Quick Start Guide: 1
Protect cover: 1
Clean cloth: 1
Passive touch pen: 1
