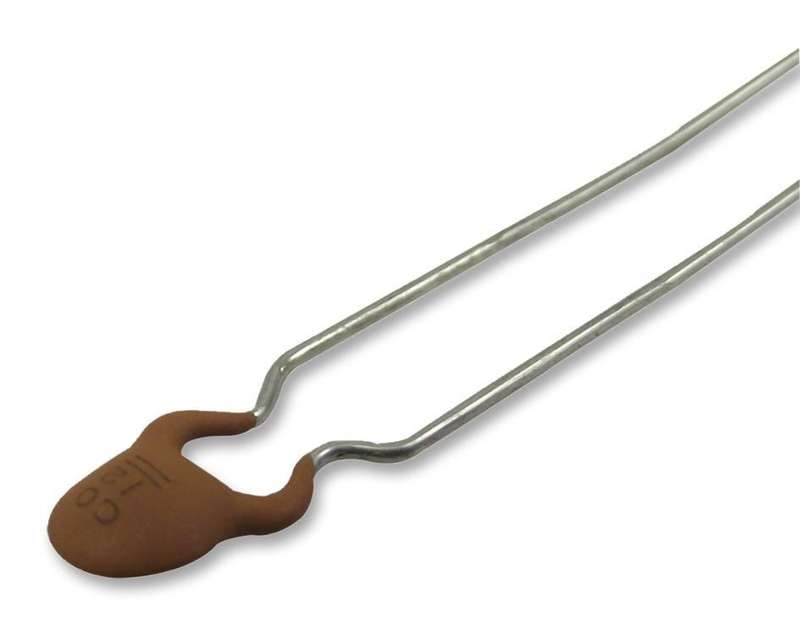

Vishay (D221G39U2JH63J5R) Ceramic Disc Capacitor, 220 pF, 100 V, ± 2%

Ceramic Disc Capacitor, 220 pF, 100 V, ± 2%, N750, 5 mm, Radial LeadedProduct Information:Capacitance: 220pFVoltage(DC): 100VCapacitance Tolerance: ± 2%Dielectric Characteristic: N750Lead Spacing: 5mmCapacitor Terminals: Radial LeadedProduct Range: DSeries Name: DOperating Temperature Min: -55°COperating Temperature Max: 125°CProduct OverviewThe Vishay D series are class 1, radial leaded, ceramic single layer DC disccapacitors with N750 dielectric material. The capacitance value ranges from6.8pF to 330pF. Typical application includes temperature compensation,bypassing, coupling and decoupling.High capacitance with small sizeHigh reliabilityCrimp and straight lead stylesRated voltage of 100VDC and 500VDCAvailable in selective tolerance valuesOperating temperature range from -55°C to 125°CCompliant to EIA 198, IEC 60384-8 and IEC 60384-9 standardsApplicationsIndustrial, Power Management, Consumer Electronics, Portable Devices
