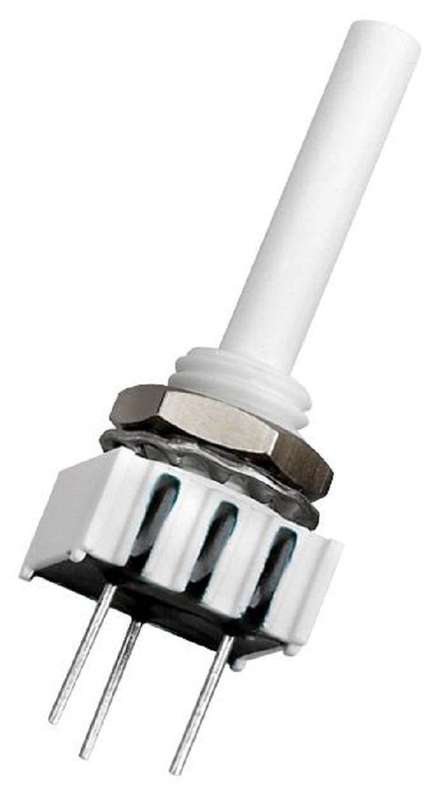

Vishay (P10XXAI203KB30.) Rotary Potentiometer, Cermet, 20 kohm, 1 Turns

Vishay (P10XXAI203KB30.) Rotary Potentiometer, Cermet, 20 kohm, 1 Turns

New 200 available
R775.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1714013
Bob Shop ID
645115909
Rotary Potentiometer, Cermet, 20 kohm, 1 Turns, Linear, 500 mW, ± 10%, P10XXProduct InformationTrack Resistance: 20kohmNo. of Turns: 1TurnsTrack Taper: LinearPower Rating: 500mWResistance Tolerance: ± 10%Product Range: P10XXPotentiometer Mounting: Panel MountShaft Diameter: 3mmNo. of Gangs: 1Adjustment Type: Screwdriver SlotShaft Length: 20mmTemperature Coefficient: ± 150ppm/°CPotentiometer Type: MiniatureResistor Technology: CermetPotentiometer Terminals: PC PinResistor Case / Package: -Product Length: 25.2mmProduct Width: 9.7mmProduct Height: 9.6mmOperating Temperature Min: -55°COperating Temperature Max: 125°CProduct OverviewThe P10XXAI203KB30 is a 20kR 1500mW 1-turn 1-gang panel-mounting RotaryPotentiometer with fully sealed cermet element, plastic housing and shaft,screwdriver slot adjustment and linear track taper. P10 panel potentiometercombines the very good setting stability with a mechanical life of 10000 cycles.Industrial gradeMiniature compact-55 to 125°C Operating temperature rangeIP67 Protection rating
Add to cart
